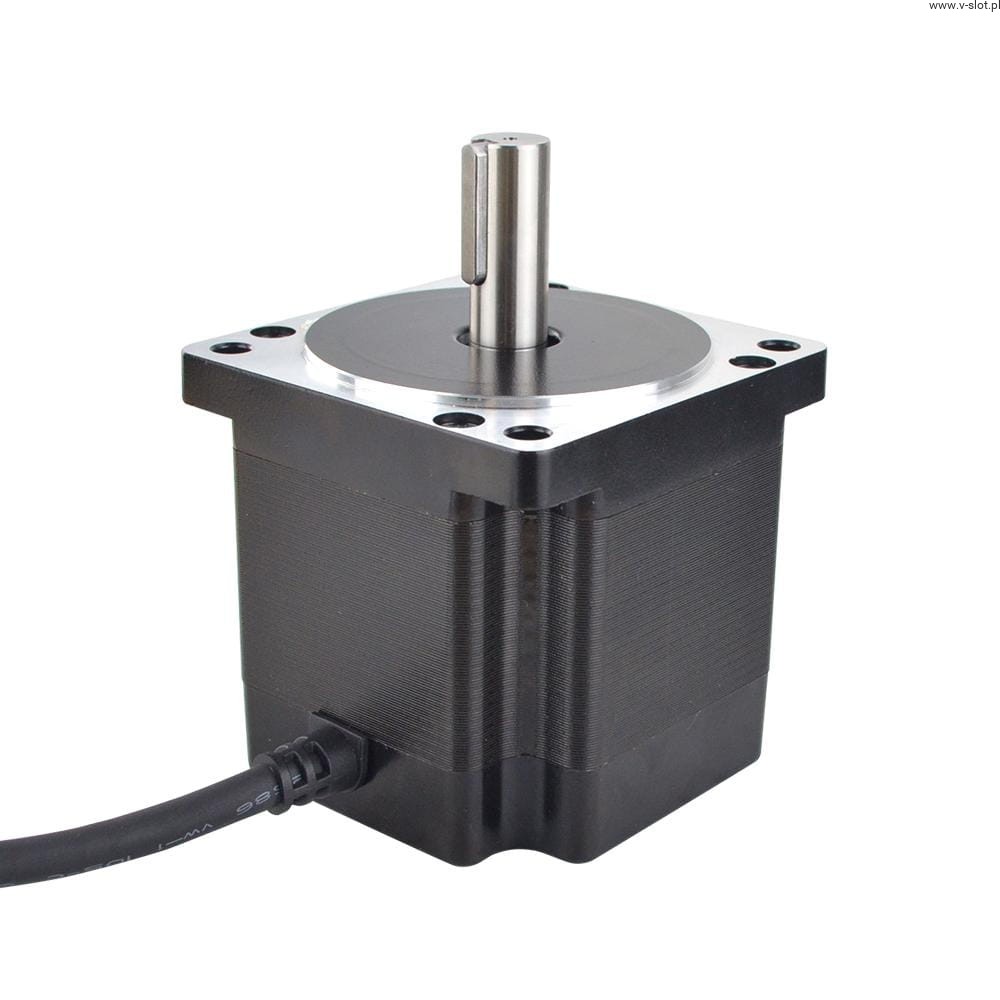

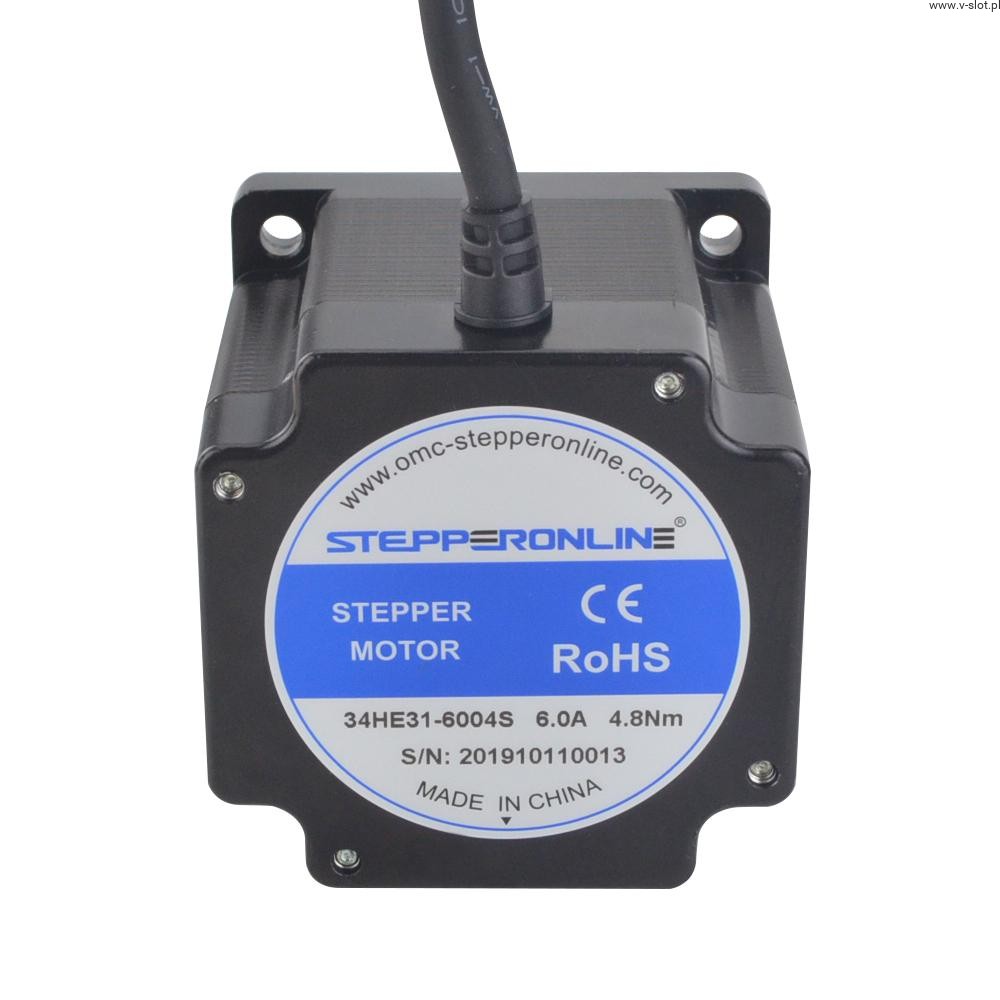

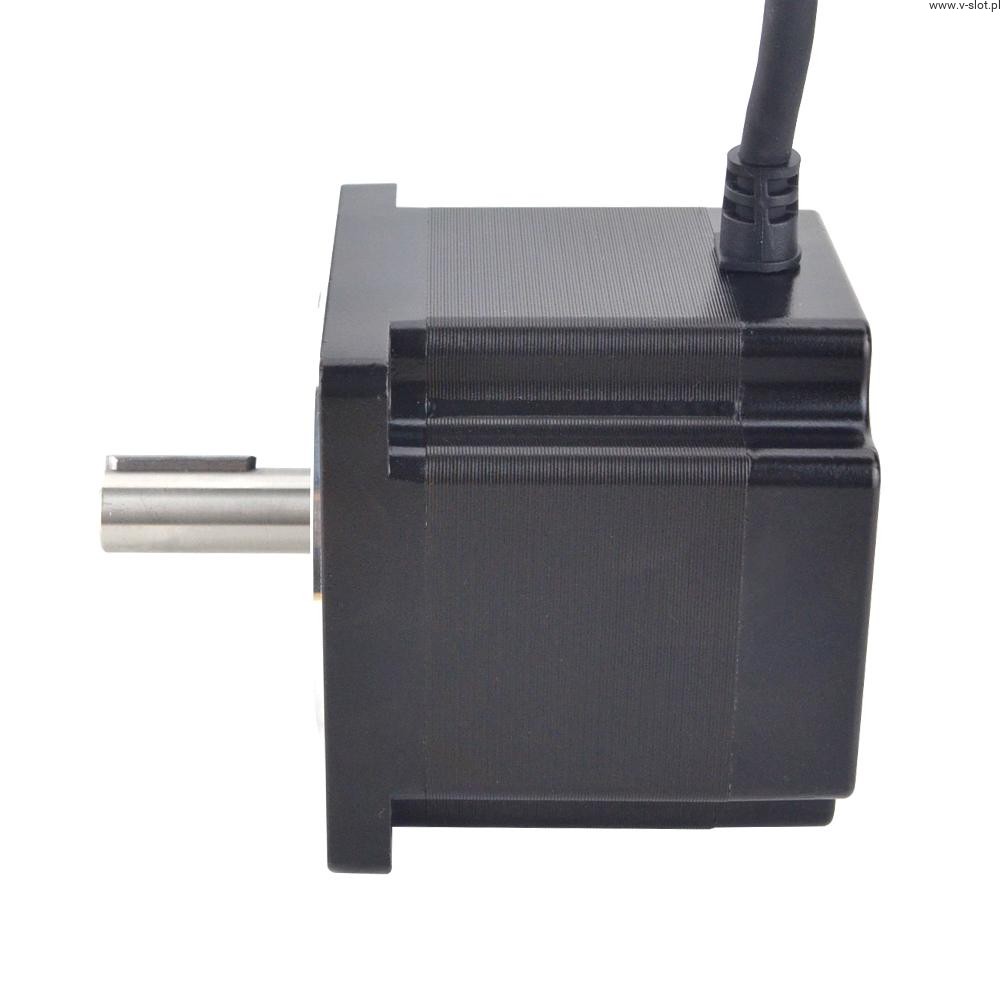

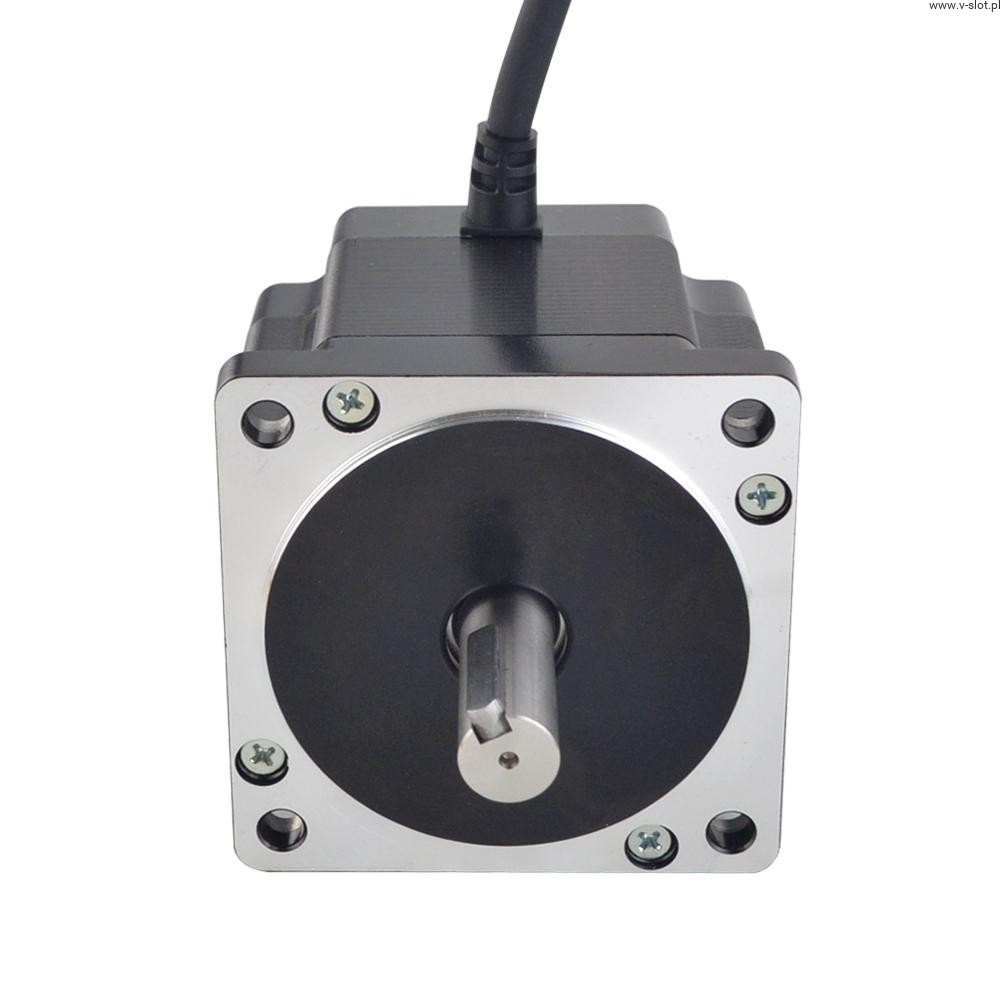

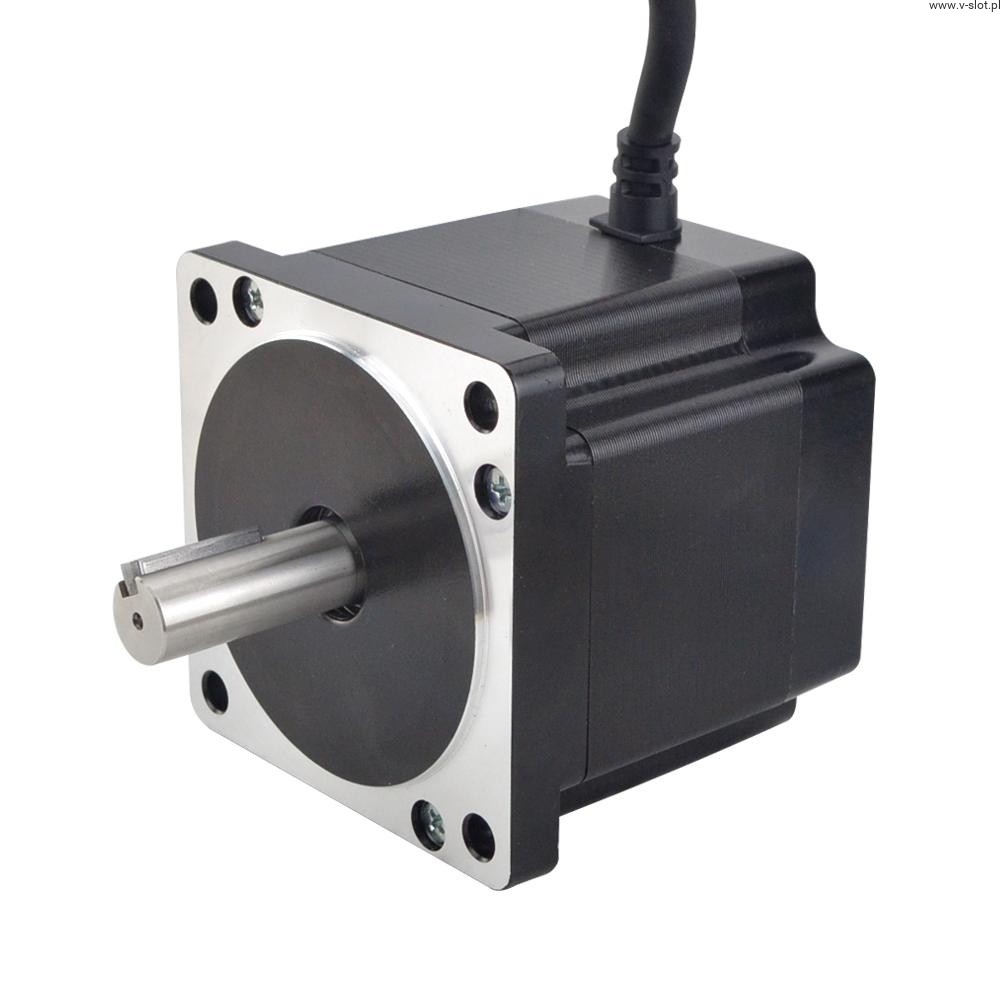

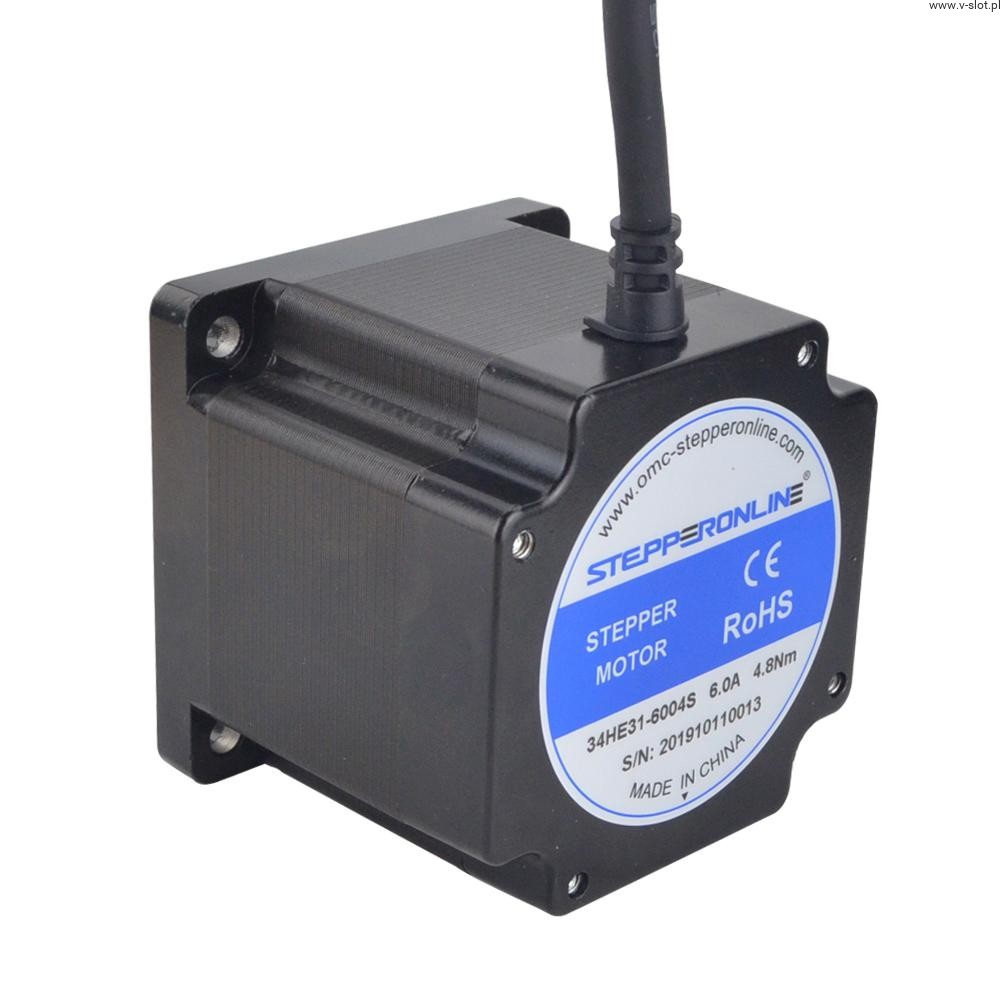

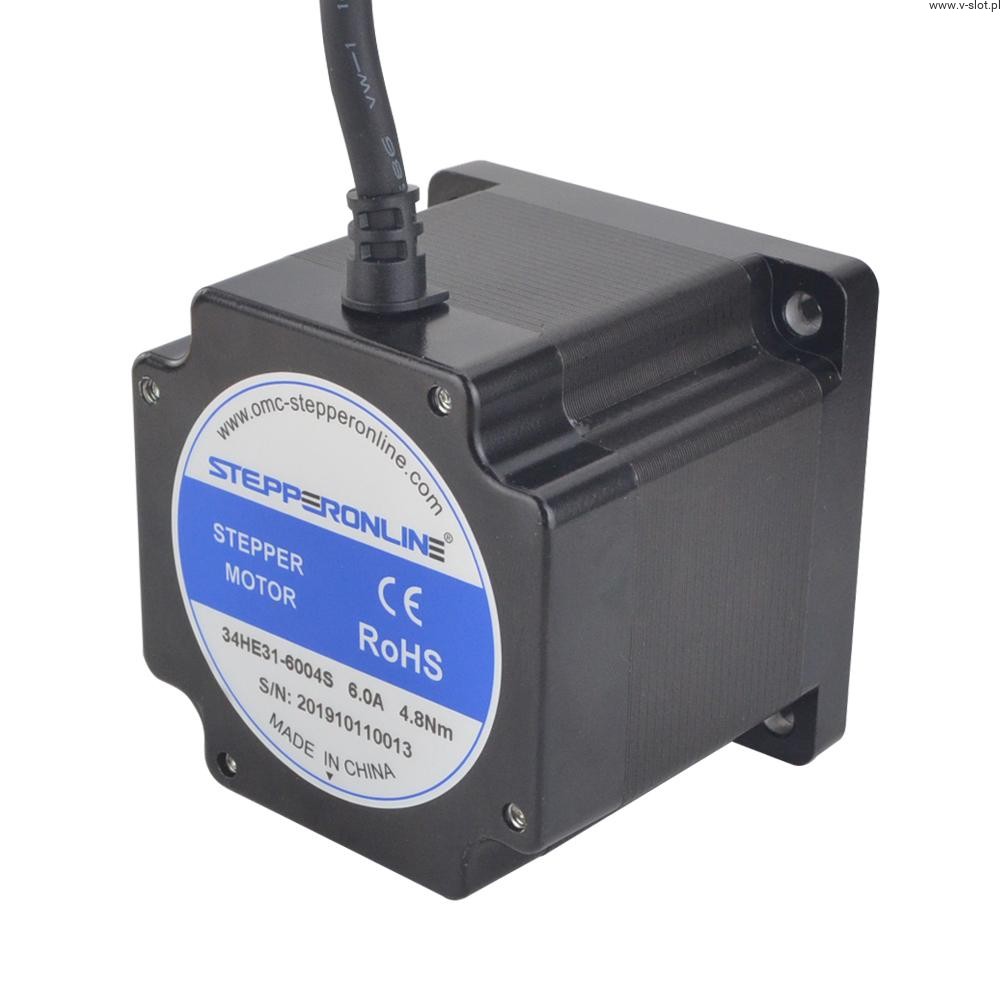

Stepper motor NEMA 34 1,8º 4,8Nm - 680 OZ
Stepper motor NEMA 34 1,8º 4,8Nm - 680 OZ
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€71.48
excl. 23% TAX, excl. shipping costs
product unavailable
Description
Stepper motor NEMA 34 1. 8º 4. 8Nm - 680 OZ
Electrical Specifications:
Inductance: 3. 5 mH
Phase resistance: 0. 42 ohm
Rated current: 6. 0 A
Step angle: 1. 8 degrees
Holding torque: 480 Ncm
Holding torque: 679. 87 oz. in
Physical Specifications:
Frame size: Nema 34 (86 mm x 86 mm)
Body length: 80 mm
Single Shaft/Double Shaft: Single Shaft
Output shaft type: wedge-shaped
Shaft diameter: 14 mm
Shaft length: 37 mm
Number of wires: 4
Cable length: 500 mm
Weight: 2300 g
Connection:
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
