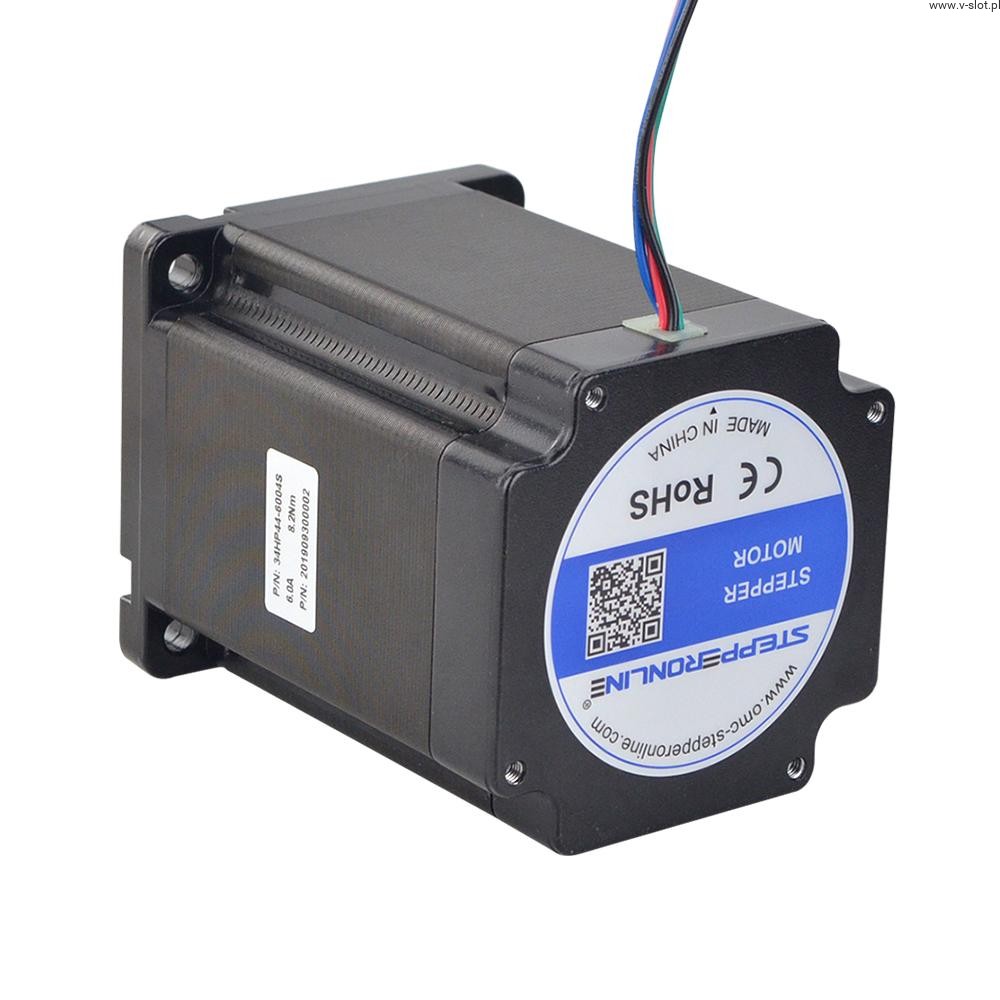

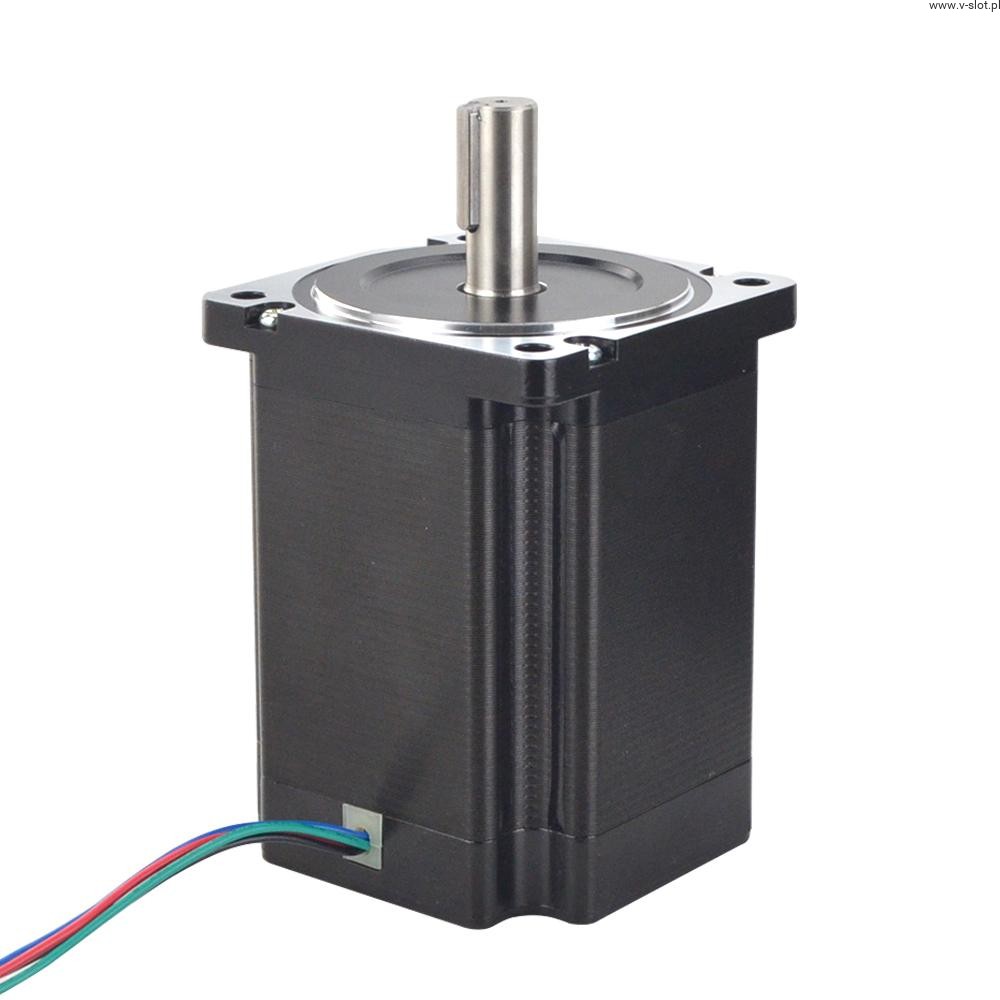

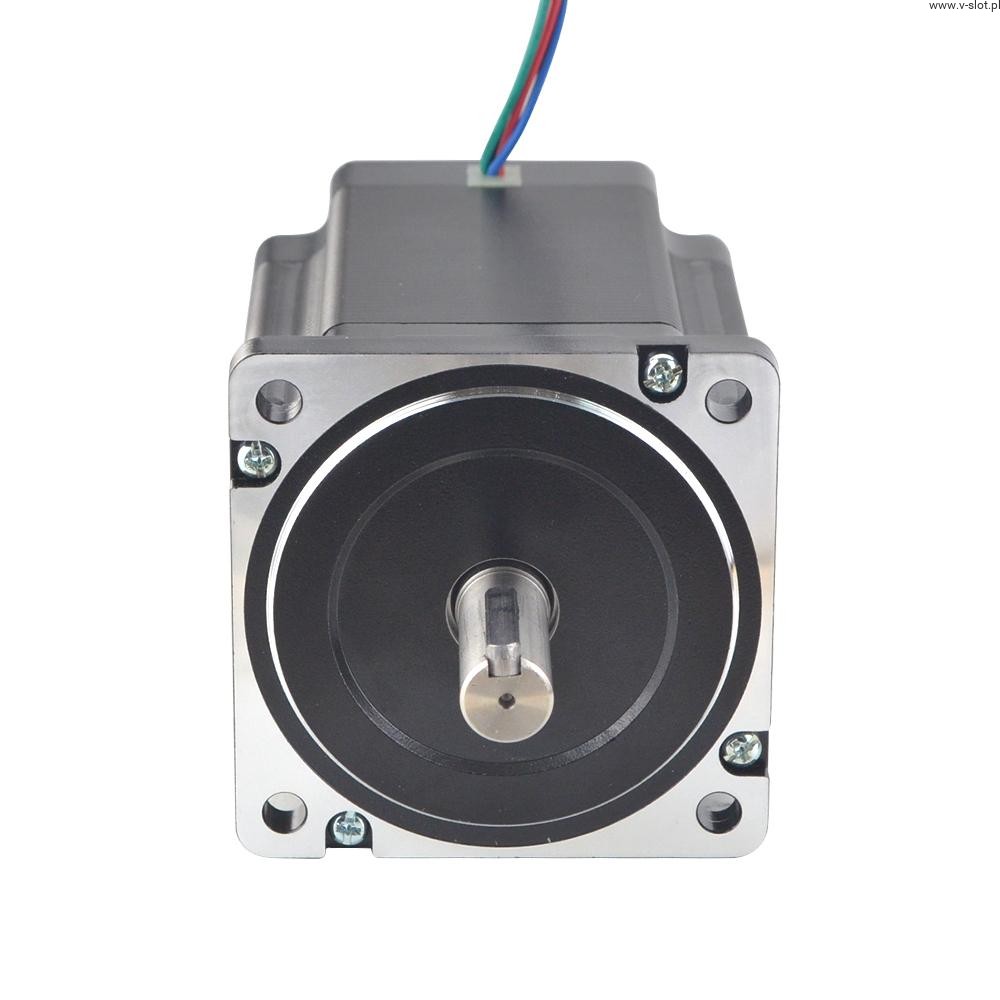

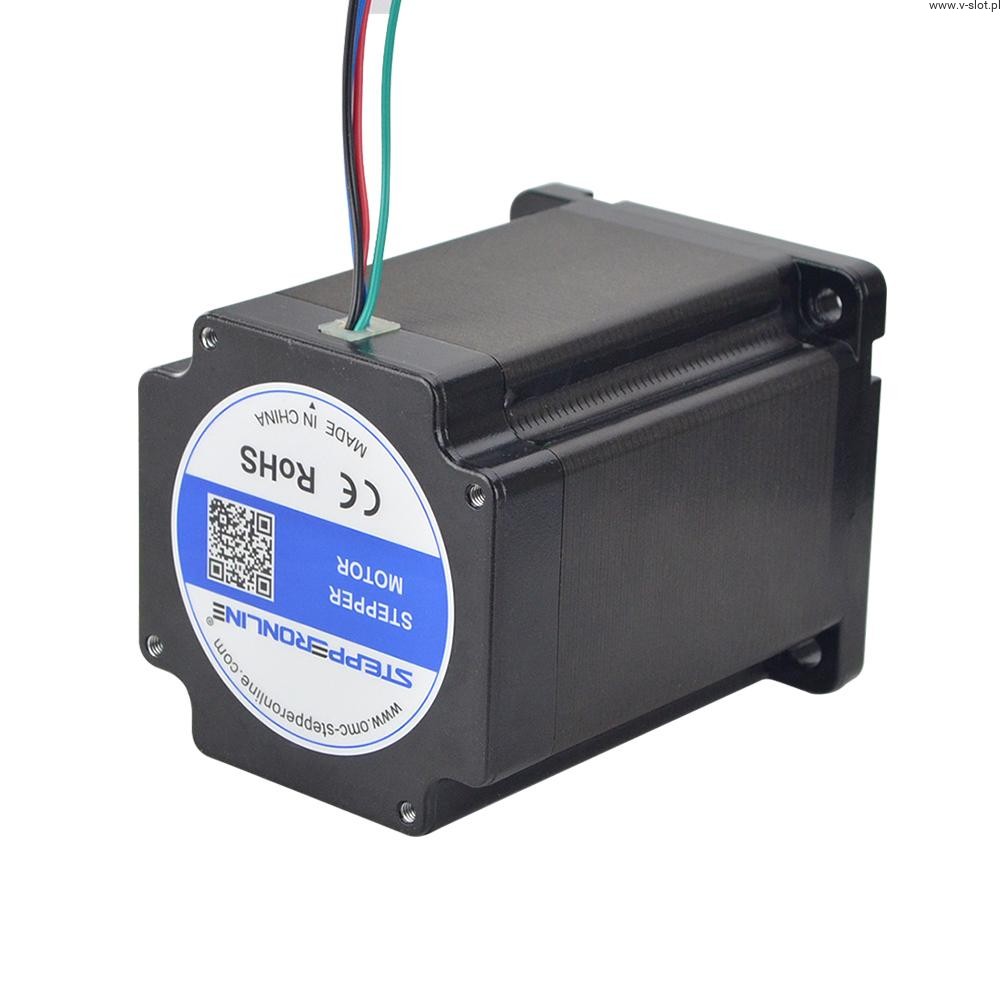

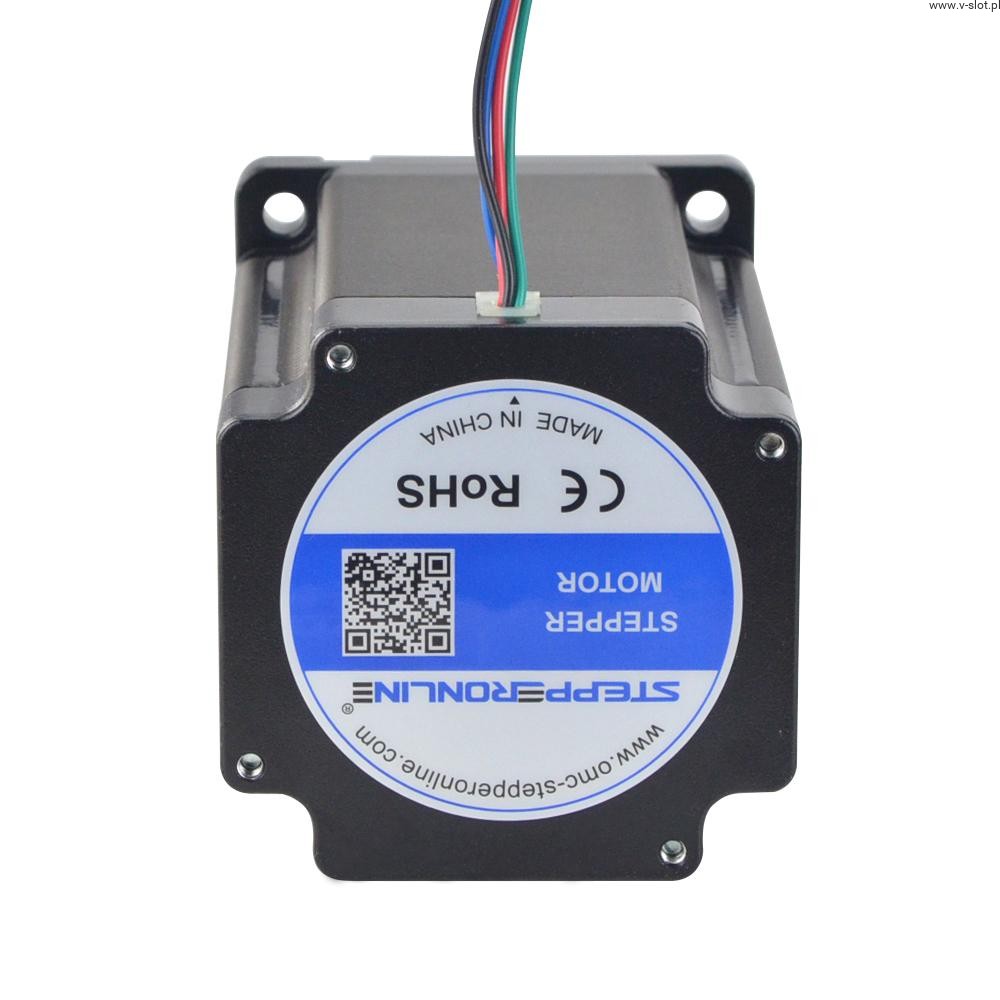

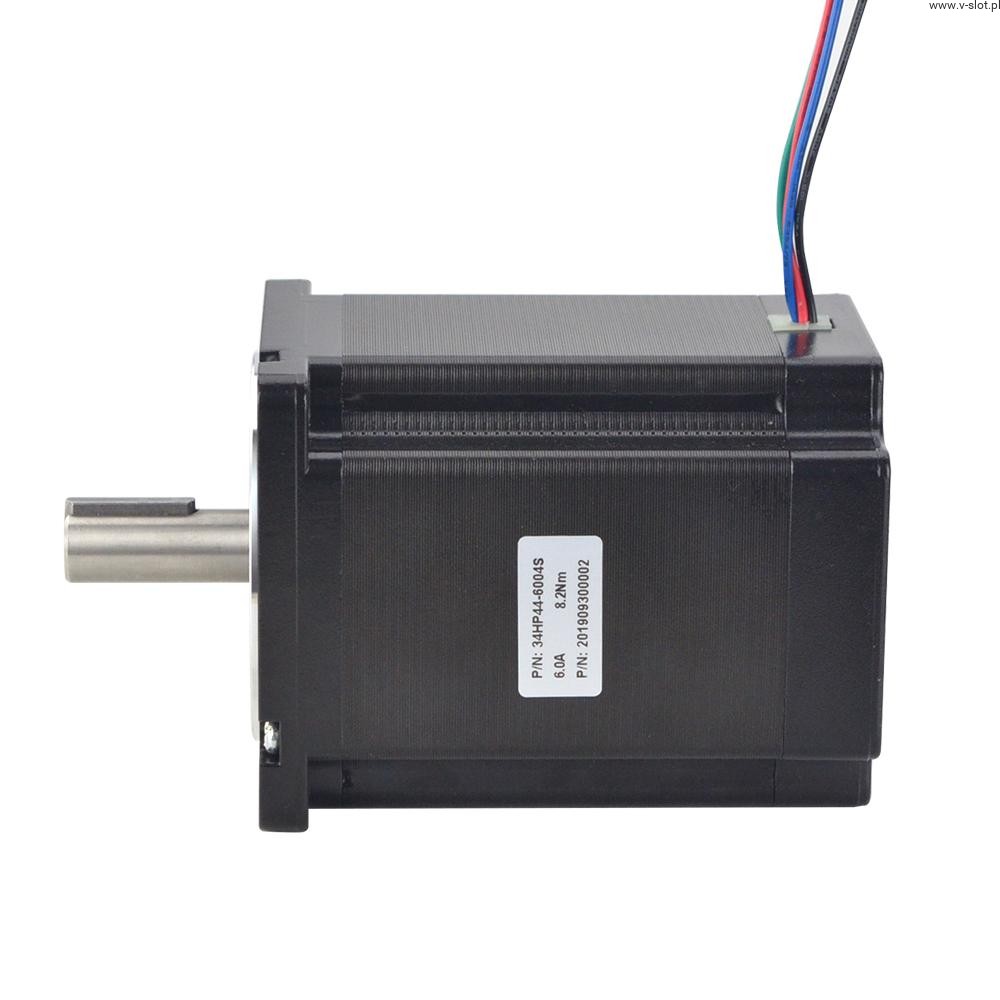

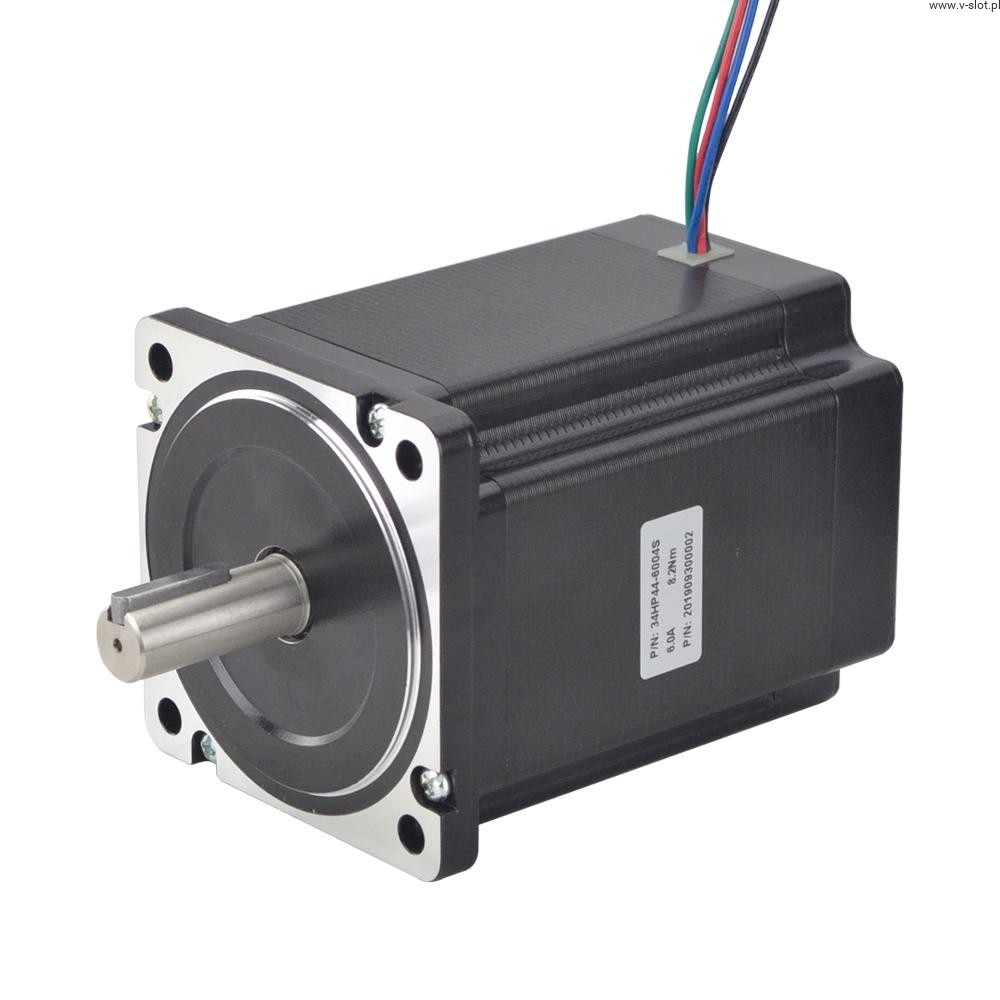

Stepper motor NEMA 34 1,8º 8,2Nm - 1162 OZ
Stepper motor NEMA 34 1,8º 8,2Nm - 1162 OZ
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€164.45
excl. 23% TAX, excl. shipping costs
product unavailable
Description
Stepper motor NEMA 34 1,8º 8,2Nm-1162 OZ
Electrical Specifications:
Inductance: 5. 0 mH
Phase resistance: 0. 55 ohm
Rated current: 6. 0 A
Step angle: 1. 8 degrees
Holding torque: 820 Ncm
Holding torque: 1161. 45 oz. in
Physical Specifications:
Frame size: Nema 34 (86mmx86mm)
Body length: 112. 3 mm
Single Shaft/Double Shaft: Single Shaft
Output shaft type: wedge-shaped
Shaft diameter: 14 mm
Shaft length: 37 mm
Number of wires: 4
Cable length: 500 mm
Weight: 3700 g
Connection:
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
