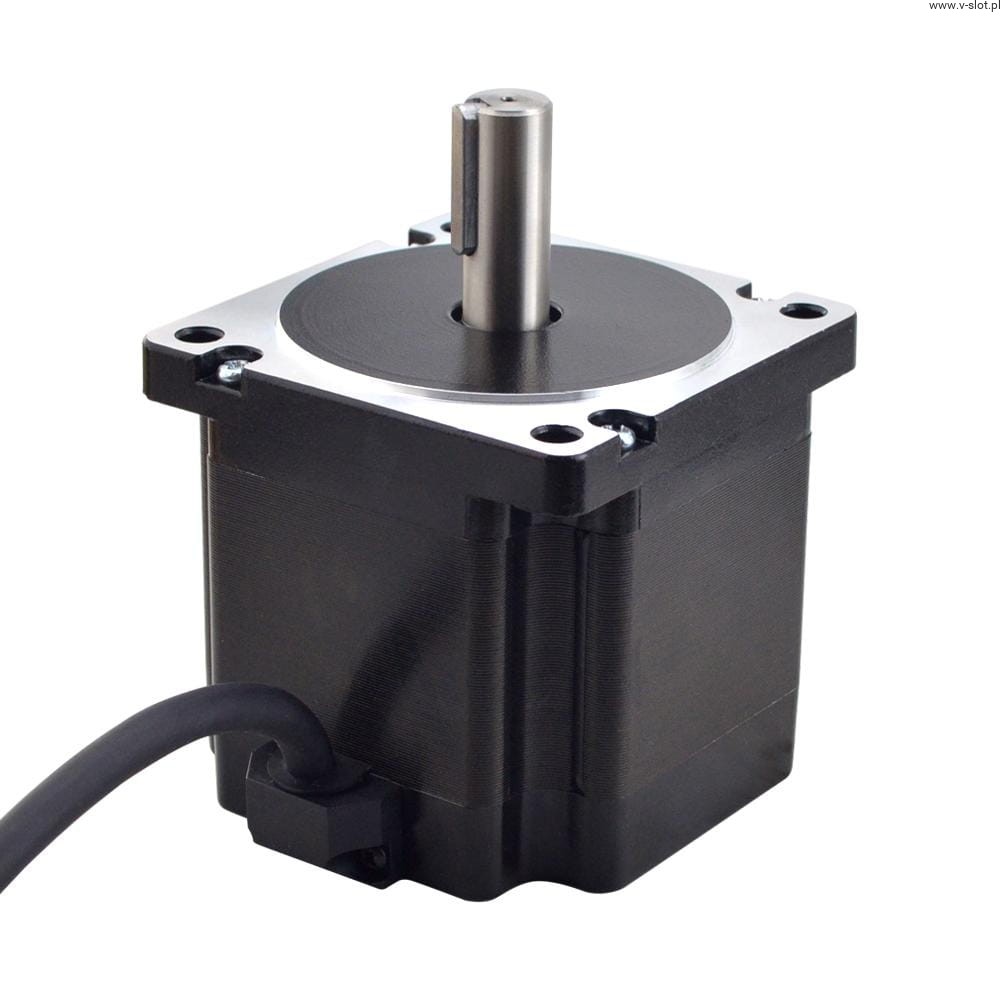

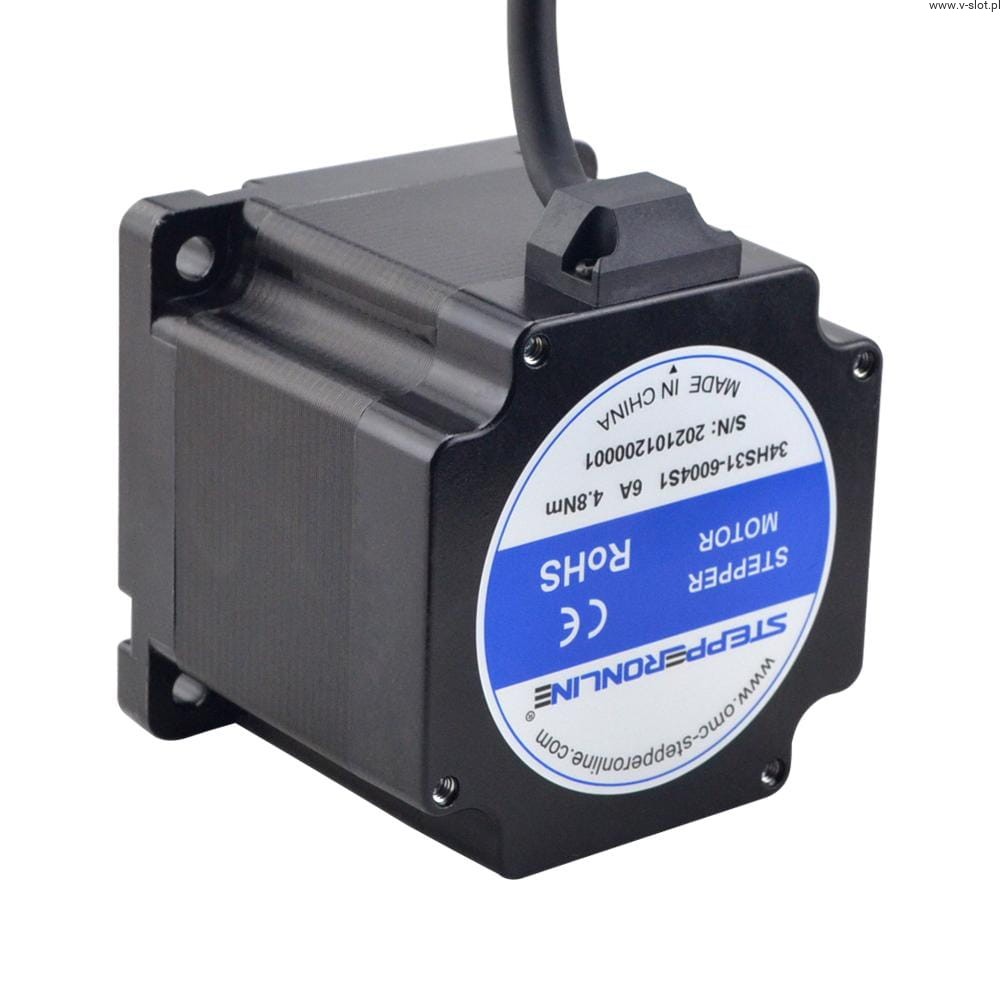

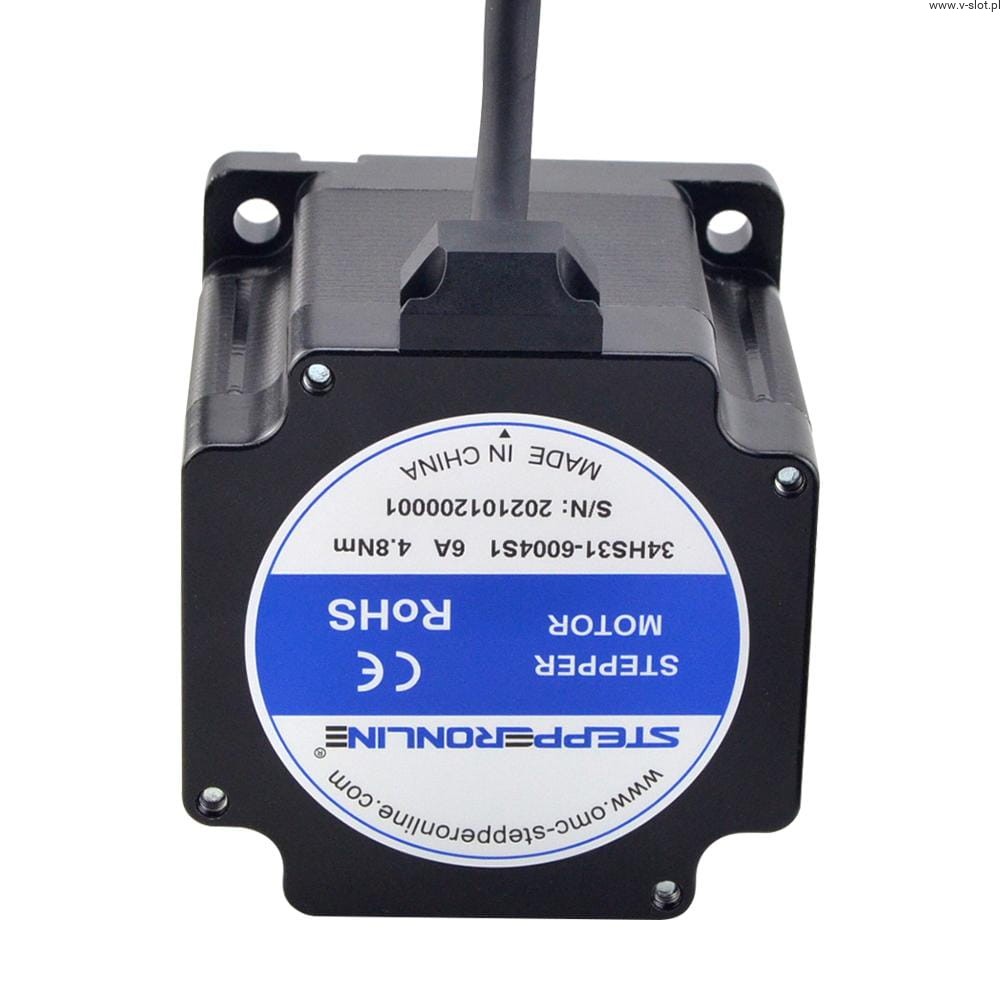

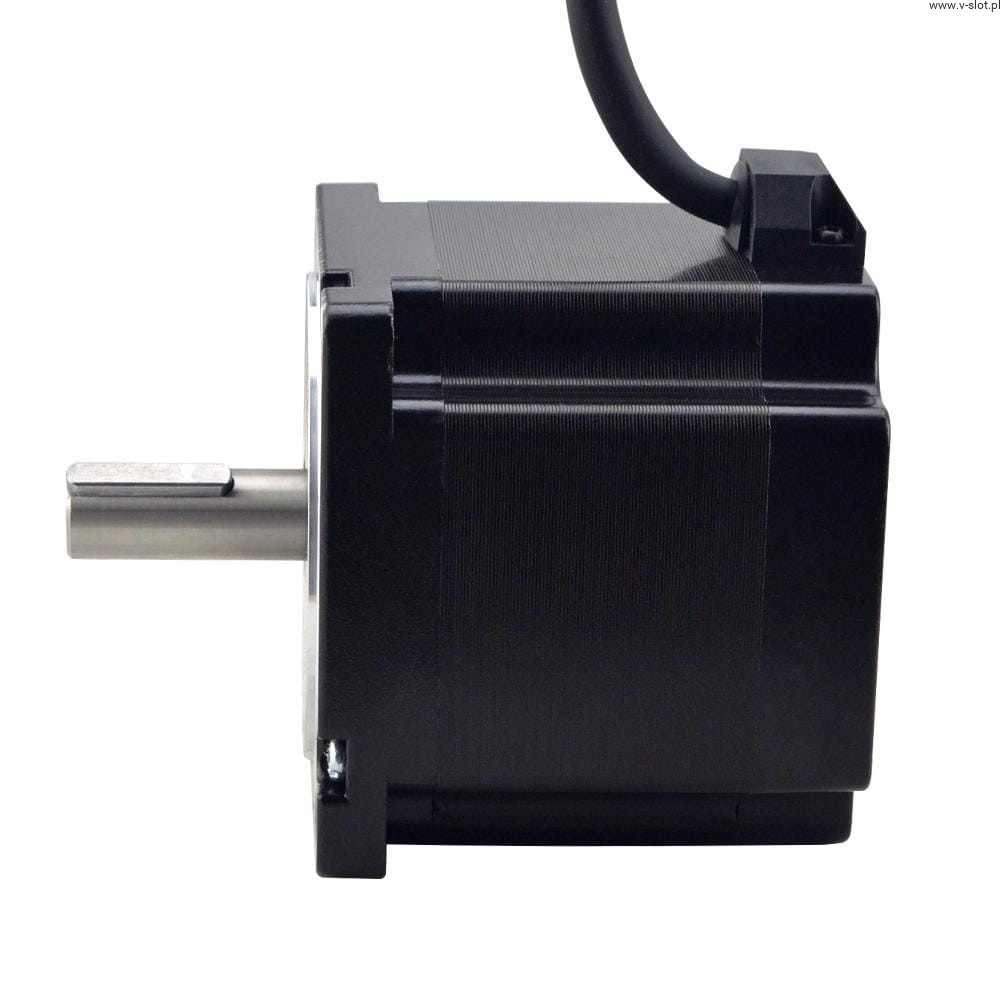

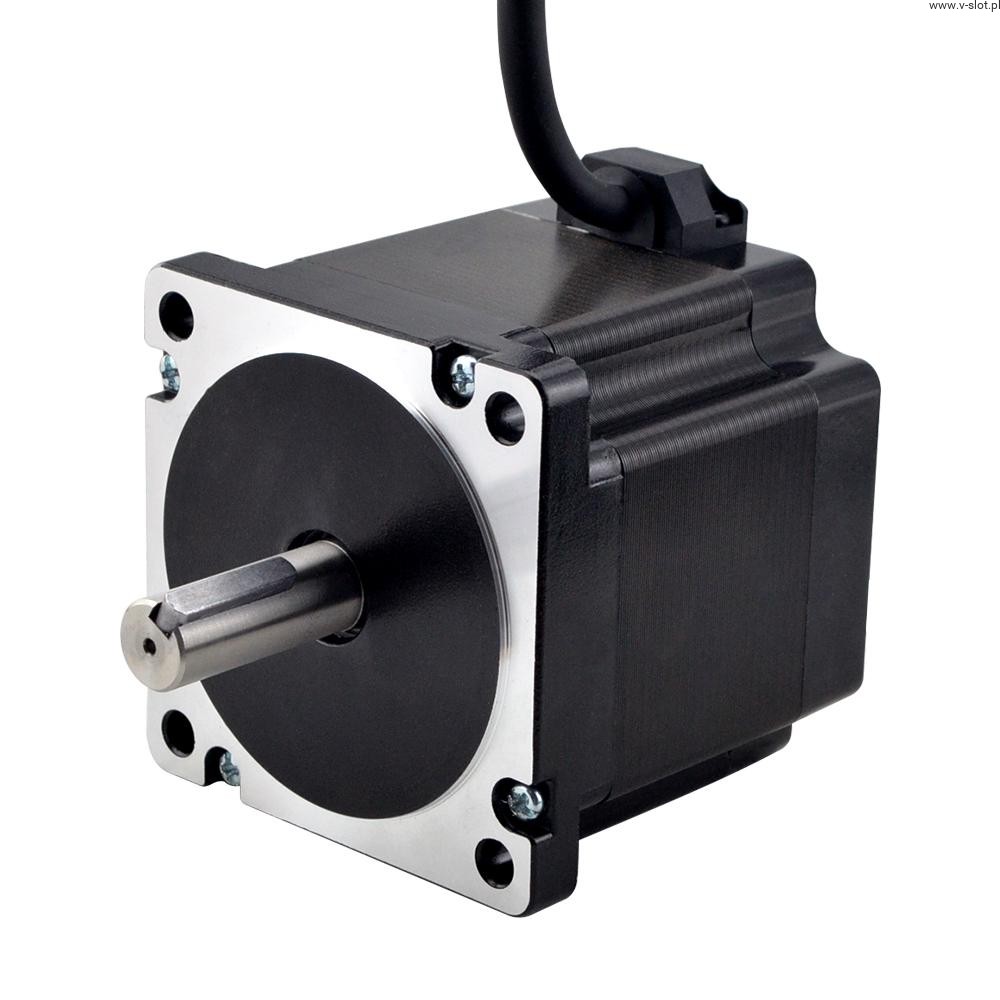

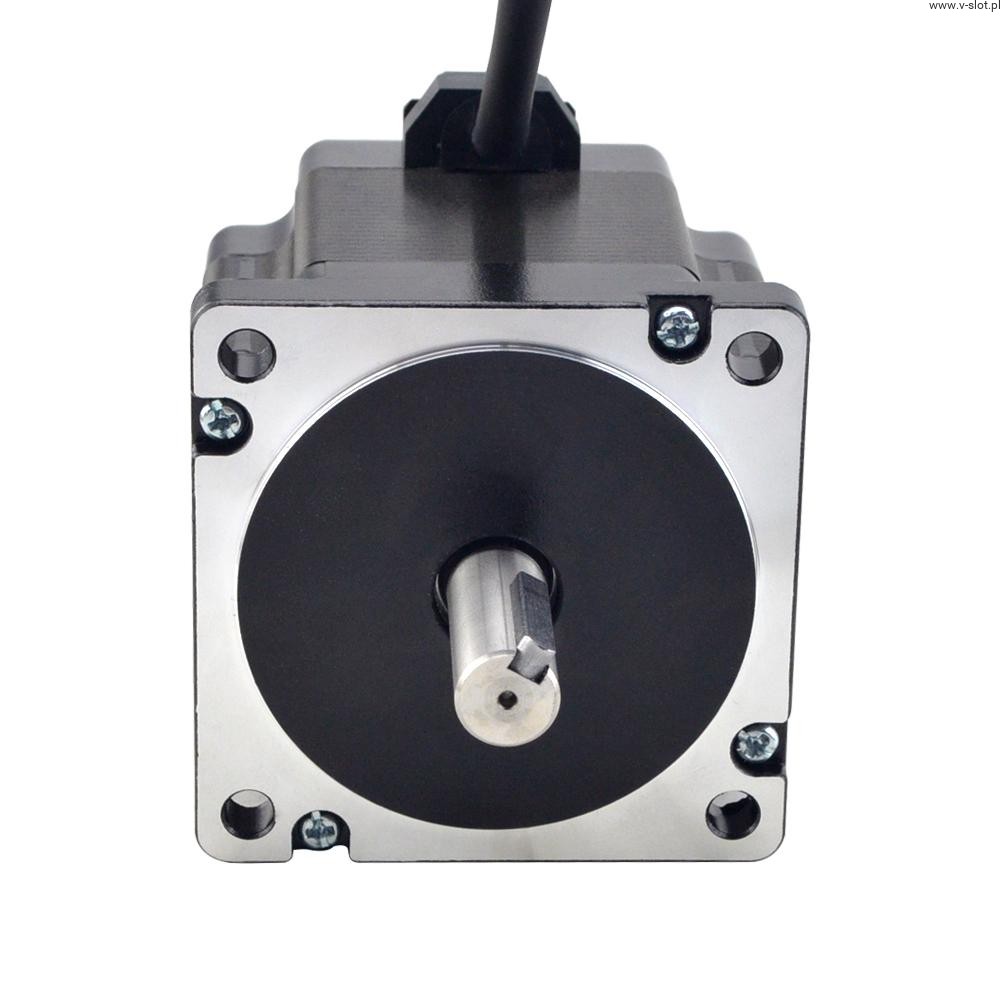

Stepper motor NEMA 34 1,8º 4,8Nm - 680 OZ
product unavailable
Description
Stepper motor NEMA 34 1,8º 4,8Nm - 680 OZ
Electrical Specifications:
Inductance: 3.5 mH
Phase resistance: 0.48 ohm
Rated current: 6.0 A
Step angle: 1.8 degrees
Holding torque: 480 Ncm
Holding Torque: 679.87 oz.in
Physical Specifications:
Frame size: Nema 34 (86mmx86mm)
Body length: 80 mm
Single Shaft/Double Shaft: Single Shaft
Output shaft type: wedge-shaped
Shaft diameter: 14 mm
Shaft length: 32 mm
Number of wires: 4
Cable length: 1000 mm
Weight: 2500 g
Connection:
A+
|
A-
|
B+
|
B-
|
Black
|
Green
|
Red
|
Blue
|
