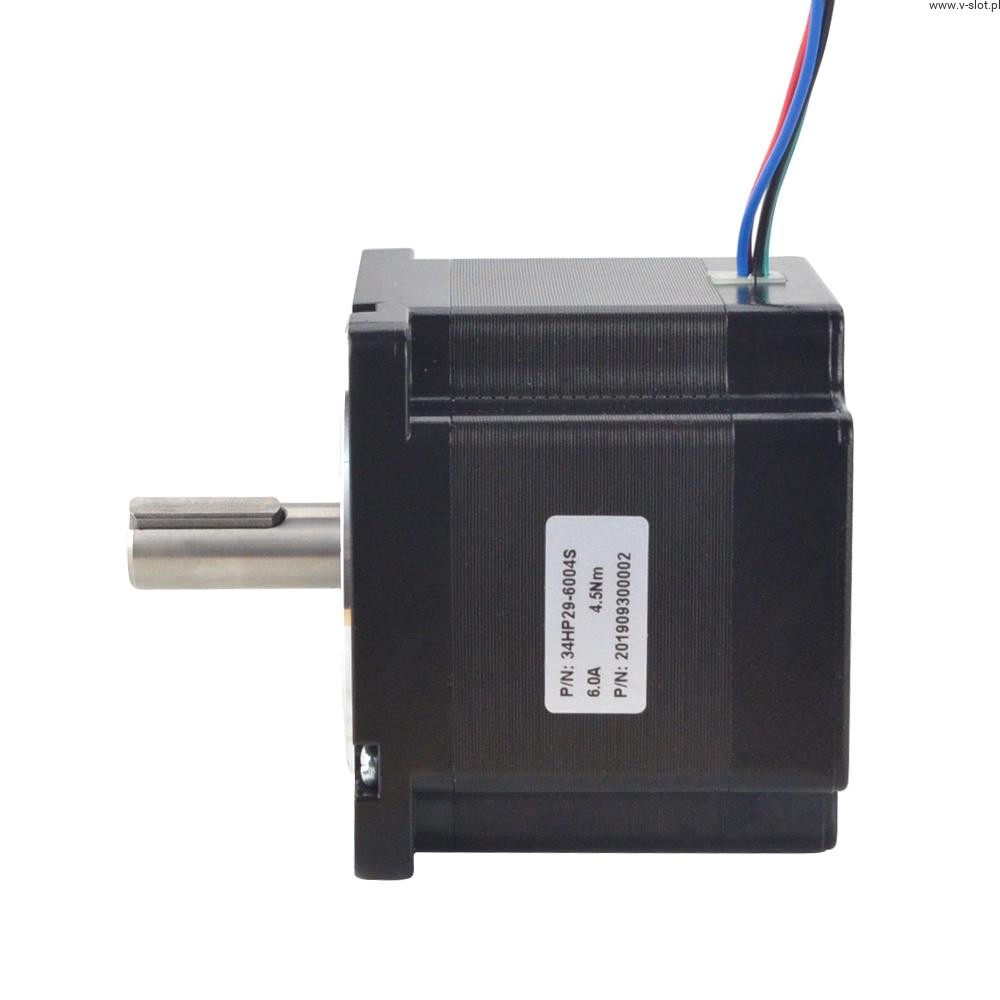

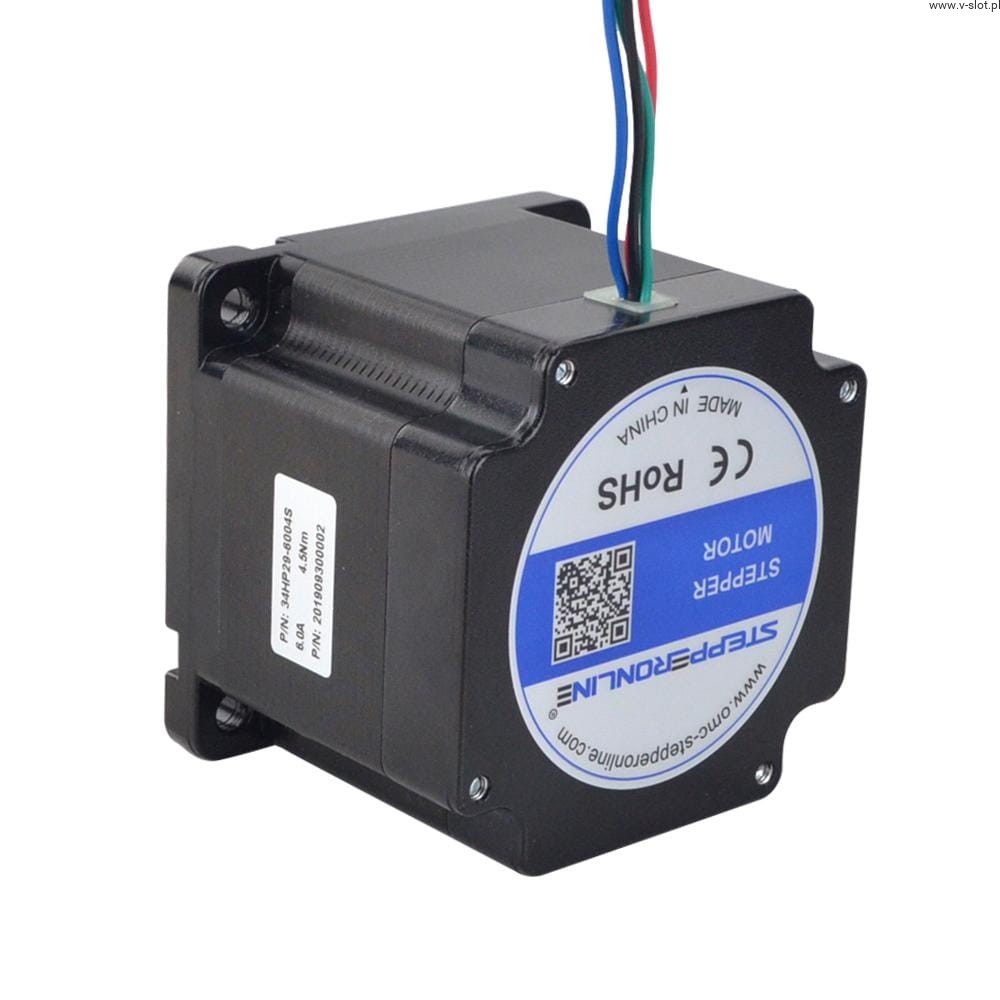

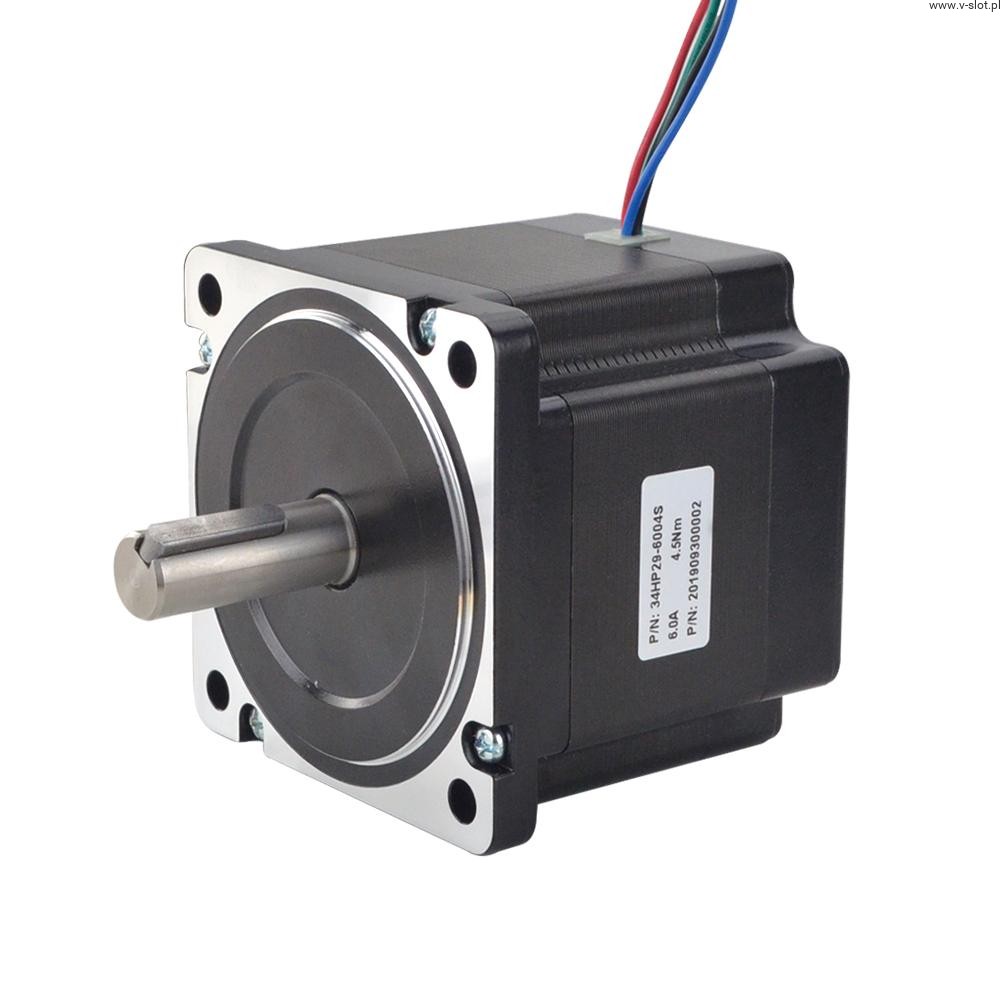

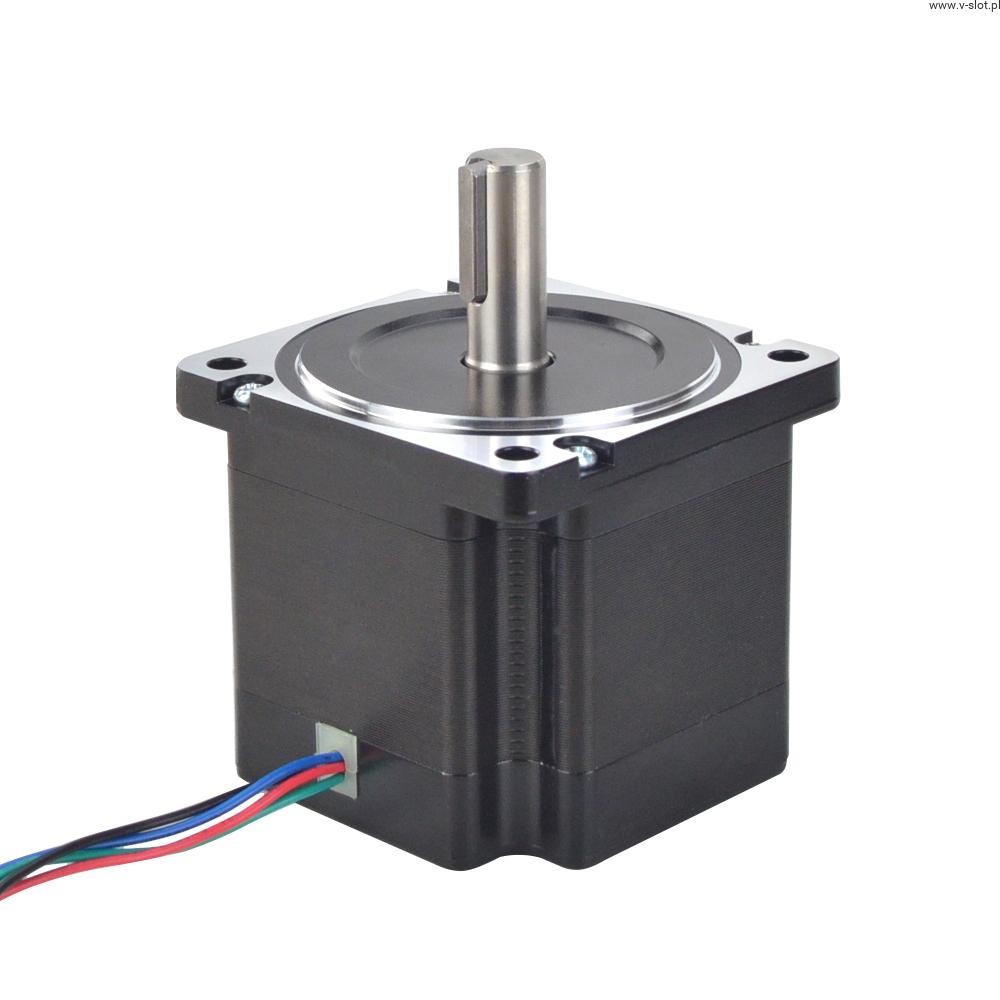

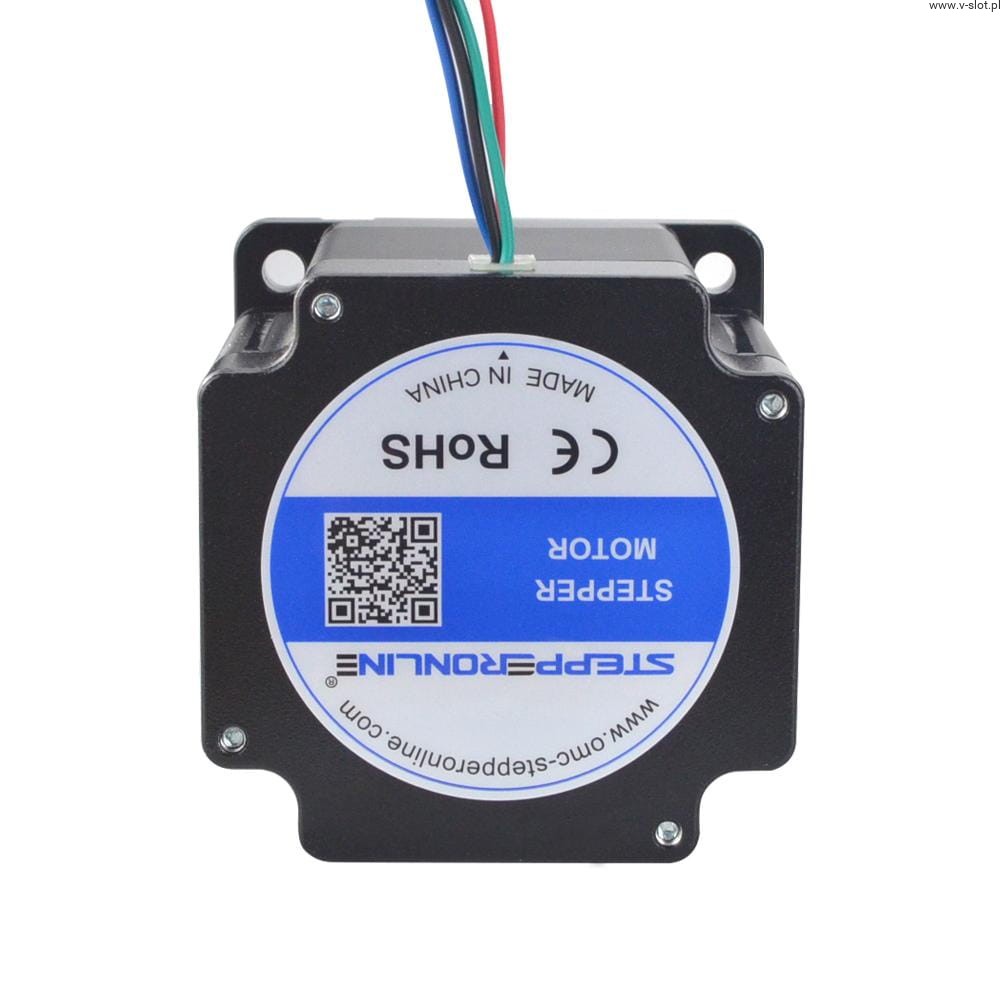

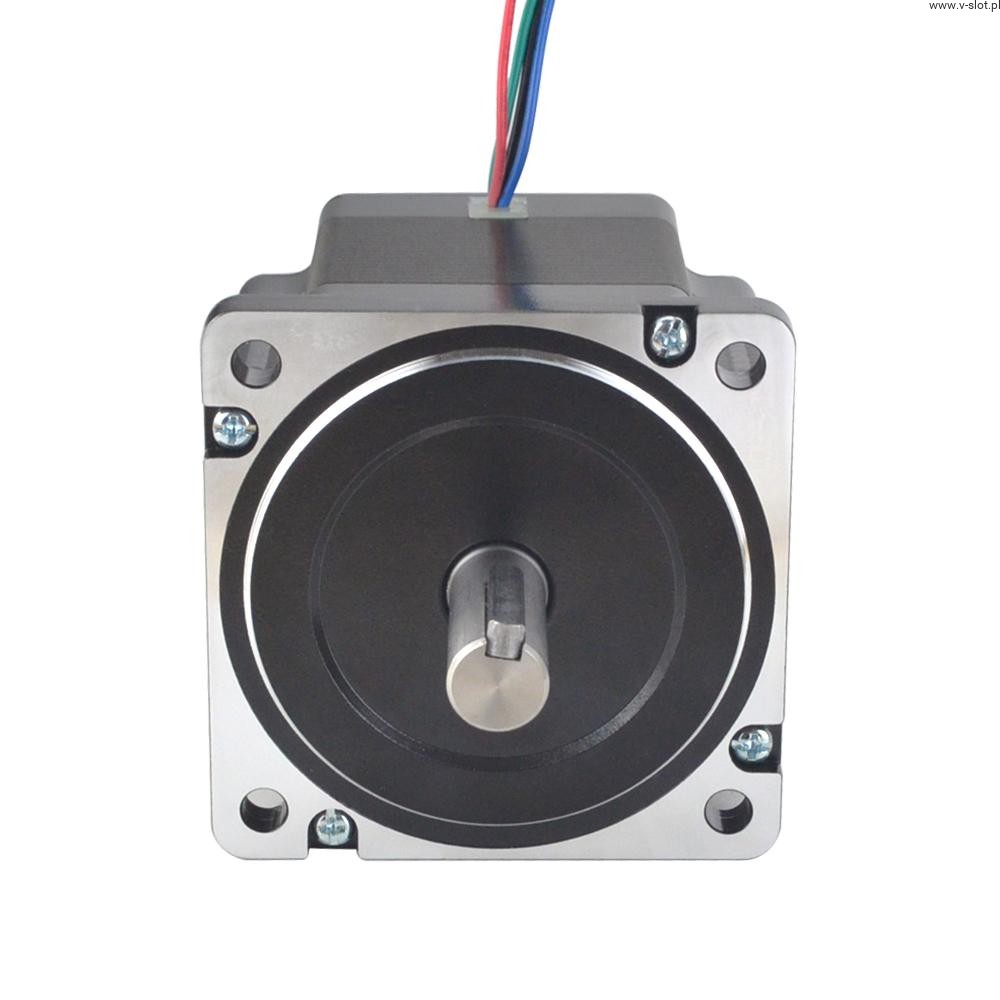

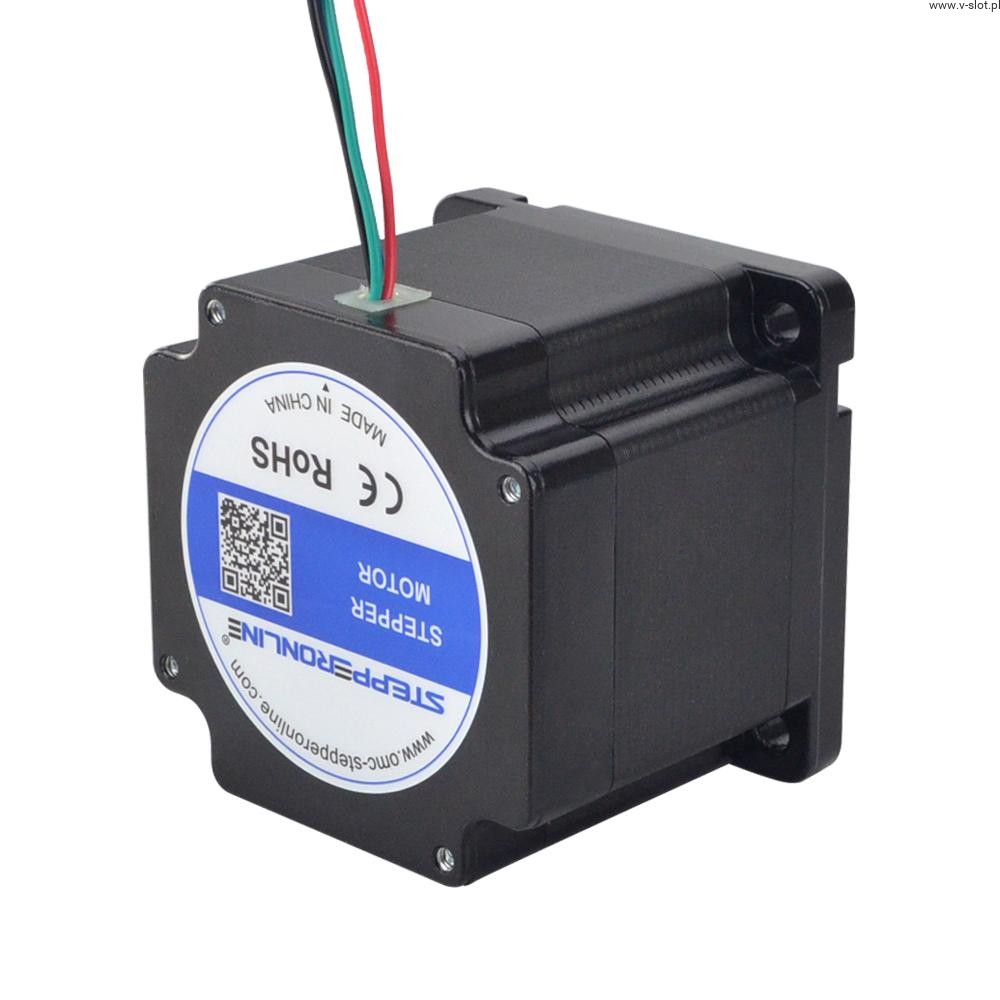

Stepper motor NEMA 34 1,8º 4,5Nm - 638 OZ
product unavailable
Description
Stepper motor NEMA 34 1,8º 4,5Nm-638 OZ
Electrical Specifications:
Inductance: 2. 5 mH
Phase resistance: 0. 34 ohm
Rated current: 6. 0 A
Step angle: 1. 8 degrees
Holding torque: 450 Ncm
Holding torque: 637. 38 oz. in
Physical Specifications:
Frame size: Nema 34 (86 mm x 86 mm)
Body length: 74 mm
Single Shaft/Double Shaft: Single Shaft
Output shaft type: wedge-shaped
Shaft diameter: 14 mm
Shaft length: 37 mm
Number of wires: 4
Cable length: 500 mm
Weight: 2150 g
Connection:
A+
|
A-
|
B+
|
B-
|
Black
|
Green
|
Red
|
Blue
|
