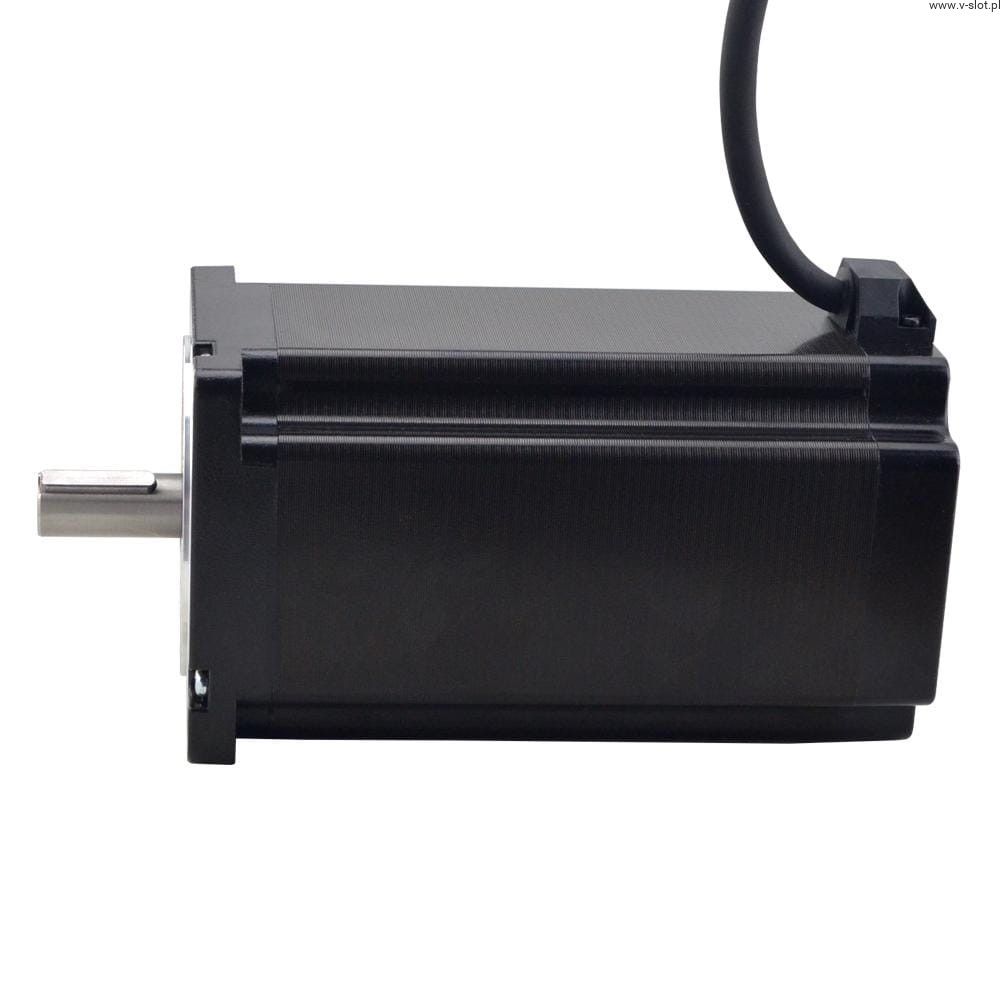

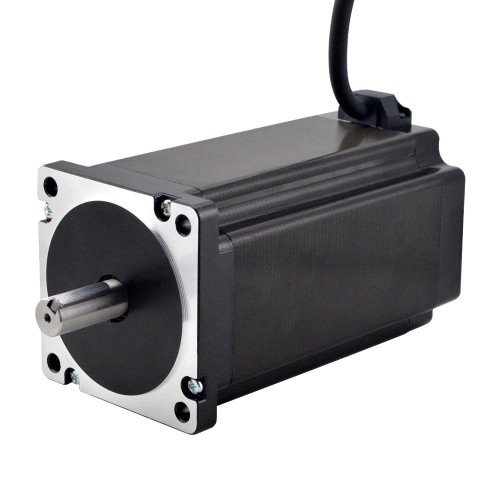

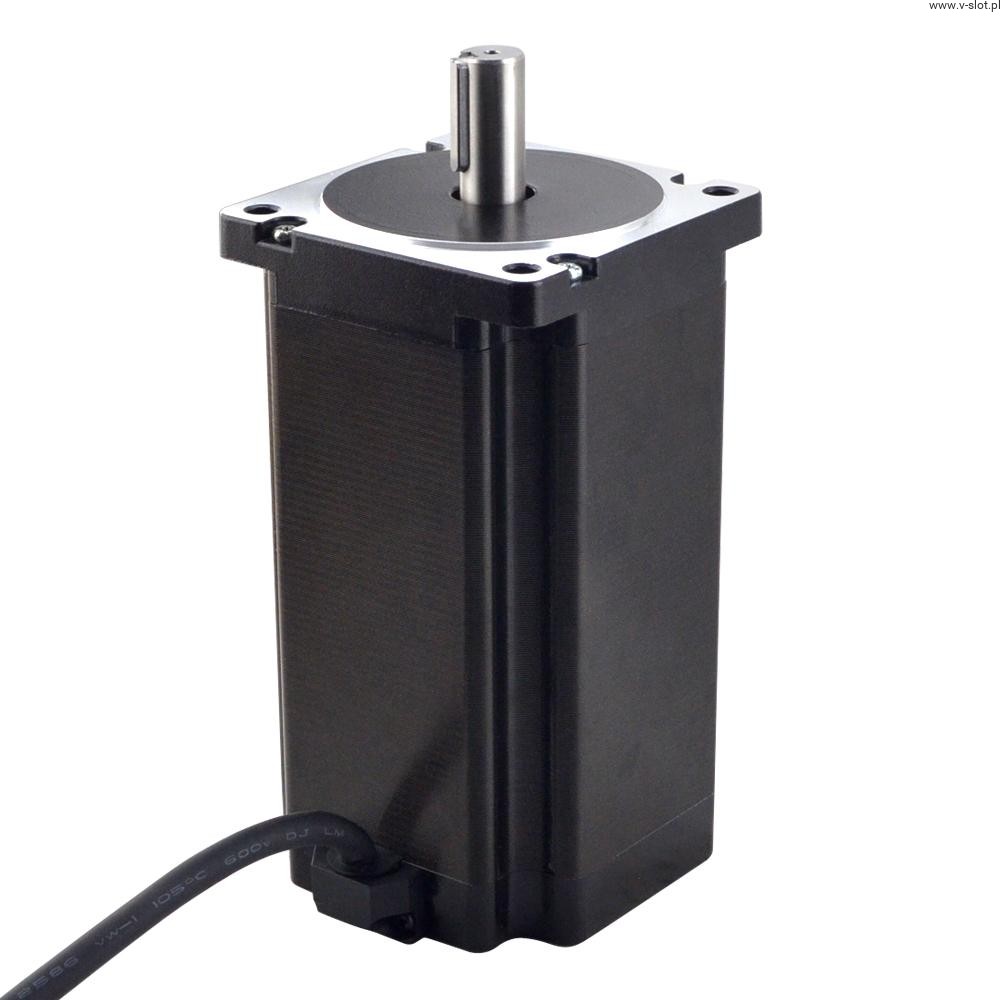

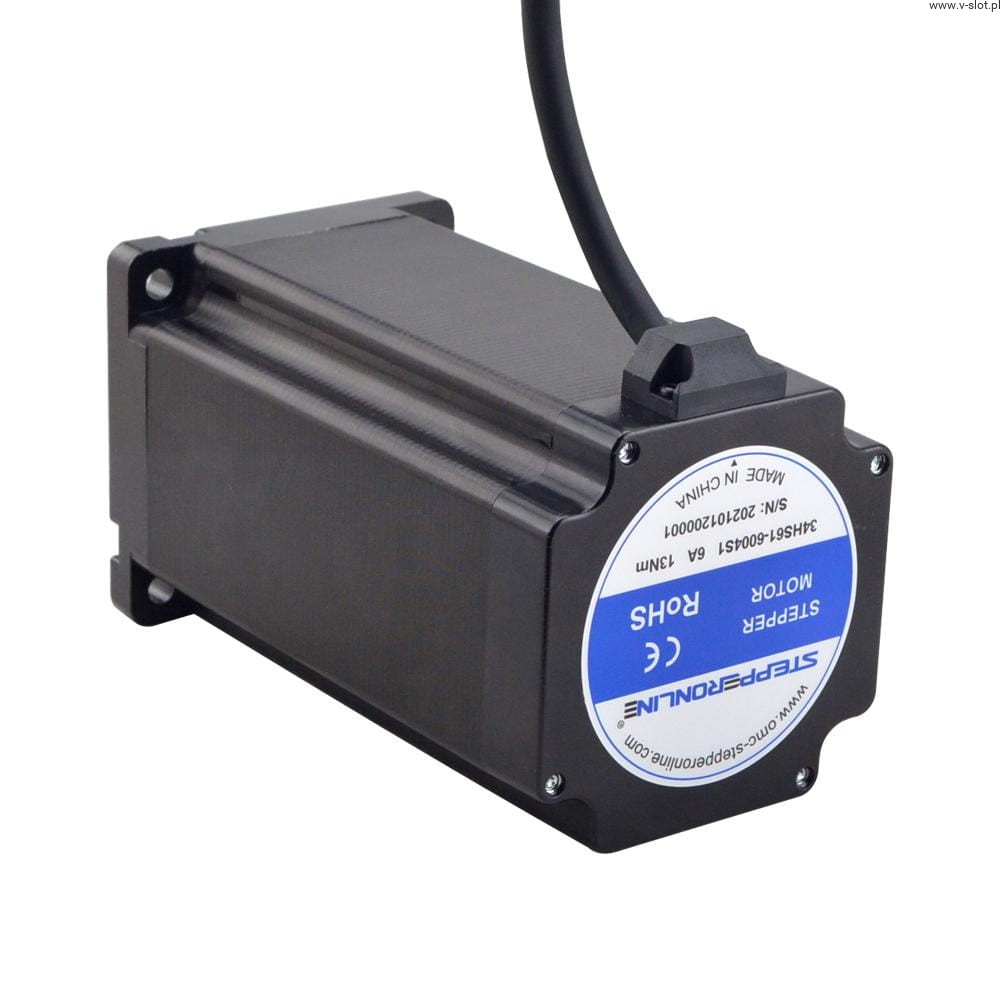

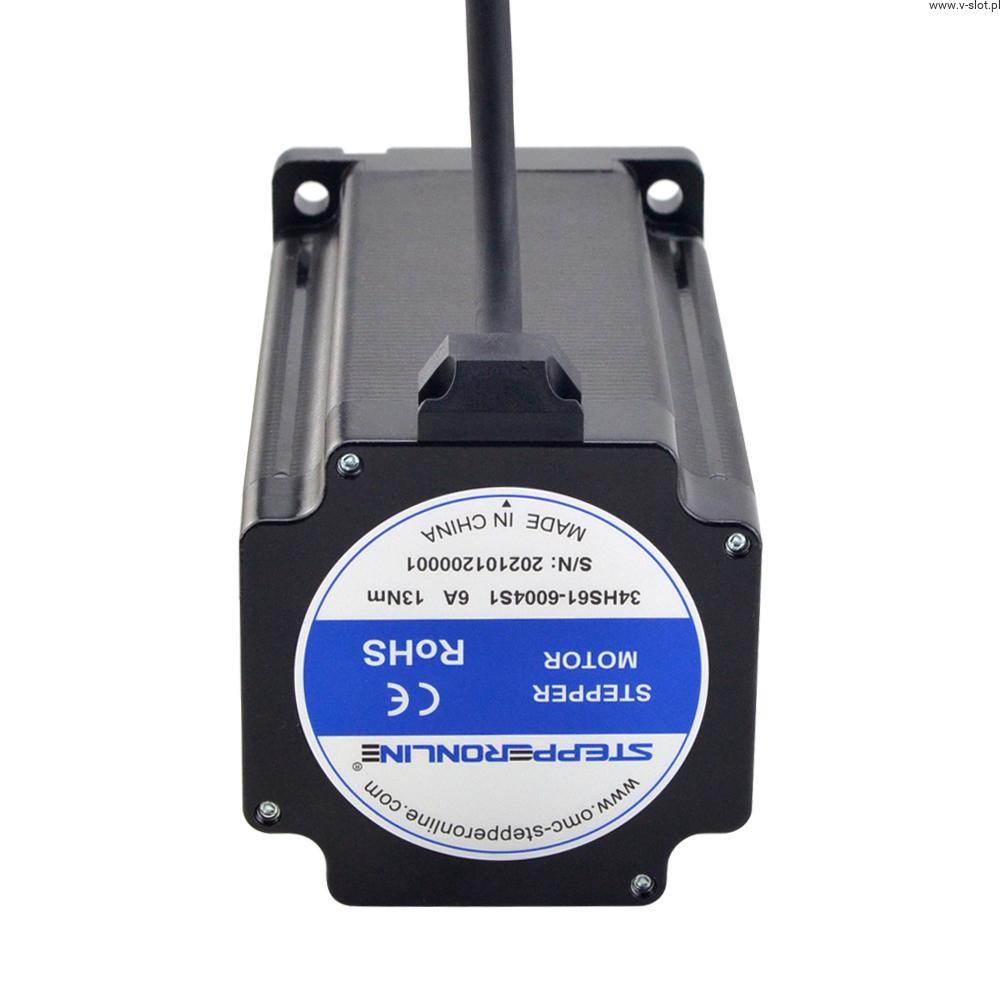

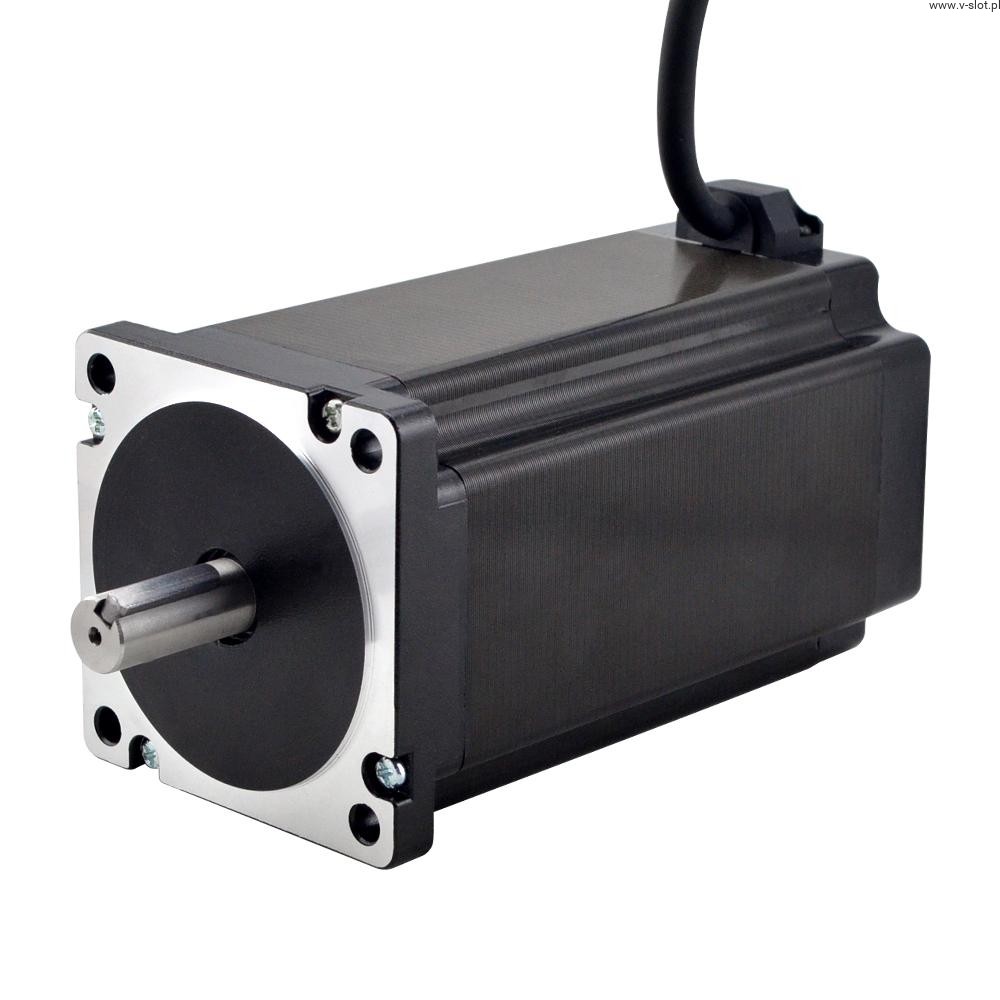

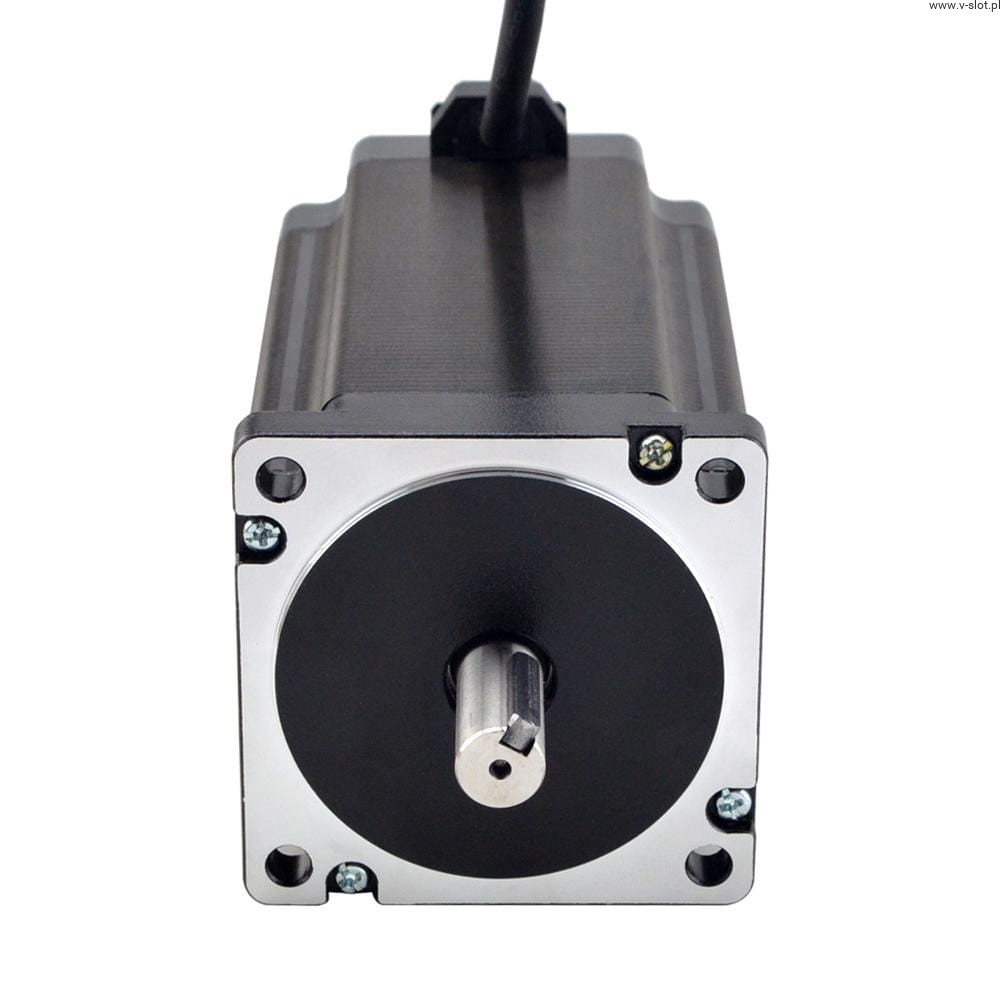

Stepper motor NEMA 34 1,8º 13Nm - 1842 OZ
Stepper motor NEMA 34 1,8º 13Nm - 1842 OZ
Availability:
A lot
Dispatched within:
14 working days
Vendor:
STEPPERONLINE
Product code:
34HS61-6004S1
Rating:
0
0
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€168.32
excl. 23% TAX, excl. shipping costs
product unavailable
Description
Stepper motor NEMA 34 1,8º 13Nm - 1842 OZ
Electrical Specifications:
Inductance: 7.5 mH
Phase resistance: 0.9 ohm
Rated current: 6.0 A
Step angle: 1.8 degrees
Holding torque: 1300 Ncm
Holding Torque: 1841.31 oz.in
Physical Specifications:
Frame size: Nema 34 (86mmx86mm)
Body length: 156 mm
Single Shaft/Double Shaft: Single Shaft
Output shaft type: wedge-shaped
Shaft diameter: 14 mm
Shaft length: 32 mm
Number of wires: 4
Cable length: 1000 mm
Weight: 5700 g
Connection:
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
