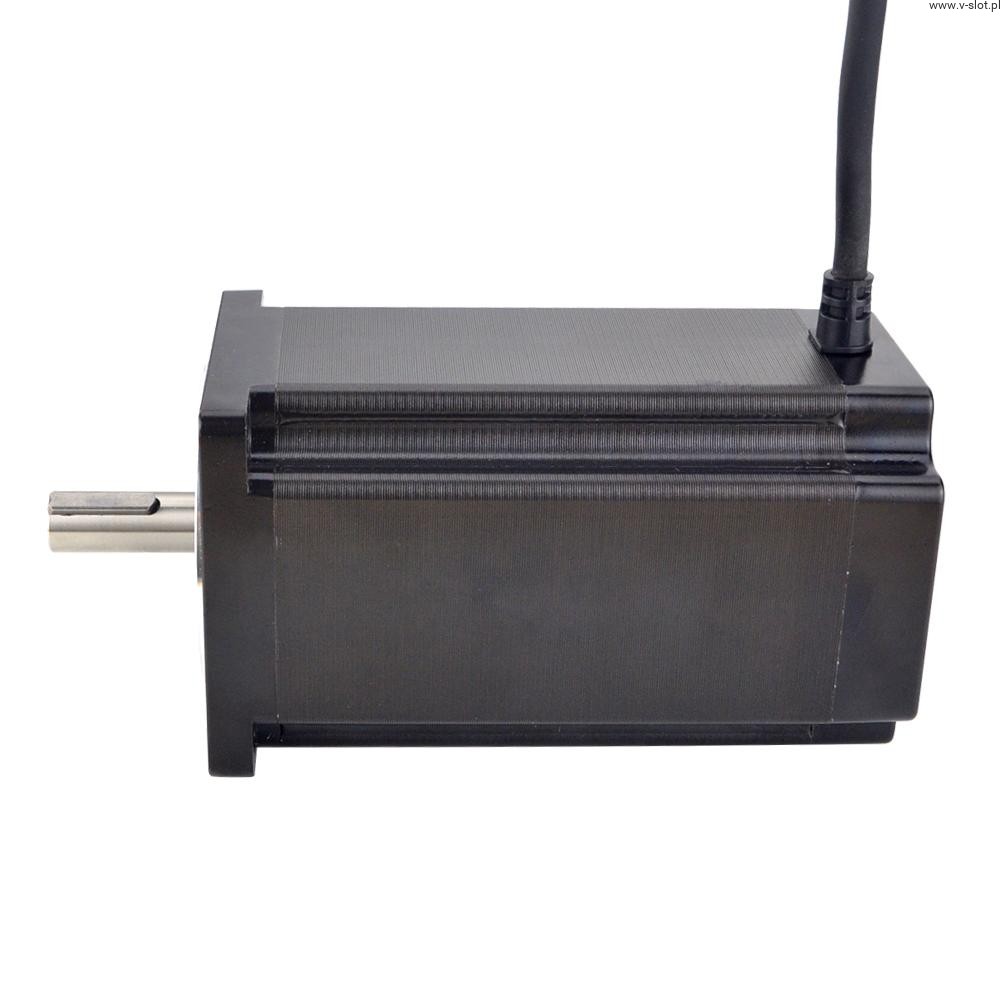

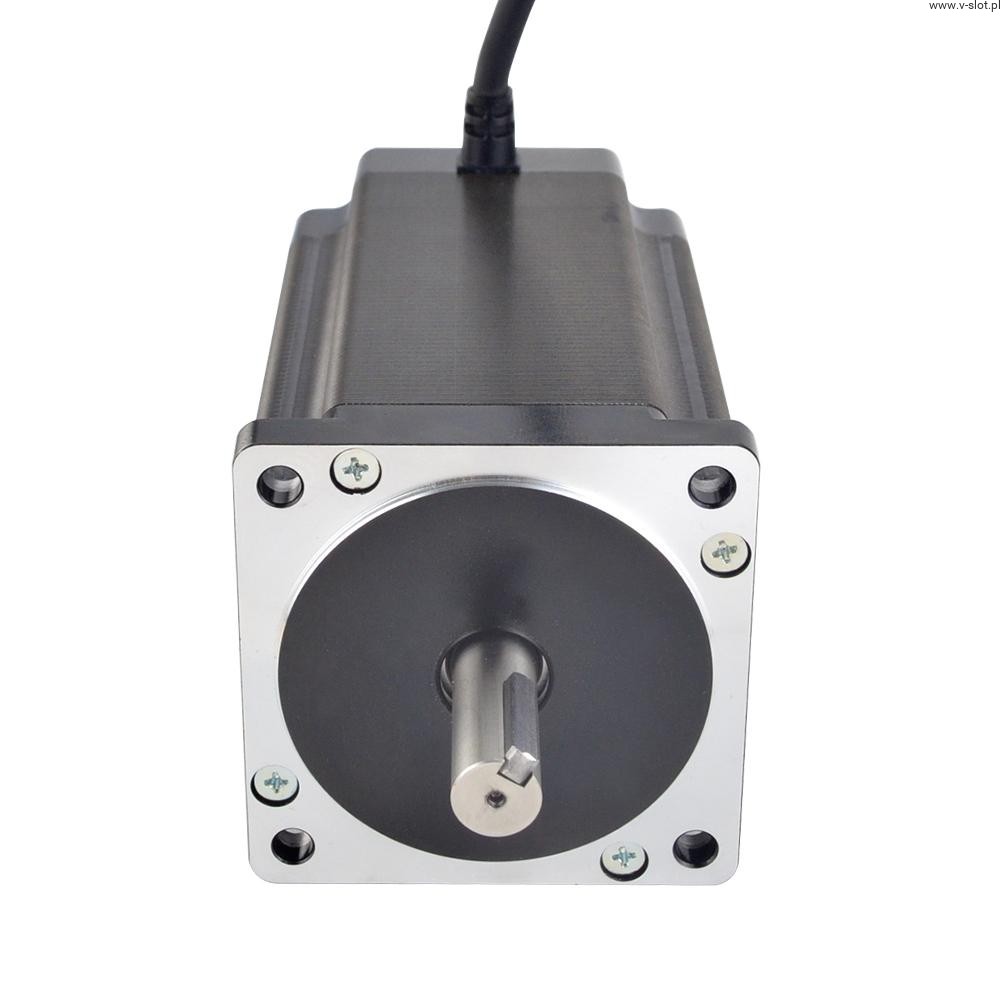

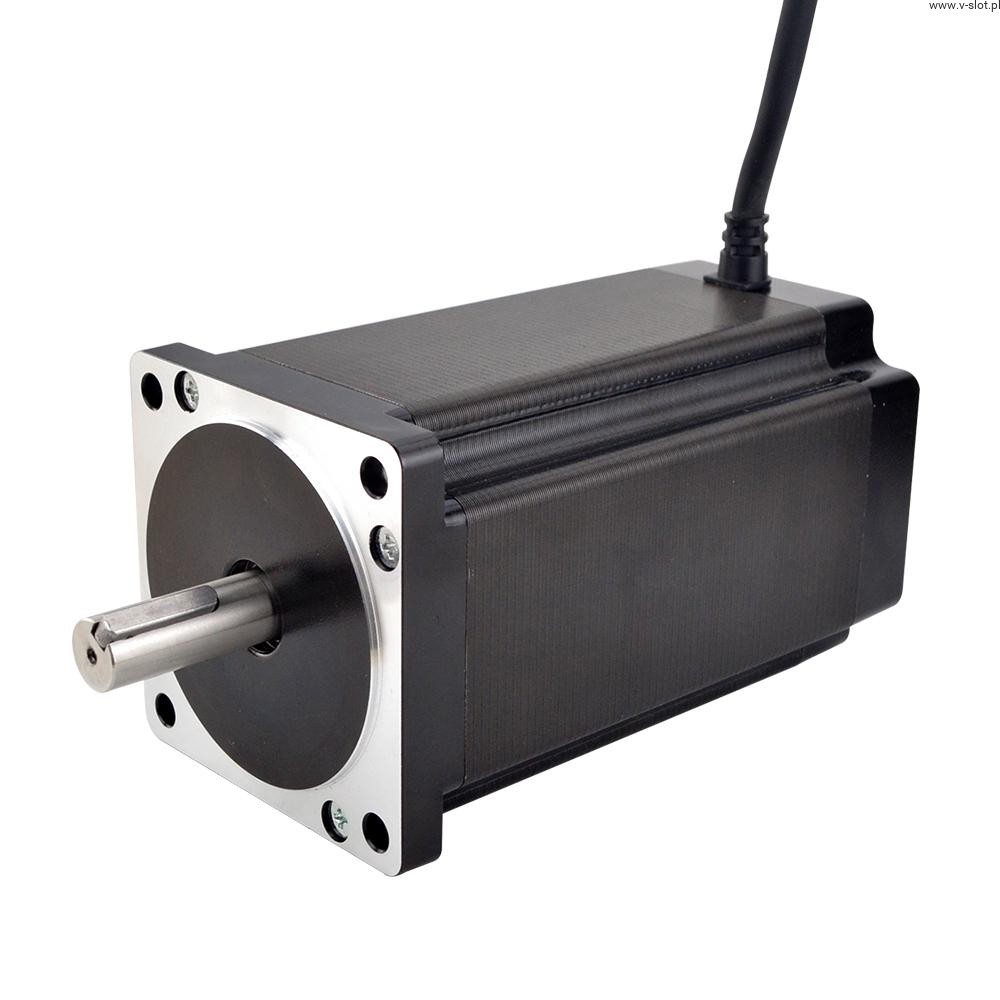

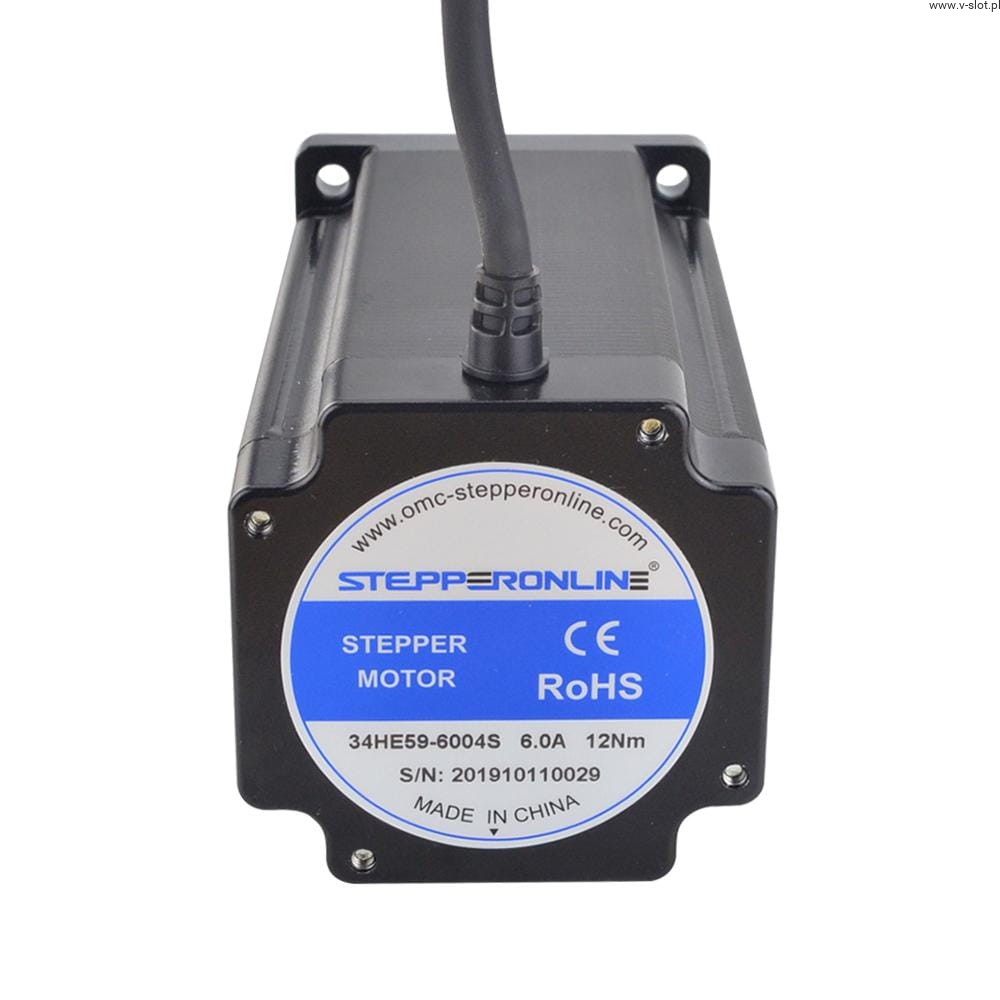

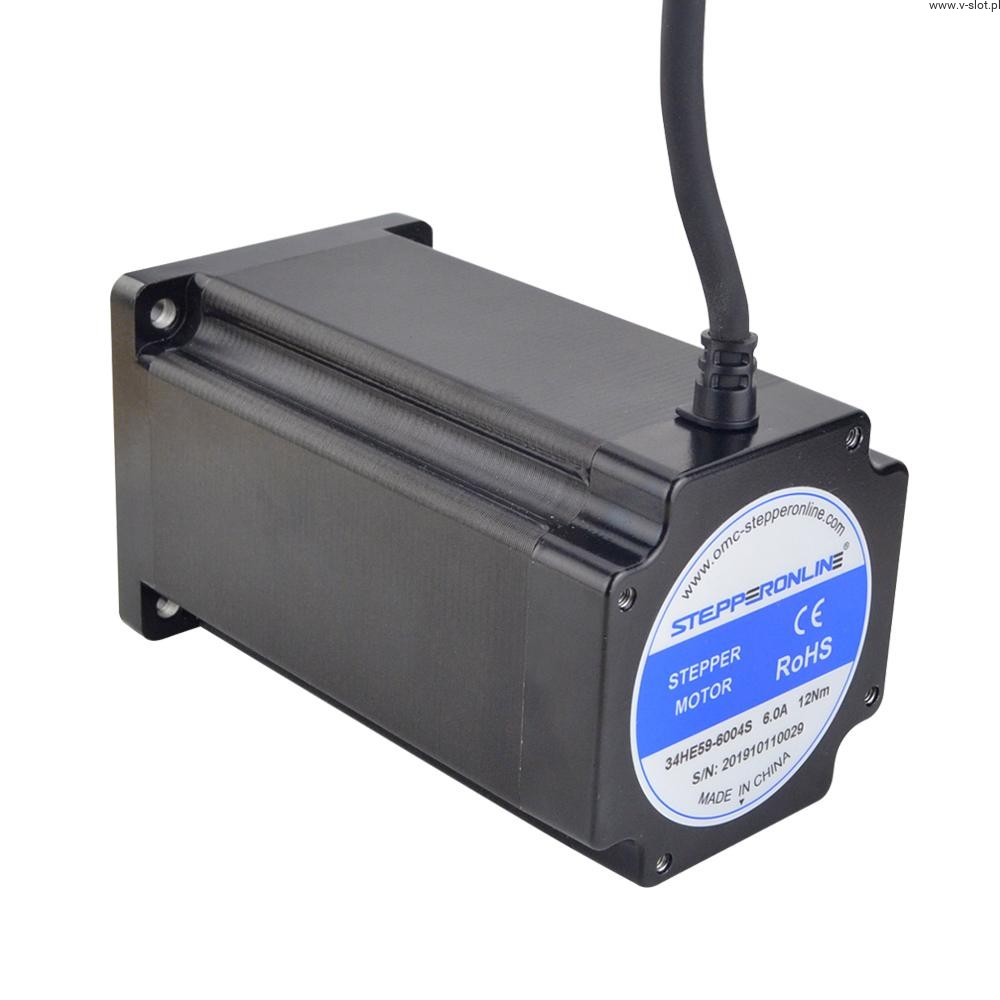

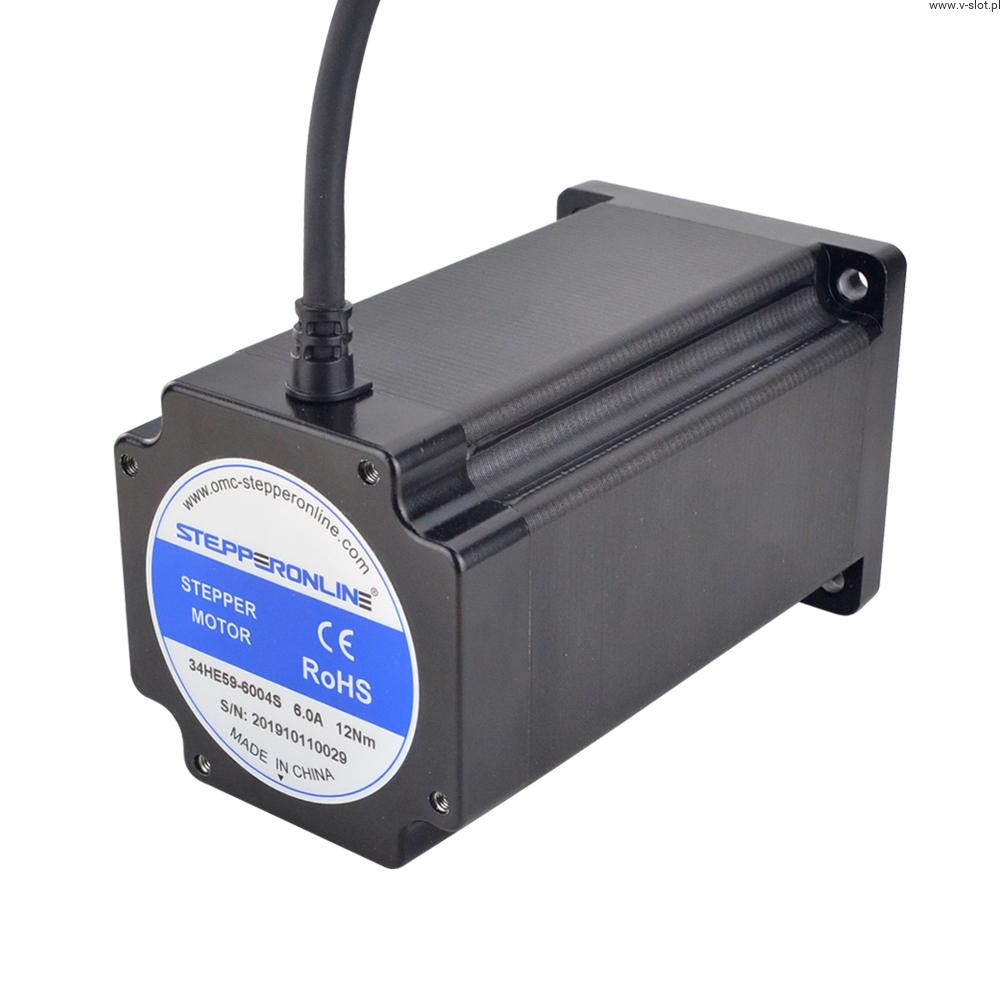

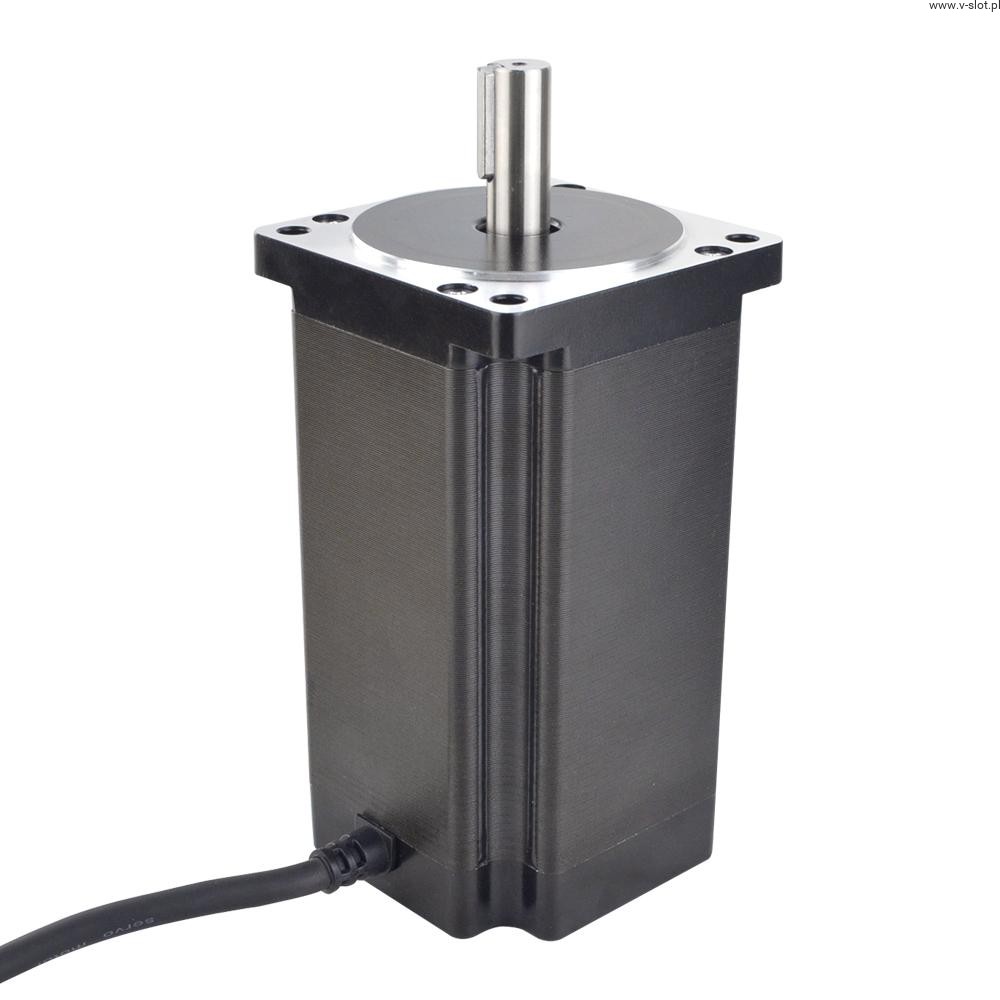

Stepper motor NEMA 34 1,8º 12Nm - 1700 OZ
product unavailable
Description
Stepper motor NEMA 34 1,8º 12Nm-1700 OZ
Electrical Specifications:
Inductance: 7.9 mH
Phase resistance: 0.7 ohm
Rated current: 6.0 A
Step angle: 1. 8 degrees
Holding torque: 1200 Ncm
Holding torque: 1699.68 oz. in
Physical Specifications:
Frame size: Nema 34 (86mmx86mm)
Body length: 151.5 mm
Single Shaft/Double Shaft: Single Shaft
Output shaft type: wedge-shaped
Shaft diameter: 14 mm
Shaft length: 37 mm
Number of wires: 4
Cable length: 500 mm
Weight: 5300 g
Connection:
A+
|
A-
|
B+
|
B-
|
Black
|
Green
|
Red
|
Blue
|
