Nema 17 Stepper Motor - 1.8degree/step, 76oz-in
Nema 17 Stepper Motor - 1.8degree/step, 76oz-in
Availability:
running out
Dispatched within:
10 working days
Vendor:
OpenBuilds
Product code:
HW1078EC-OB
Kod EAN:
6276108246037
Rating:
0
0
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€26.71
excl. 23% TAX, excl. shipping costs
product unavailable
Description

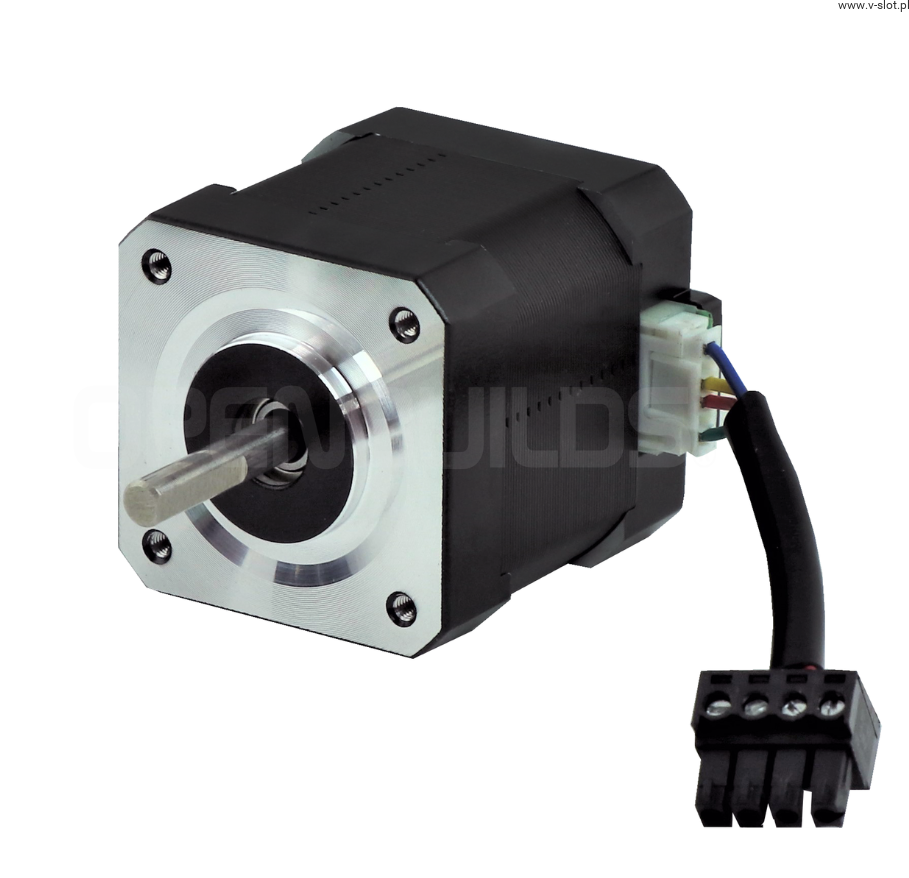

Nema 17 Stepper Motor - 1.8degree/step, 76oz-in
NEMA 17 stepper motor for general use. The holding torque is 5. 5 kg/cm.

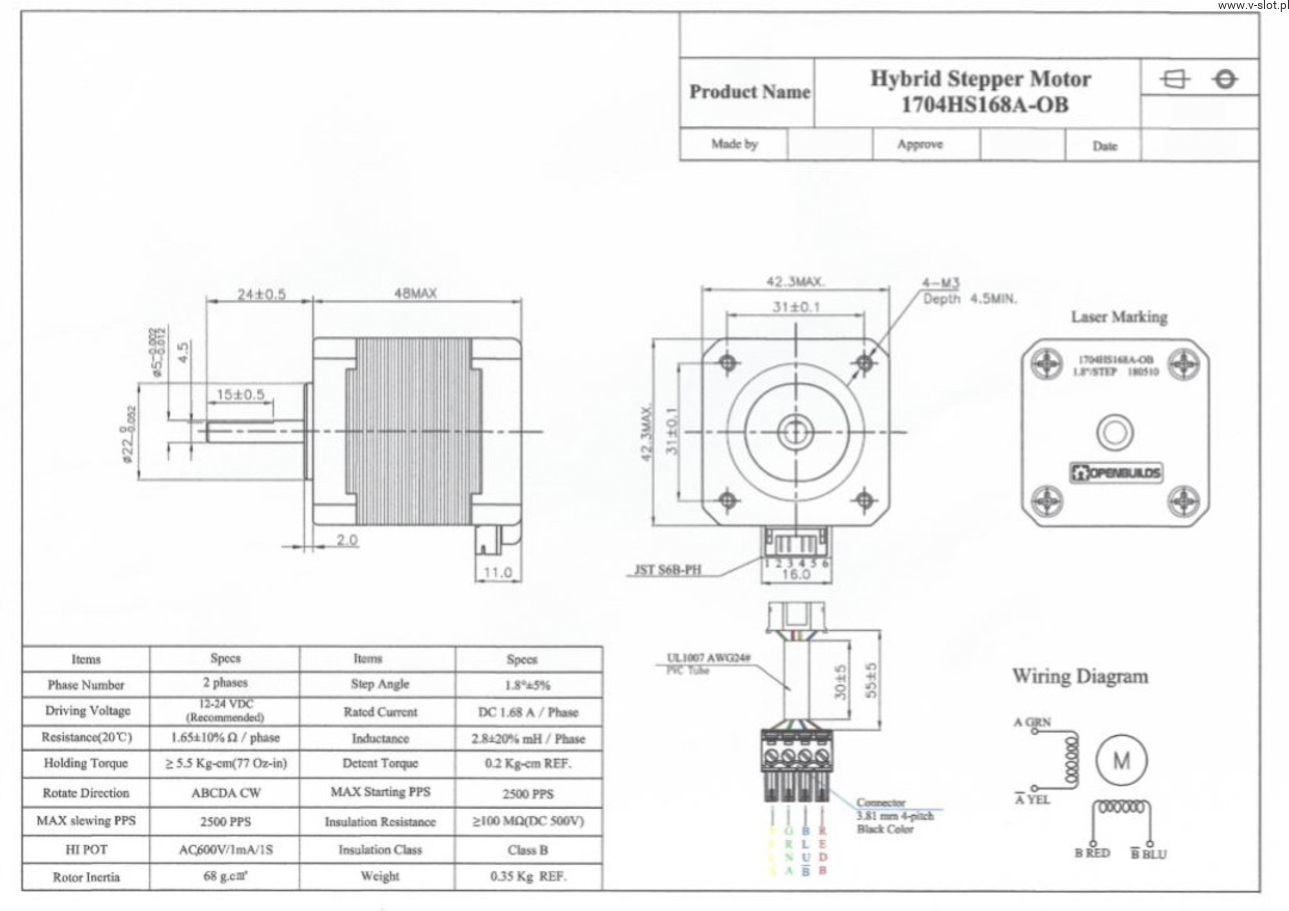

Product specifications:
- Manufacturer: LDO
- Model: LDO-42STH47
- Stepping angle:1.8 degrees
- Connector type: JST PH-6
- Voltage rating: 3.1V
- Shaft: 5mm
- Current rating: 2.5A/Phase
- Connector type: JST PH-6
