ALUMINIUM CONSTRUCTION PROFILE 40X80 T8 -100 CM
product unavailable
Description

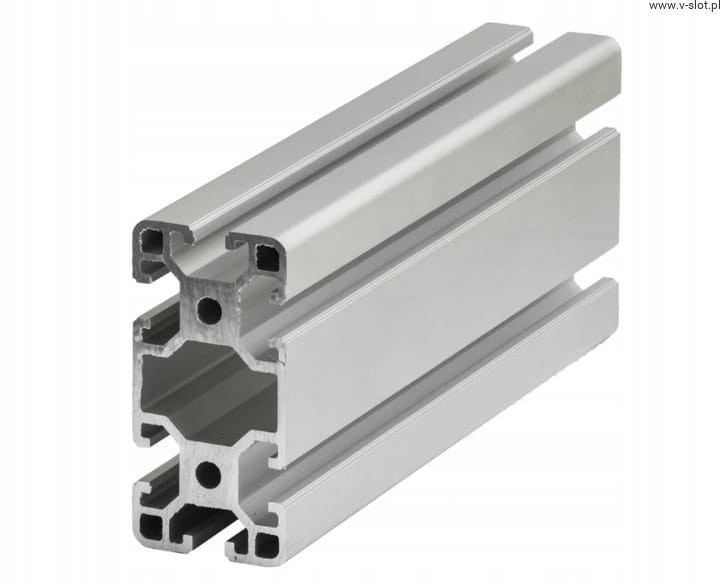

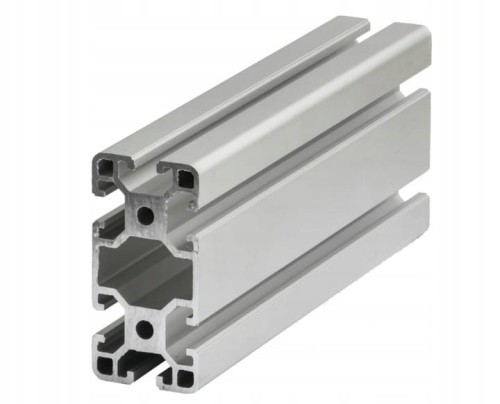

ALUMINIUM CONSTRUCTION PROFILE 40X80 T8 -100 CM
Construction profiles have already found their place in all areas of business and have a significant impact on innovative and standard projects. There are no major constraints on design.
Technical data:
Element length: 100cm

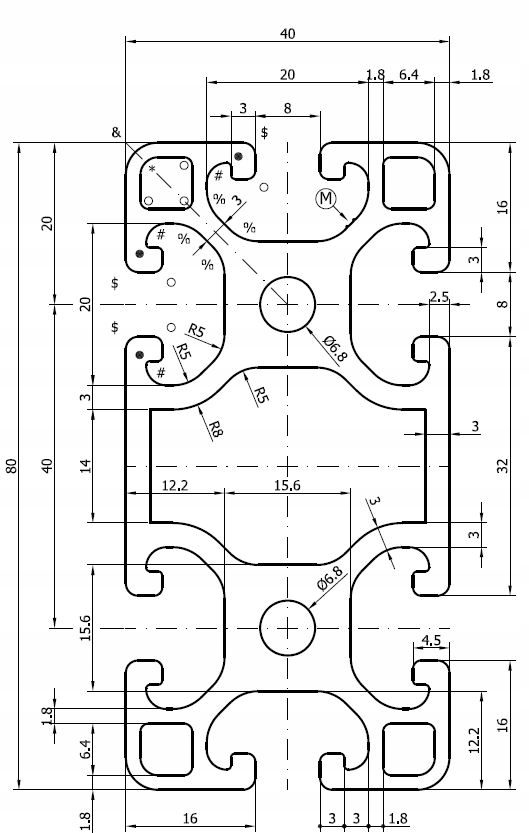

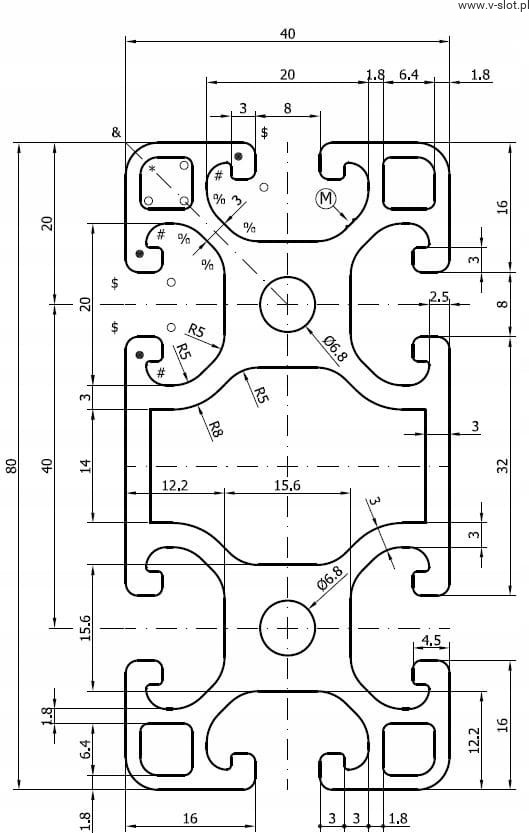

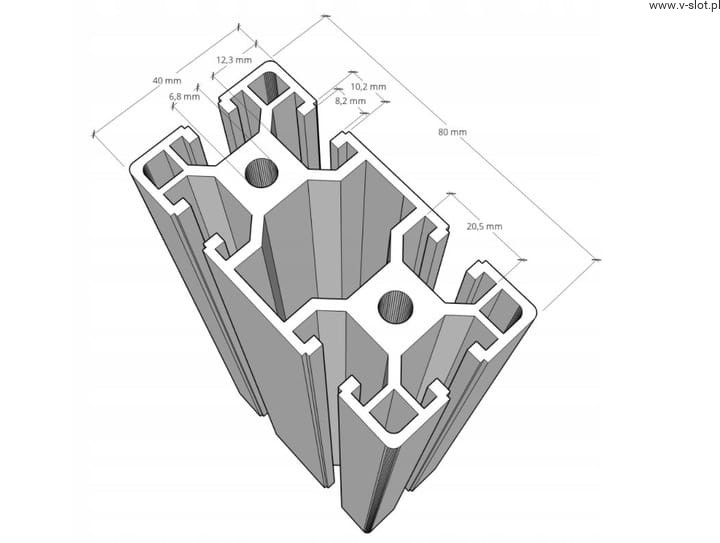

Size: 40x80 mm
Material: Aluminum alloy (6063-T5)
Color: Silver
Working groove version - T-Slot
Working groove - 8
Manufacturer: V-SLOT
Weight [kg/m] - 3.2
Moment of inertia of the surface about the x-axis [cm4] - 78.8
Moment of inertia of the surface about the y-axis [cm4] - 21.6
X-axis drag moment [cm3] - 17.4
Y-axis drag moment [cm3] - 8.7
Tensile strength [Mpa] - 180
Mechanical strength [Mpa] - 127
Mechanical elasticity [N/mm2] - 68600
Hardness [HB] - 62
Anodizing - anode thickness [um] - 12
Advantages:
Weight reduction (aluminum as an equivalent to steel)
Easy assembly (practical accessories are used for joining)
Each project can be modular (easy disassembly)
Functionality (wide range during construction)
High load-bearing capacity (impressive strength parameters)
Design
Profile types:
Series 20 (20x20, 20x40, 20x80) helps CNC machine builders;
Series 30 (30x30, 30x60, 30R) used for simulators and safety cages.
Series 40 (40x40, 40x80, 40R) displaces steel constructions at production lines.
