V-Slot® Gantry Plate - Universal
V-Slot® Gantry Plate - Universal
3
product unavailable
Description

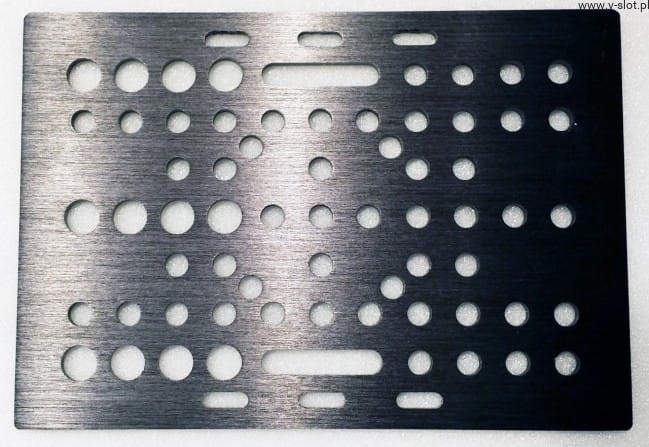

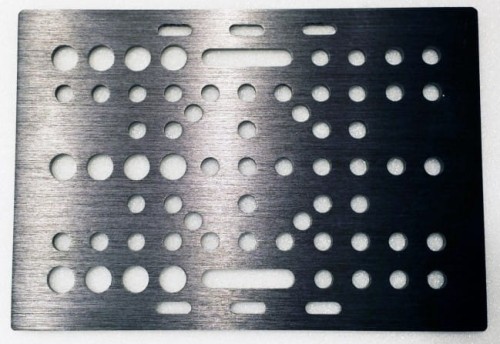

V-Slot Gantry Plates (Universal (20mm - 80mm))

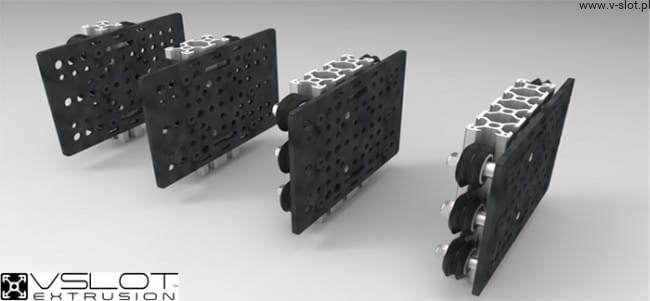

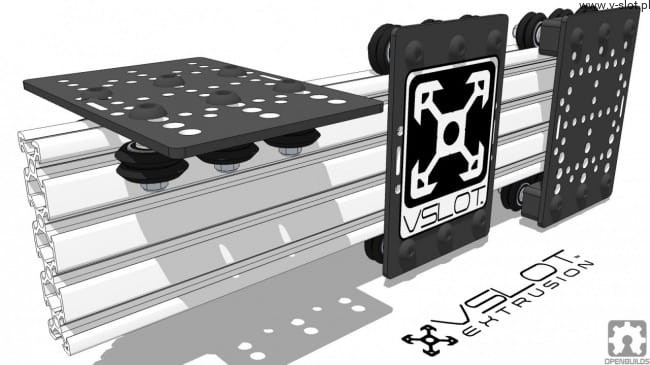

This tile is designed to fit all standard sizes of V-Slot aluminium profiles.

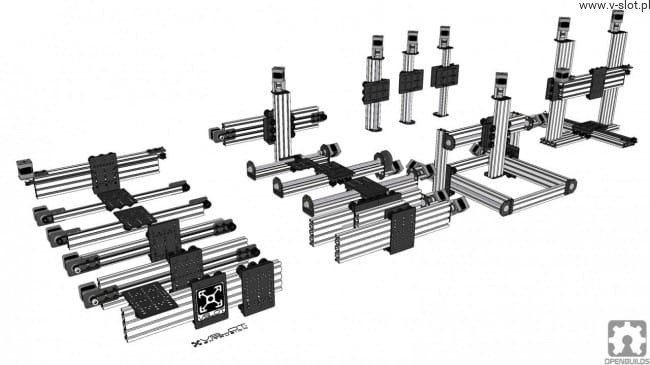

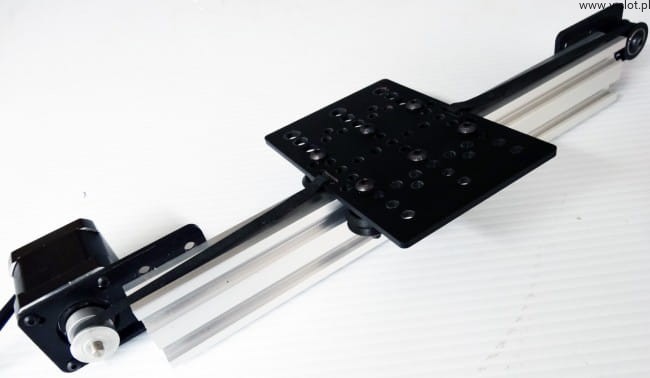

This is a great element that you can use in many projects. Possibility of installing drive belts directly into the plate, many mounting holes and an aesthetic finish.

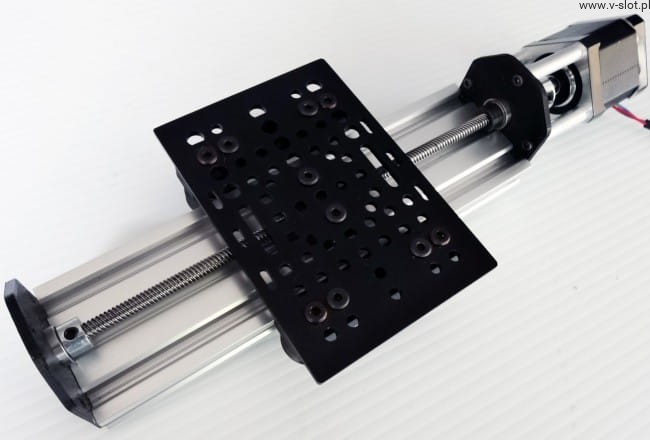

The element simplifies the process of construction of devices in which linear motion is used.

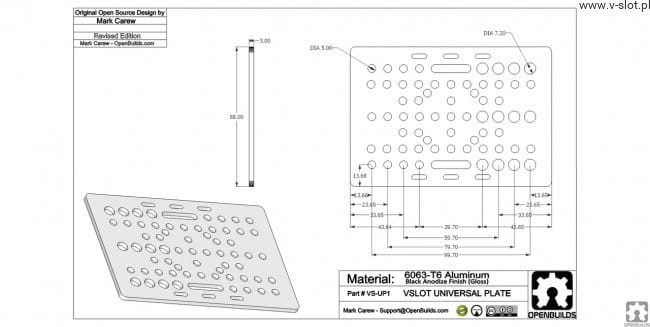

Product specifications:
- Version - V4
- Size: Universal (20mm-80mm)
- Thickness: 3mm
- Material: 6063 - T6 Aluminum
- Finish: Anodized Aluminum
- Color: Black
