Threaded Rod Plate - NEMA 17 Stepper Motor
Threaded Rod Plate - NEMA 17 Stepper Motor
1
product unavailable
Description

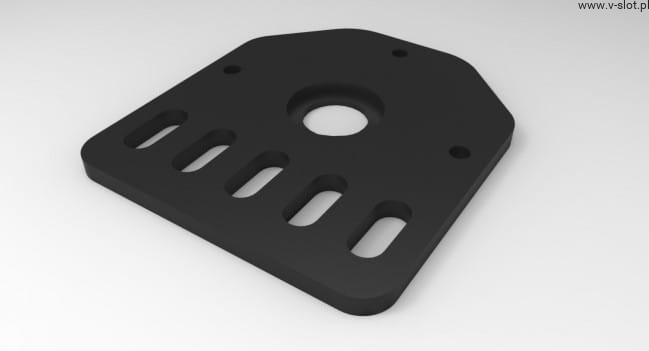

Threaded Rod Plate for Nema 17 Stepper Motor

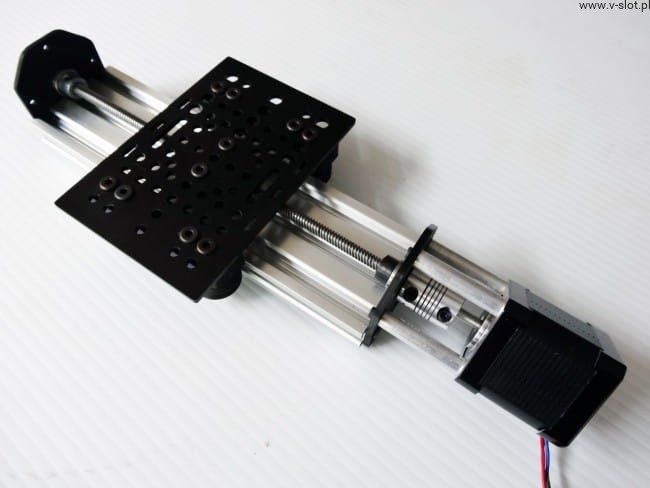

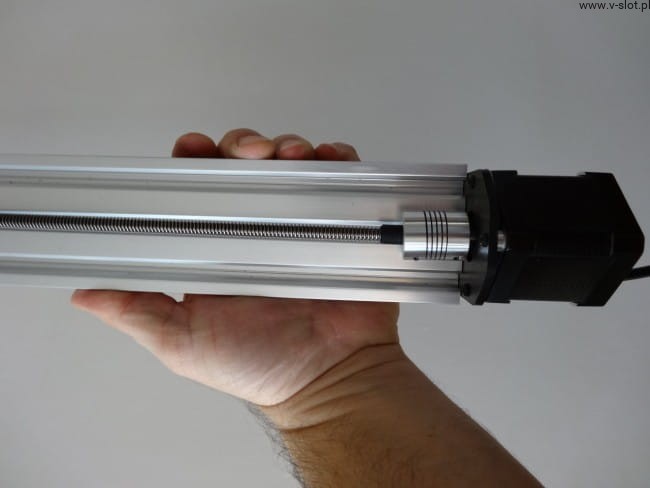

This type of plate allows the installation of Nema 17 stepper motors and the use of threaded screws.
Ideally suited for use with V-Slot and OpenRail profiles. Versatile and very fast assembly enables many different applications.
This project was inspired by Shapoko on shapeoko.com

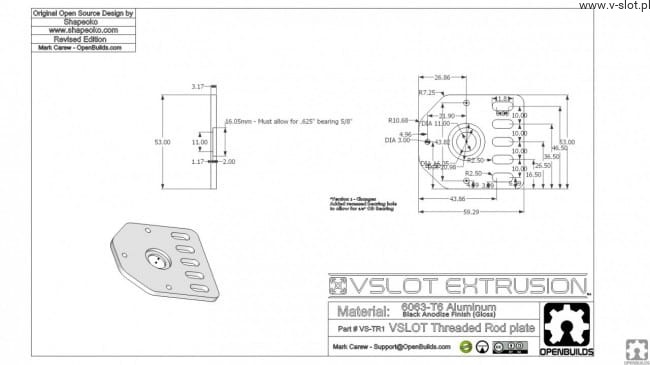

Product specification:
- Size: 53 x 59mm
- Thickness: 3mm
- Material: 6063 T6 Aluminum
- Finish: Brushed and Anodized
- Color: Black
