NEMA 23 Reduction / Stand Off Plate
NEMA 23 Reduction / Stand Off Plate
0
product unavailable
Description

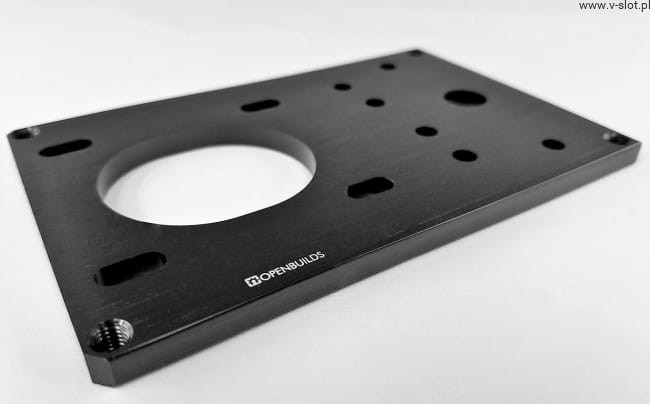

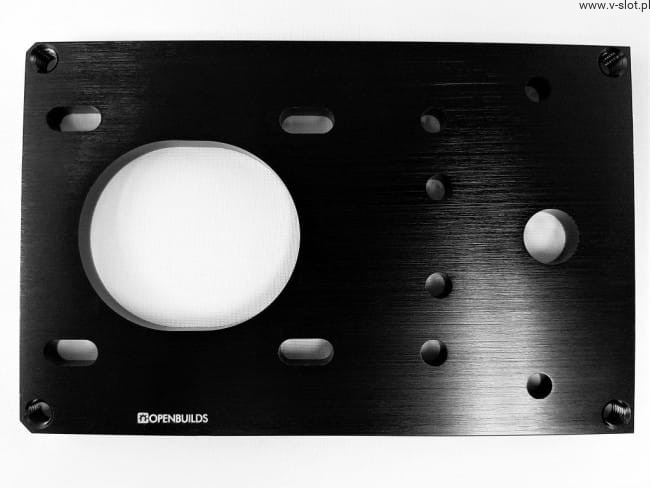

NEMA 23 Reduction / Stand Off Plate

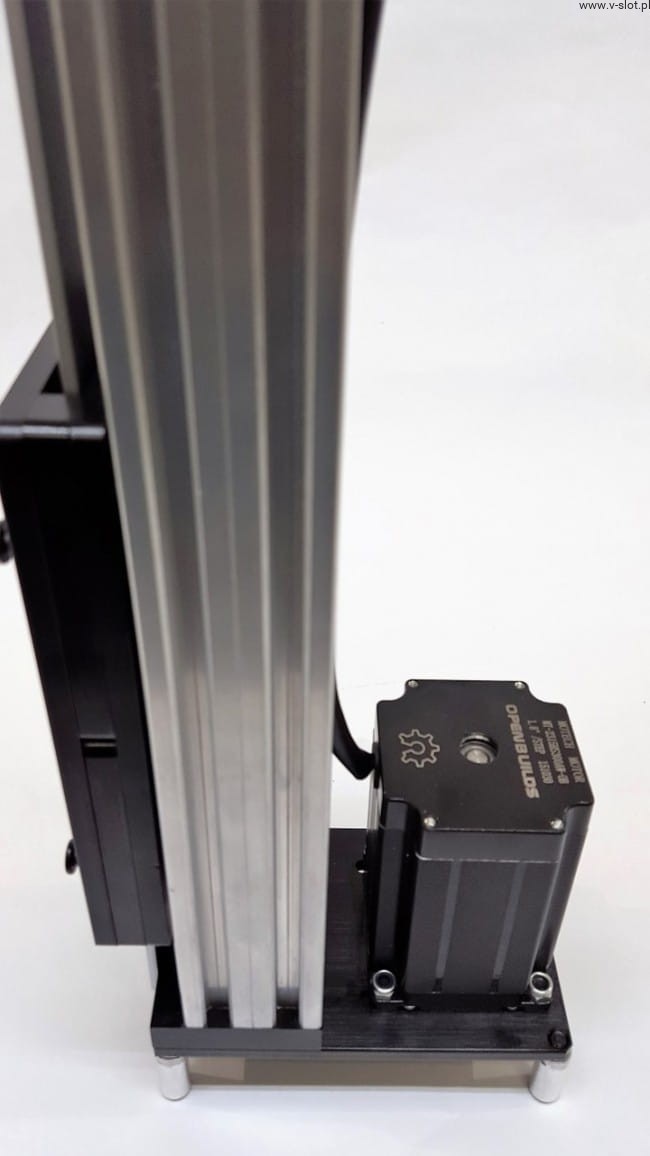

The element allows the NEMA 23 motor to be mounted in a very aesthetic way.
Product Specification:
- 6061 T-5 Plate M5
- Threaded Holes on each corner
- Adjustable NEMA 23 Motor Mount to allow for belt tensioning
- Black Anodized Aluminum
- Color: Black
1-to-1 Ratio Set Up:
- GT3 Timing Pulley - 20 Tooth - 9mm Belt - 8mm Bore (Sold Separately)
- GT3 Timing Pulley - 20 Tooth - 9mm Belt - 1/4" Bore (Sold Separately)
- GT3 Timing Belt - 9mm - Closed Loop (Sold Separately)
- NEMA 23 Reduction / Stand Off Plate (This Plate)
