V-TROX CNC MILLING MACHINE

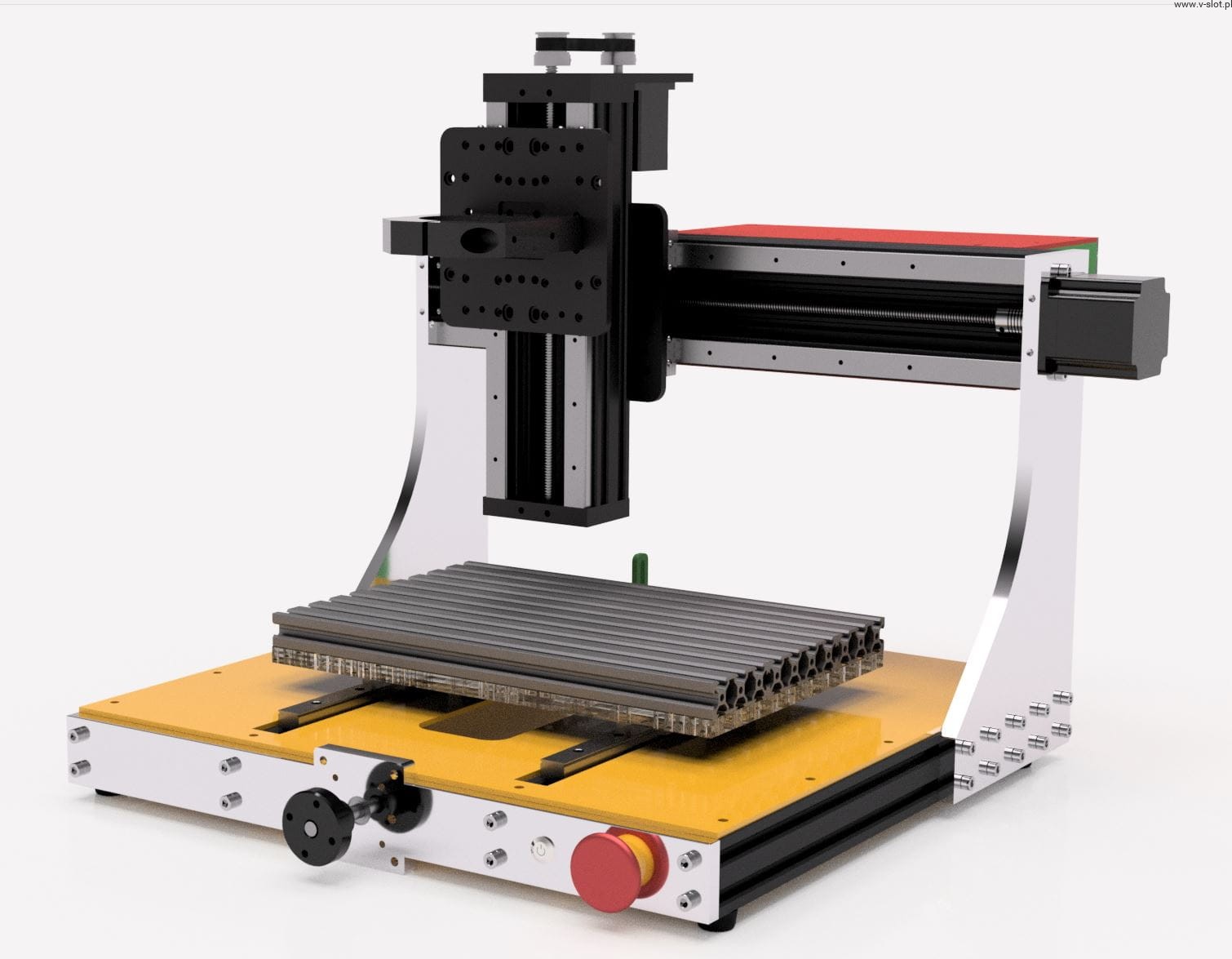

A desktop CNC milling machine with a rigid structure from V-SLOT Polska!

We are pleased to present you the latest design from V-SLOT Polska - the V-TROX desktop milling machine. The device was designed by our company from scratch, with the experience which we earned with the construction and design of larger CNC plotters. When creating the V-TROX structure, we assumed that we want to expand our offer with a device that will offer the best possible parameters for a reasonable price.

Like most projects created in our company, we designed the device in such a way that it met our expectations in every possible aspect. V-Trox is a small milling machine that most of our team members have at home and create many extraordinary projects.

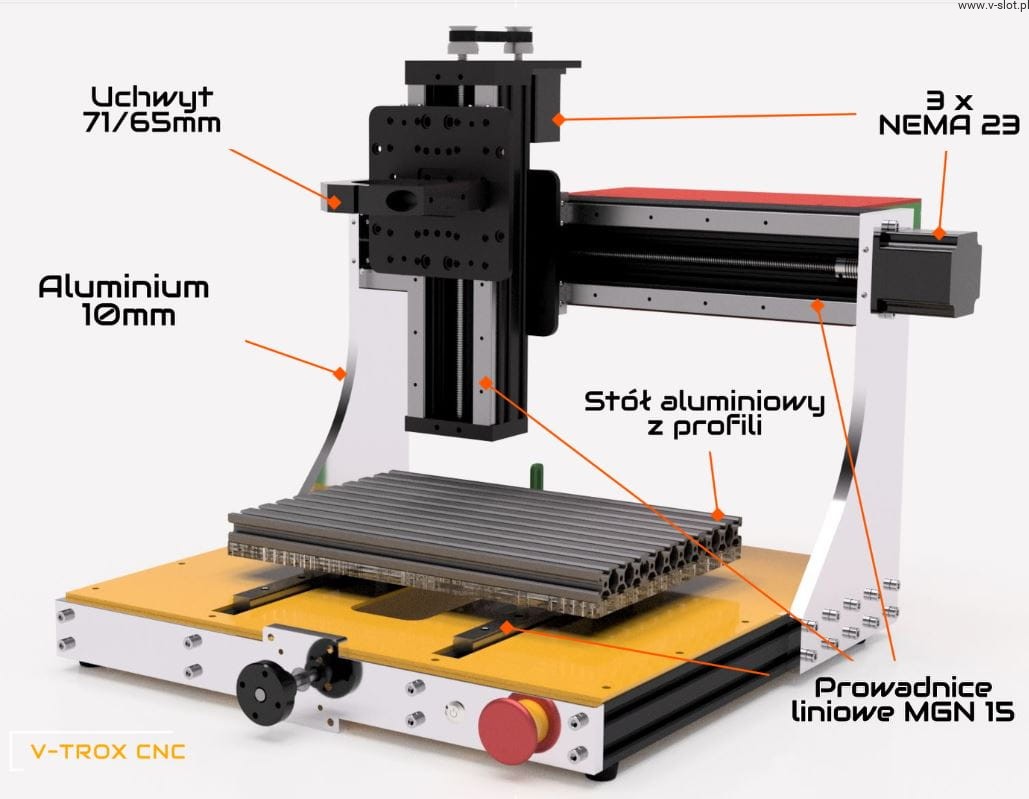

TECHNICAL DATA:

• Model: V-TROX 1
• Overall frame dimensions (X / Y / Z): 425 x 420 x 450 mm (without motors and control box)
• Working area (X / Y): 250x200mm
• Maximum height of the processed material: approx. 95mm
• Weight: approx. 20 kg (without motors)
• Drive type: ACME screw
• Axis guidance: Linear guides and MGN 15 linear carriages
• Maximum speed: 3500 mm / min
• Positioning accuracy: 0.01mm
• Working precision: 0.1 - 0.3mm *
• Material: Aluminum and plastic
  • Gate plates: Aluminum 10mm
  • Face plates: Aluminum 10mm
  • Y axis profiles: V-SLOT 2040
  • X axis profiles: C-BEAM 40x80
  • Z axis profile: C-BEAM 40x80
• Table: Aluminum, made of V-SLOT 2080 and 2040 profiles
• Motors: NEMA 23 175 oz-in (12.6 kg.cm) also available NEMA 23 (23 kg.cm)
• Driver: MKS + Drivers TB6600
• Control program: YES, (OpenBuildls Control)
• Limit switches: YES, 3 pcs (1 for each axis)
• Z axis probe: YES
• Power supply: 230V / 24V
• Spindle holder: Standard 71mm (optional 65mm to choose)
• Spindle: Not included, optional DeWalt D26200

* The precision of work depends on many factors such as: material type, spindle type, cutter quality, program settings. The given parameter is an average value

WORKING IN MANY MATERIALS

The V-TROX desktop CNC milling machine was designed to work in many different materials. Depending on the cutter and spindle, it is possible to work with soft and hard materials, such as e.g., aluminum.

By selecting the appropriate parameters, cutters, and spindles, V-TROX will allow you to work with:

• Foams and styrodur
• PCBs
• With soft plastics
• Hard plastics
• MDF boards, furniture boards, plywood, etc.
• Soft wood
• Hard wood
• Aluminum, bronze, and copper

A SMALL MILLING MACHINE PERFECT FOR LEARNING AND MORE ...

This small milling machine has been designed in such a way that almost everyone can set it up and use it in their own small workshop. It is an ideal device for people who are starting their adventure with CNC milling machines and want to acquire knowledge and experience before making a decision to buy a larger (and more expensive) device.

The device is ideally suited as the first CNC milling machine for learning, so it will successfully find its place at home, in a workshop studio, as well as at school and university.

People who plan to use this small milling machine as a work device should not be disappointed either! V-TROX will also prove useful in enterprises as a unit for prototyping and small components production.

YOUR FIRST CNC MILLING MACHINE!

For people who want to start their adventure with CNC devices, we create a special guide available on our YouTube channel.

You can watch there how to carry out the first steps with the device - from commissioning to the first projects.

On our YouTube channel V-SLOT Polska you can also find many additional materials which you can treat as an inspiration for your future projects!

EASY TO CONNECT DEVICE!

After receiving the device, it only takes a few minutes to start the device! The construction is almost completely assembled, so you need a piece of stable desk to set up the device (the milling machine has rubber feet), a classic 230V socket and a computer with Windows or IOS operating system.

Together with the device, you will receive all the necessary cables (230V and USB) and a software program for controlling the machine - OpenBuilds Control.

OPENBUILDS CONTROL

To control the device, you need a computer with Windows (preferably Win10) or IOS system installed. The device must be connected via the USB cable (which is included in the set), to the computer. In such a way you can install the OpenBuilds Control program, which you receive on a USB flash drive.

We install the OpenBuilds Control software, connect the USB to the computer, the milling machine to a 230V socket and now we can control the X / Y / Z axes!

The flash drive will also contain a post-process for the Fusion360 software to generate G-CODE files that we upload to OpenBuilds Control to start working.

ELECTRONIC COMPONENTS

We chose electronic components for the V-TROX that offer excellent value in reasonable price.

KS board with the GRBL software loaded on it are responsible for controlling the machine. The axis movement is possible due to usage of excellent quality NEMA 23 stepper motors, which also work well in our larger devices. Three mechanical limit switches for each axis allow the device to be brought to the zero point for each axis. In addition, the whole working field is illuminated with an LED lamp.

The entire system is powered by a high-quality 24V power supply, which ensures stable operation of the device.

SMALL AND STABLE!

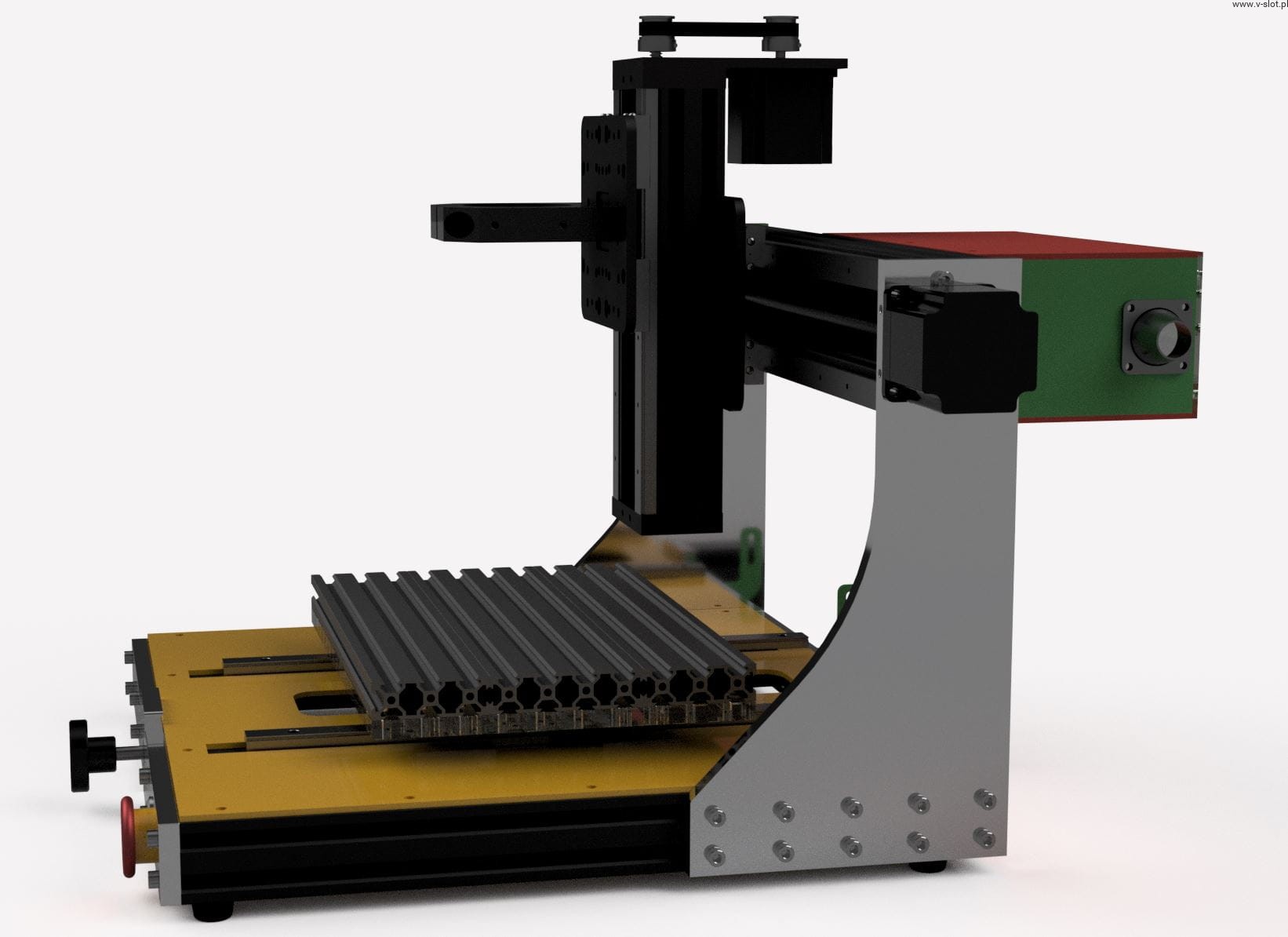

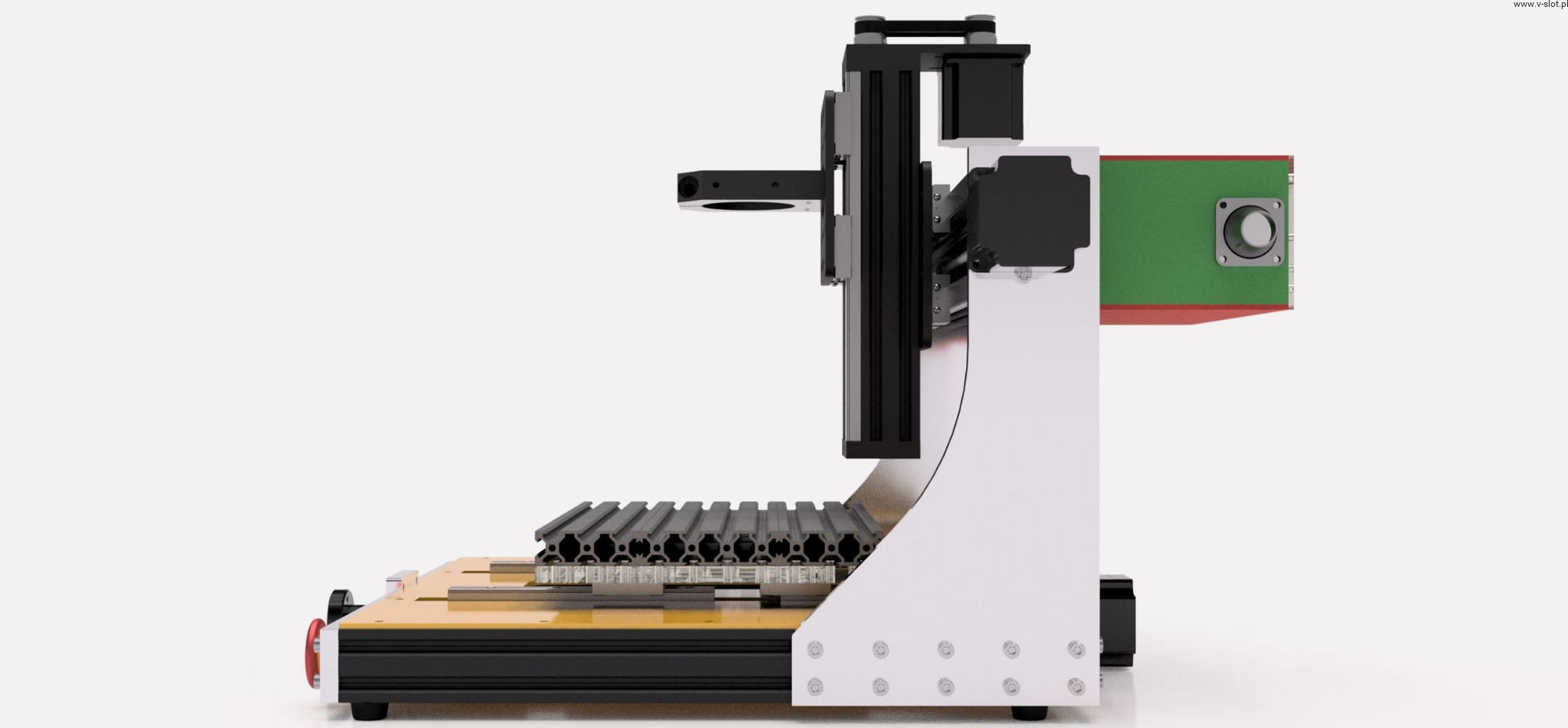

Despite small size, the V-TROX is a very solid and rigid structure.

For its construction, we used, among others, milled in our company aluminum plates with a thickness of 10mm and aluminum profiles V-SLOT 2040 and C-BEAM profiles with a cross-section of 40x80mm!

The movement of the trolleys is possible thanks to the use of MGN15 linear guides, which ensure smooth and stable movement of each axis.

YOUR MILLING MACHINE - YOUR CHOICE!

The kit includes a complete, fully assembled V-TROX desktop milling machine, which is ready to run. You only need to choose and buy a spindle and cutters for the milling machine, depending on your own needs. As standard, the device is delivered with a holder that allows the assembly of a spindle with a diameter of 71mm. The DeWalt D26200 spindle, which you can also purchase from our company, will work perfectly with this milling machine. However, if you already have a spindle or want to purchase spindle with a different size, you can choose a 65mm or 51mm chuck. People who want to use 100% of the device's capacity can also replace the stepper motors with NEMA 23 (345 oz-in | 24.8 kg / cm).

ADDITIONAL ACCESSORIES

For the V-TROX milling machine, we designed a series of additional elements that will allow you to expand the device and increase the capabilities of the CNC milling machine. In our store you will find accessories compatible with the V-TROX milling machine, such as:

• Vacuum pads
• Device case
• Diode laser
• OptLaser
• Aluminum table / base (to be exchanged with aluminum profiles)
• MDF table / base
• Cutters Clamping lugs
• and many more
