Robot Magician
Robot Magician
0
product unavailable
Description
DOBOT Magician is a multifunctional desk robot arm for practical training education. Installed with various end tools, DOBOT Magician can realize interesting functions such as 3D printing, laser engraving, writing, and drawing. It supports secondary development with 13 extensible interfaces and more than 20 programming languages, which really increases your creativity and imagination without any limitations. In recognition of its excellent performance in hardware and application design, the DOBOT Magician received the CES 2018 Innovation Award and the iF DESIGN AWARD 2018.
HIGH QUALIFICATION STANDARDS
DOBOT Magician has major international standards such as CE, RoHS, ERP, FCC, KC, PSE, TELEC etc.
A PRACTICAL EXPERIENCE FOR EVERYONE
The DOBOT Magician is low cost, small in size and easy to use, allowing each student to practice independently. It greatly improves the teaching efficiency. It can be controlled by programming, APP, Bluetooth, WiFi, mouse and more.
SECONDARY DEVELOPMENT

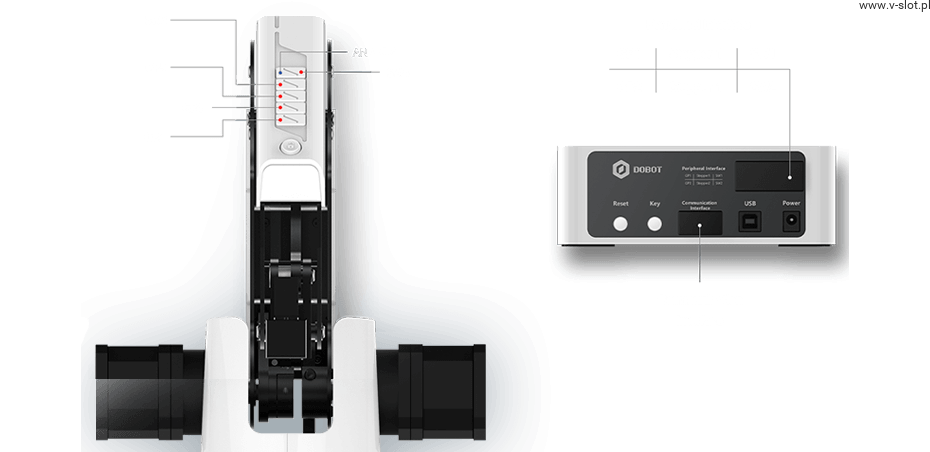

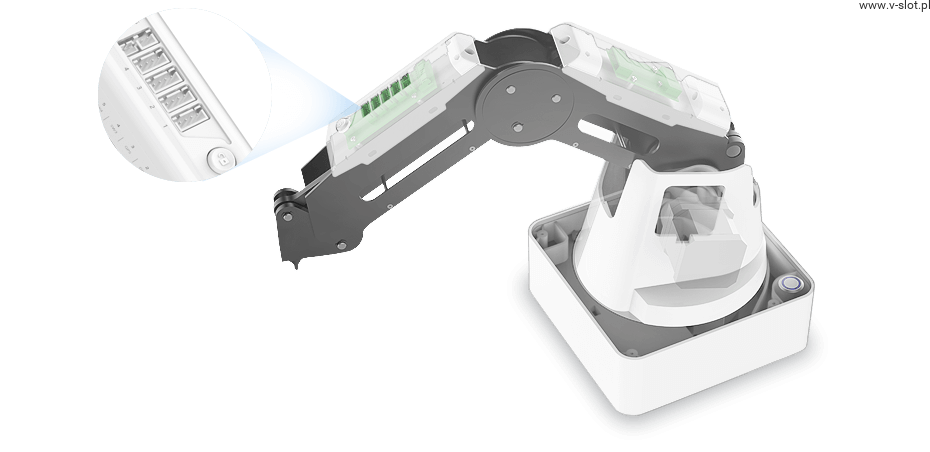

DOBOT Magician is compatible with user application development thanks to 13 I / O ports, API, and shared protocols. It can be developed with several programming languages, ROS, PLC, microcontroller, and Arduino.
COOPERATION WITH MULTIPLE ROBOTS
You can control several DOBOT Magician only with the same device, which allows you to work with multiple robots.
FREE COMBINATION AND TRAINING PROGRAM

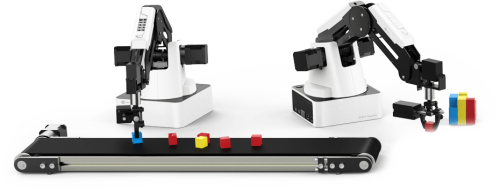

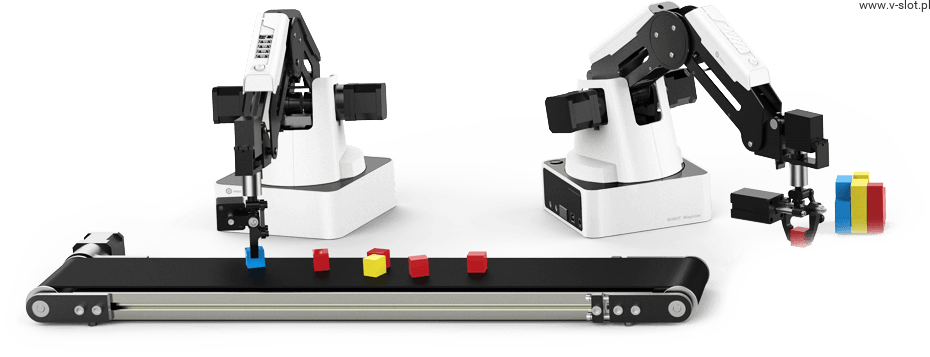

DOBOT Magician is compatible with many accessories such as linear rail kit, belt conveyor kit, visual kit, and crawler robot to apply various training projects. Moreover, there are many applications and training programs available.
Until now, DOBOT Magician has been used successfully in many institutions such as Tsinghua University, Shandong University, Sydney University of Technology and many more. Enterprises such as Volkswagen, Alibaba, Tencent have established cooperation with DOBOT Magician.
With good performance in both hardware and application design, DOBOT Magician won the CES 2018 Innovation Award, iF DESIGN AWARD 2018, Red Dot Design Award 2018 and 2017 Red Star Design Award.
Specification:
| Number of axes | 4 |
|---|---|
| Payload | 500g |
| Max. range | 320mm |
| Repeatability of position (control) | 0.2 mm |
| Communication | USB / WIFI / Bluetooth |
| Power supply | 100 V - 240 V , 50/60 HZ |
| power input | 12 V / 6.5A DC |
| Consumption | 60W Max |
| Working temperature | -10°C - 60°C |
| Axes | Range | Max. speed (load 250g) |
|---|---|---|
| Base | -90° do + 90° | 320° / s |
| Rear arm | 0° do +85° | 320° / s |
| Forearm | -10° do +95° | 320° / s |
| Rotary servo | -90° do +90° | 480° / s |
| Net weight | 3.4KG |
|---|---|
| Gross weight (Standard version) | 7.2KG |
| Gross weight (educational version) | 8.0KG |
| Base dimensions | 158mm × 158mm |
| Material | 6061 aluminum alloy, ABS plastic |
| Controller | Integrated controller Dobota |
| Robot mount | Desktop |
| Package size | 380mm x 385mm x 480mm |
| Package size for the standard version | 380mm x 385mm x 480mm |
| Package size for the education version | 380mm x 385mm x 480mm |
| Software | DobotStudio, Repetier Host, GrblController3.6, DobotBlockly |
|---|---|
| SDK (Software Develop Kit) | Communication protocol, Dobot software library |
| Expandable I / O interfaces |
|
| 3D Printer Kit | Maximum print size | 150 mm ×150 mm × 150mm |
|---|---|---|
| 3D printing material | PLA | |
| Resolution | 0.1mm | |
| Laser | Laser Power consumption | 500mw |
| Type | 405nm (blue laser) | |
| Power | 12V TTL triggering (with PWM driver) | |
| Pen holder | Pen diameter | 10mm |
| Vacuum nozzle | Suction cup diameter | 20mm |
| Pressure | -35 Kpa | |
| Chwytak | Gripper Range | 27.5mm |
| Drive type | Pneumatic | |
| Force | 8N |
