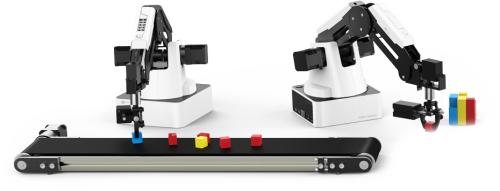

Robot Magician Lite
Robot Magician Lite
0
product unavailable
Description
DOBOT Magician Lite, a multifunctional lightweight intelligent robotic arm. One of the core products in the DOBOT K12 customized AI education ecosystem. Magician Lite robot uses multiple methods of software and hardware interaction and extension interfaces to maximize student creative freedom. Through building and playing, students can learn how artificial intelligence and mechanic work. They will also be introduced to the world of basic knowledge of robotics and how to use it in the real world.
Excellent performance and safety
Magician Lite is compact unit and weighs only 2.4 kg. This makes it portable and easy to build an app. Its positioning repeatability is 0.2 mm, load capacity is 0.25 kg, and the radius range is 340 mm. Supports soft gripper, suction cup, pen gripper and other removable ending tools. The robot has a collision detection function, so that children can be safely around.
Magic Box for Endless Possibilities
Magician Lite comes with an external controller called "Magic Box" that separates the motion control algorithm and the user's tasks for a more convenient programming and creation. The robot supports Bluetooth connection. 12 expansion interfaces ensure maximum openness and compatibility.

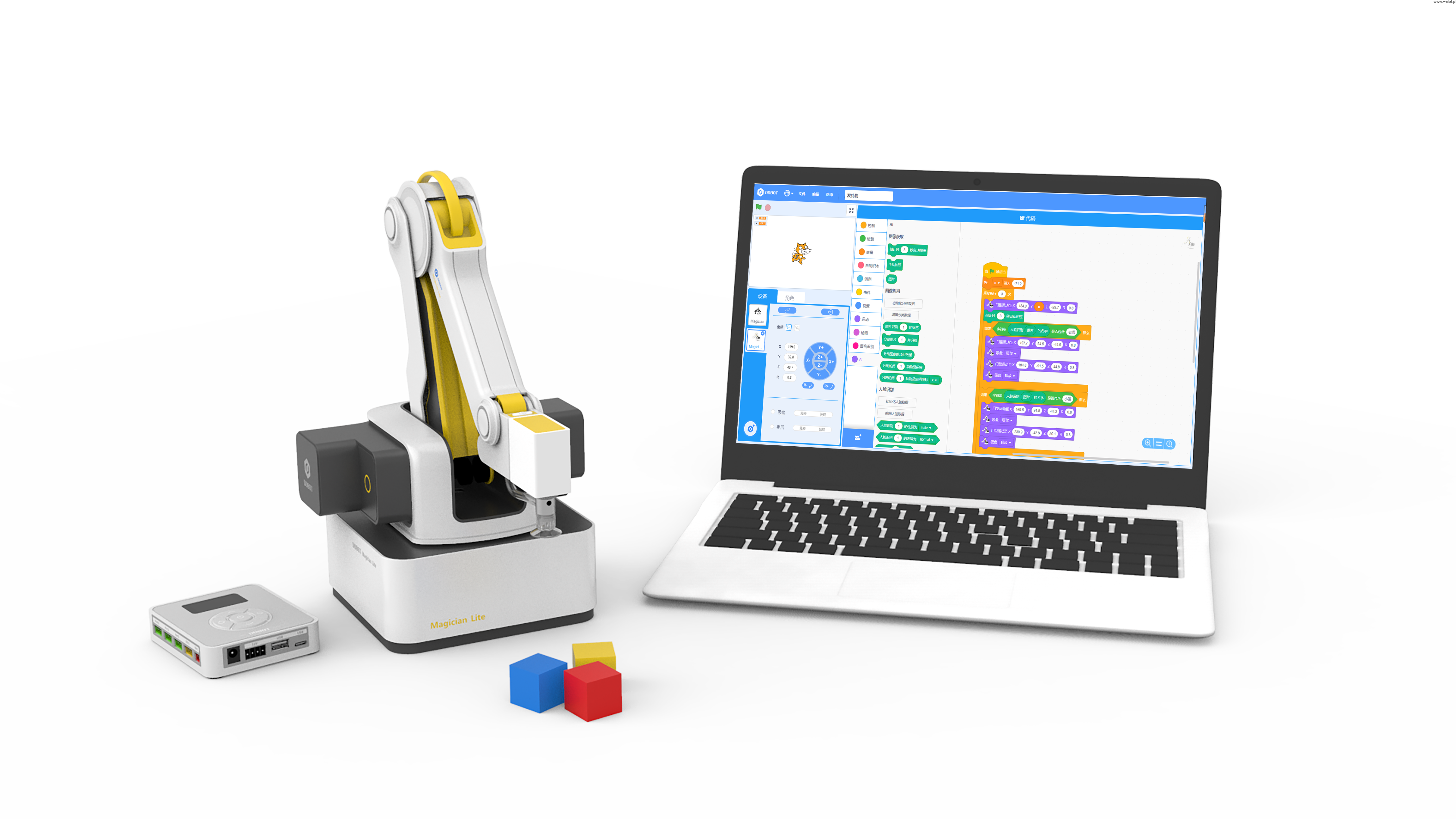

Graphic programming
With the new DobotBlock software platform, students can program, create games and animations by simply dragging and dropping the coding blocks to control each robot movement and learn how AI works while exploring technology and having fun.
Project-based learning for all ages
Magician Lite includes a complete learning system that is divided into three stages, from beginner to advanced level. The curriculum offers a variety of teaching presentations that focus on experiential, project-based, and exploratory learning. By participating in the DOBOT robotic competition, students not only test their knowledge, but also improve their comprehensive, engineering, and innovative skills.
Specification:
| Degree of freedom | 4 |
| Maximum load capacity | 250g |
| Maximum range | 340mm |
| Repeatability | ±0.2mm |
| Voltage | 100V-240V AC,50/60 Hz |
| Power input | 12V ～ 5A DC |
| Working environment | -5°C～45°C |
| Power | 60W Max |
| Communication | Virtual USB serial port / serial port |
| Software | DobotStudio/DobotBlock |
| Weight | 2.4KG |
| Rear arm / forearm | 150mm |
| Base size | 146mm×146mm |
Magic Box:
| MCU | ARM 32-bit Cortex-M4 |
| Main frequency | 168 MHz |
| Voltage | 100V-240V AC,50/60 Hz |
| Power input | 12V ～ 5A DC |
| Working environment | -5°C～45°C |
| Power | 60W Max |
| Communication | Virtual USB / Serial / Bluetooth serial port |
| Programming language | MicroPython |
| Software | DobotStudio/DobotBlock |
| Weight | 98g |
| Size | 95mm×80mm×21.5mm |
Axis Movement:
| Axis 1 – Base | -135° to +135° |
| Axis 2 - Rear arm | -5° to +80° |
| Axis 3 – Forearm | -10° to +85° |
| Axis 4 - End Tools | -145° to +145° |
Ending Tools:
| Pen holder | Pen diameter: 8-12 mm |
| Suction cup | The built-in air pump drive operates under negative pressure, with a 20mm diameter suction cup |
| Soft gripper | Built-in air pump drive operates under positive and negative pressure, with a maximum opening and closing distance of 50mm |
Expansion interface:
| Power interface | ×2 | 4PIN, 12V～3A DC |
| Multifunctional communication interface | ×2 | 10PIN, Serial communication interface |
| I/O Interface | ×6 | Green Terminal, 4PIN, 3.3V / 5V-IO, 5V 1A-VCC, multi-functional multiplexing interface, user defined I / O, AD, PWM output, I2C, etc. |
| Stepper motor interface | ×2 | Yellow Terminal, 4PIN, 2-phase stepper motor, 16 divisions, 12V 1A |
| Power Interface 12V | ×2 | Red Terminal, 2PIN, 12V, 3A Max |
