Robot CR3
Robot CR3
Availability:
out of stock
Vendor:
DOBOT
Product code:
5904169421056
Kod EAN:
5904169421056
Rating:
0
0
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€13,539.81
excl. 23% TAX, excl. shipping costs
product unavailable
Description

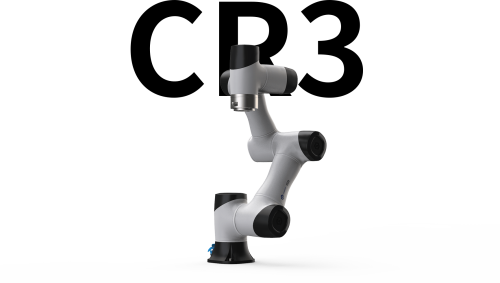

Robot CR3
Specification:
- Name: DOBOT CR3
- Weight: 16,5kg
- Maximum load capacity: 3kg
- Maximum range: 795mm
- Voltage rating: DC48V
- Maximum TCP speed: 2m/s
- Connection range:
- j1: ±360°
- j2: ±360°
- j3: ±155°
- j4: ±360°
- j5: ±360°
- j6: ±360°
- Maximum connection speed:
- J1/J2: 180°/s
- J3/J4/J5/J6: 180°/s
- End effector I/O interface:
- DI/DO/AI: 2
- AO: 0
- Communication interface:
- Communication: RS485
- I/O controller:
- DI: 16
- DO/DI: 16
- AI/AO: 2
- Incremental encoder ABZ: 1
- Repeatability: ±0.02mm
- Communication: TCP/IP, Modbus, EtherCAT,WIFI
- IP class: IP54
- Temperature: 0~45°
- Power: 120W
- Material: Aluminium alloy, ABS plastic
