Nema 23 Bipolar 3Nm (425oz.in) 3.5A 57x57x114mm 4 Wires CNC Stepper Motor
product unavailable
Description

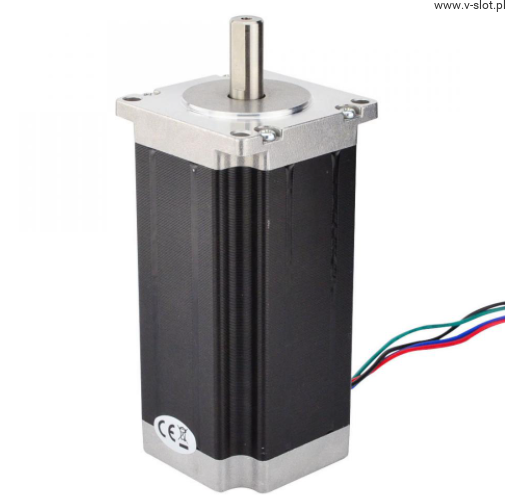

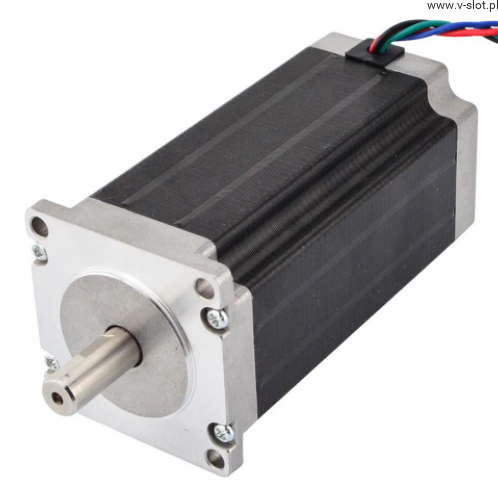

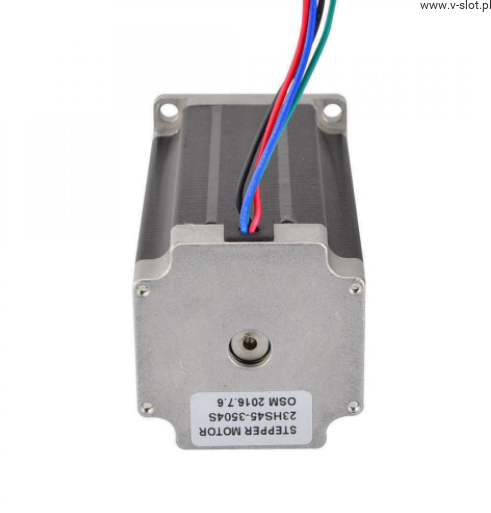

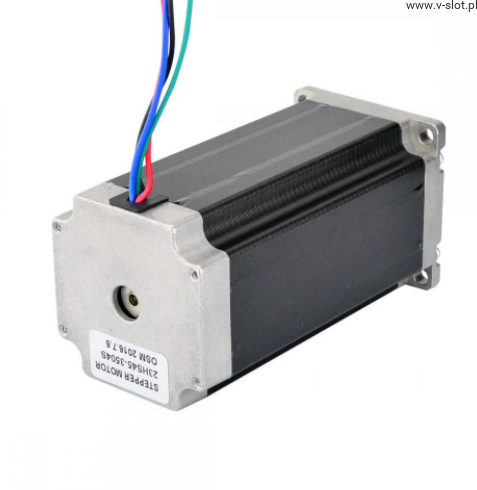

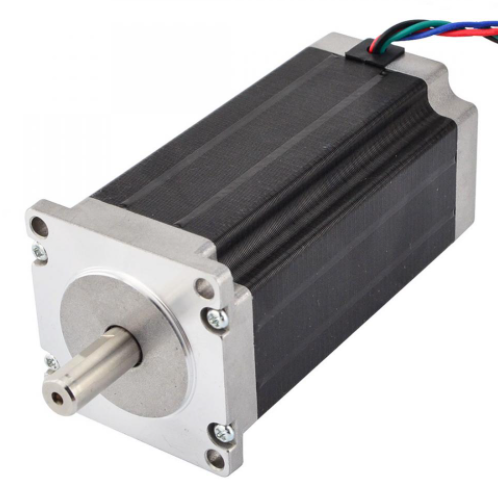

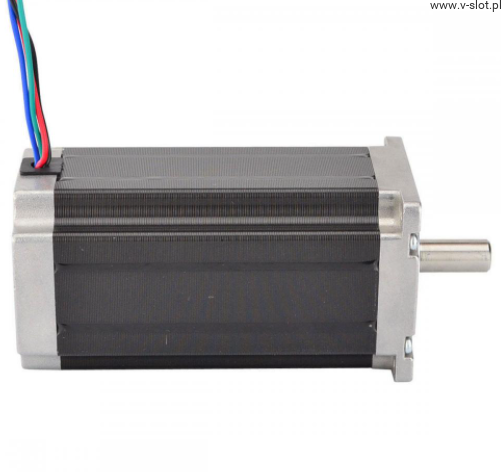

Nema 23 Bipolar 3Nm (425oz.in) 3.5A 57x57x114mm 4 Wires CNC Stepper Motor
This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x114mm. It has 4 wires, each phase draws 3.5A, with holding torque 3.0Nm (425oz.in).
Electrical Specification:
- Manufacturer Part Number: 23HS45-3504S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 3.0Nm(425oz.in)
- Rated Current/phase: 3.5A
- Voltage: 4.2V
- Phase Resistance: 1.2ohms
- Inductance: 5.0mH ± 20%(1KHz)
Physical Specification:
- Frame Size: 57 x 57mm
- Body Length: 113mm
- Shaft Diameter: Φ10mm
- Shaft Length: 24mm
- D-cut Length: 20mm
- Number of Leads: 4
- Lead Length: 400mm
- Weight: 1.8kg
Connection:
