Nema 23 Bipolar 1.8deg 2.4Nm (340oz.in) 1.8A 4.95V 57x57x104mm 4 Wires

Nema 23 dwubiegunowy 1,8 ° 2,4 Nm (340 uncji) 1,8 A 4,95 V 57 x 57 x 104 mm 4 przewody

Nema 23 Bipolar 1.8deg 2.4Nm (340oz.in) 1.8A 4.95V 57x57x104mm 4 Wires

Availability: A lot Dispatched within: 10 working days
Product code: 23HS41-1804SEN
Rating: 0
Price: €54.90 54.90
Gross price
incl. 23% TAX, excl. shipping costs
Net price: €44.63
excl. 23% TAX, excl. shipping costs
quantity szt.

product unavailable

Description

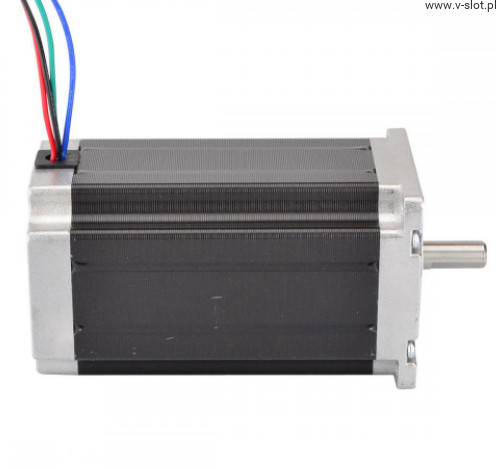

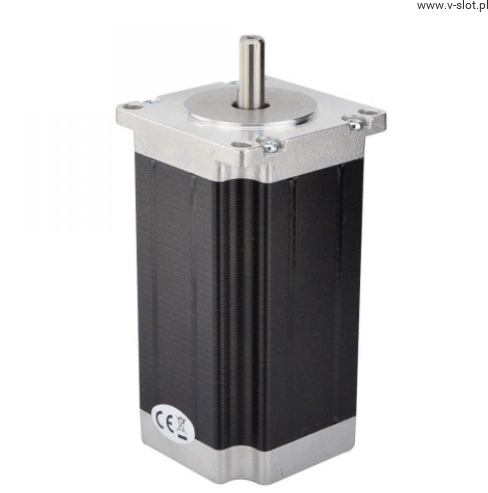

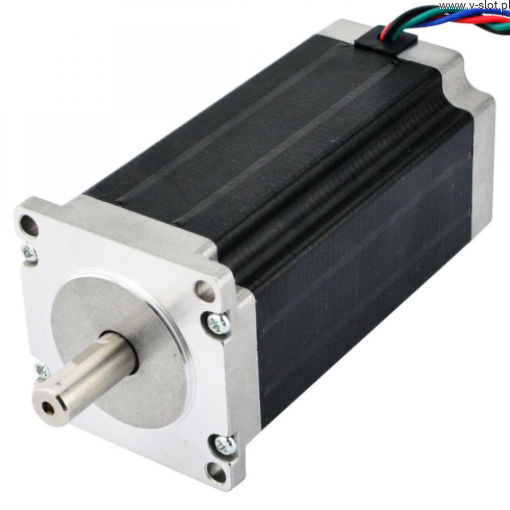

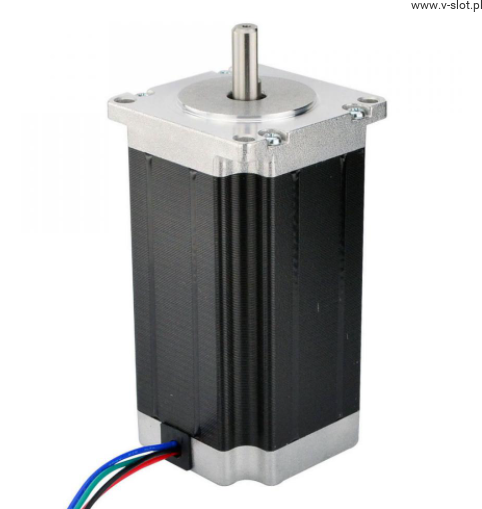

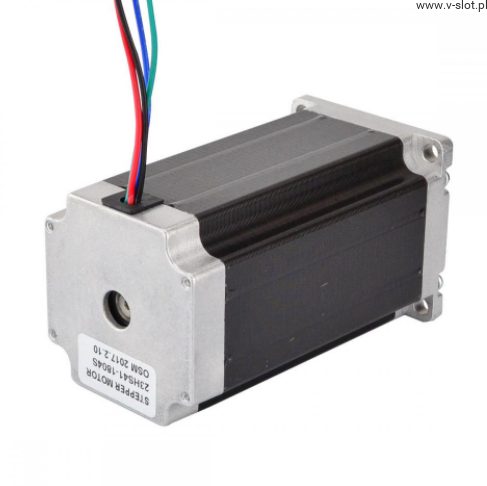

Nema 23 Bipolar 1.8deg 2.4Nm (340oz.in) 1.8A 4.95V 57x57x104mm 4 Wires



This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x104mm. It has 4 wires, each phase draws 1.8A, with holding torque 2.4Nm (340oz.in).



Electrical Specification:

  • Manufacturer Part Number: 23HS41-1804S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 2.4Nm(340oz.in)
  • Rated Current/phase: 1.8A
  • Voltage: 4.95V
  • Phase Resistance: 2.75ohms
  • Inductance: 12mH ± 20%(1KHz)



Physical Specification:

  • Frame Size: 57 x 57mm
  • Body Length: 104mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 20.6mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.5kg



Connection:
