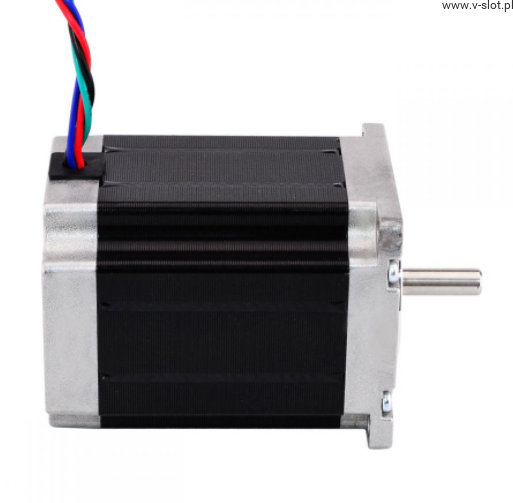

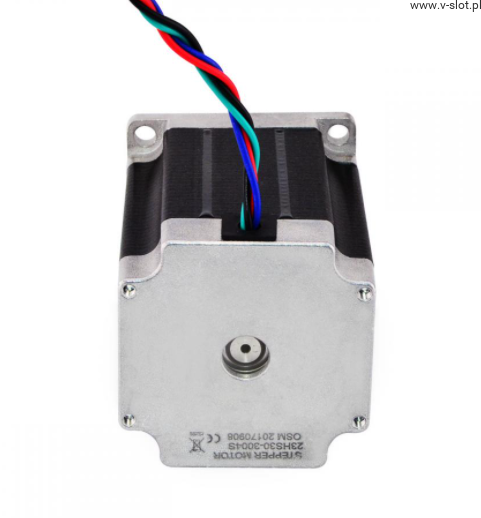

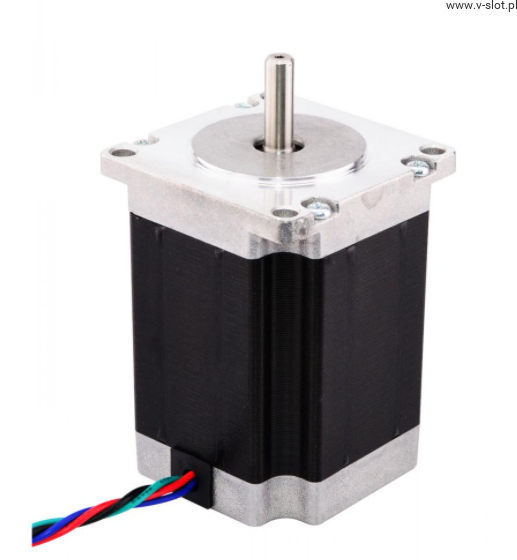

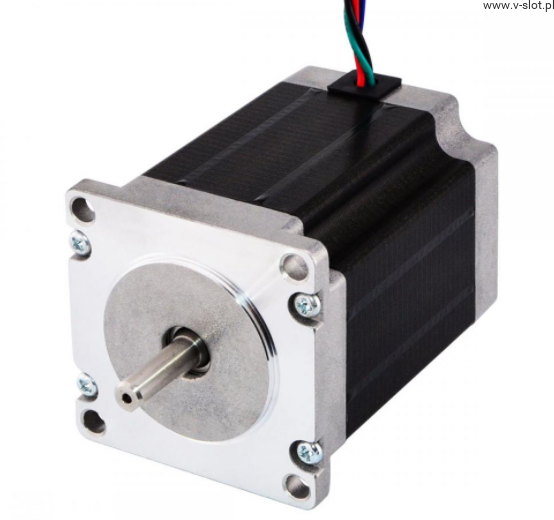

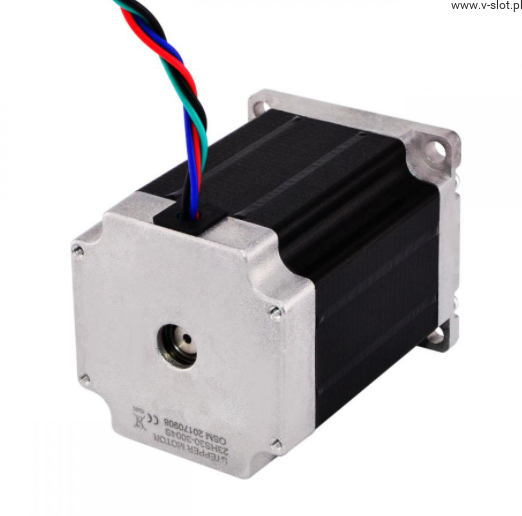

Nema 23 Bipolar 1.8deg 1.9Nm (269oz.in) 3A 3.36V 57x57x76mm 4 Wires
Nema 23 Bipolar 1.8deg 1.9Nm (269oz.in) 3A 3.36V 57x57x76mm 4 Wires
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€73.41
excl. 23% TAX, excl. shipping costs
product unavailable
Description
Nema 23 dwubiegunowy 1,8 ° 1,9 Nm (269oz.in) 3A 3,36 V 57 x 57 x 76 mm 4 przewody
This is one of the most popular Nema 23 stepper motor, it with step angle 1.8deg and size 57x57x76mm. It has 4 wires, each phase draws 3A, with holding torque 1.9Nm (269oz.in).
Electrical Specification:
- Manufacturer Part Number: 23HS30-3004S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 1.9Nm(269oz.in)
- Rated Current/phase: 3A
- Voltage: 3.36V
- Phase Resistance: 1.12ohms
- Inductance: 4.8mH ± 20%(1KHz)
Physical Specification:
- Frame Size: 57 x 57mm
- Body Length: 76mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.2kg
Connection:
