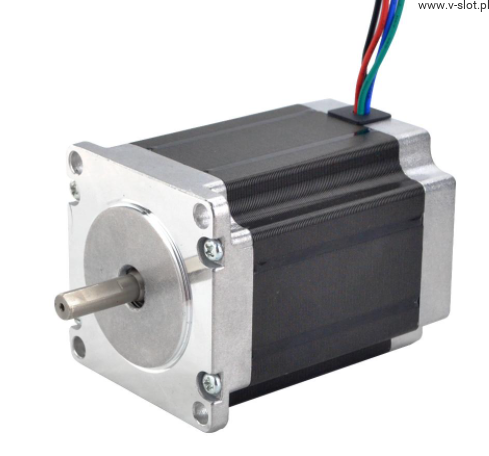

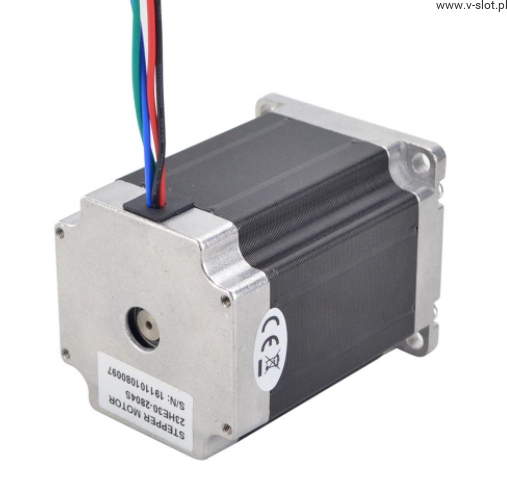

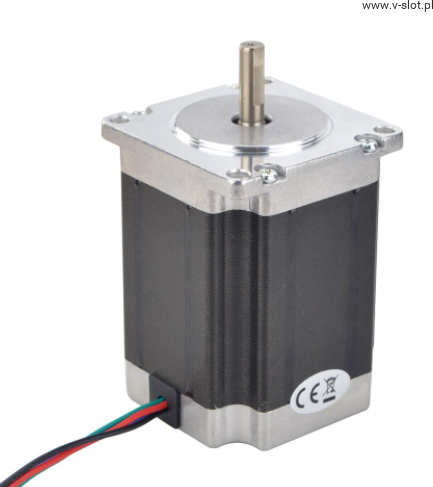

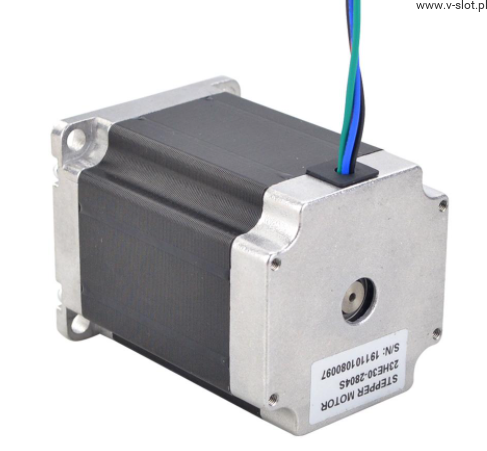

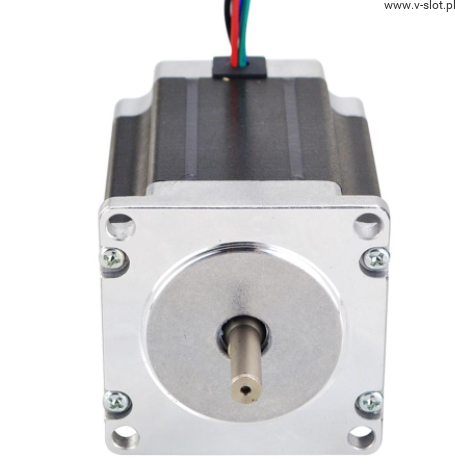

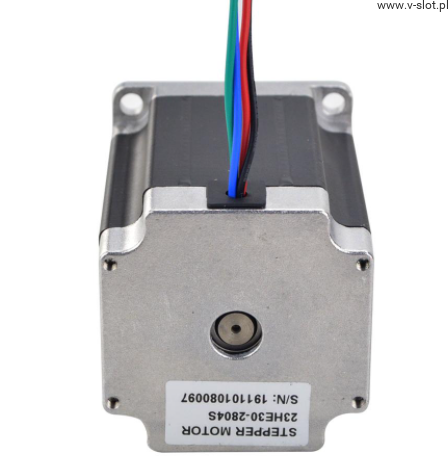

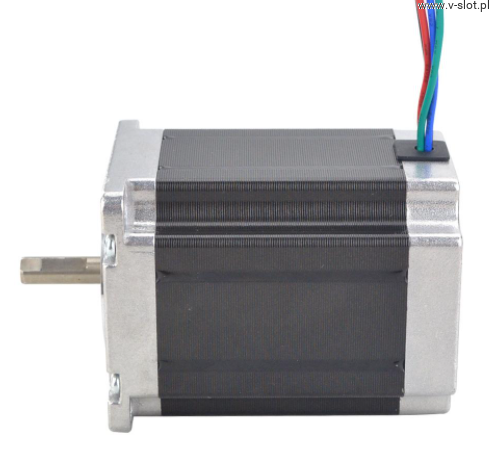

E Series Nema 23 Bipolar 1.8deg 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires
E Series Nema 23 Bipolar 1.8deg 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€48.23
excl. 23% TAX, excl. shipping costs
product unavailable
Description
E Series Nema 23 Bipolar 1.8deg 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires
Electrical Specification:
- Manufacturer Part Number: 23HE30-2804S
- Number Of Phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 1.9 Nm(269oz.in)
- Rated Current/phase: 2.8 A
- Phase Resistance: 1.13 ohms± 10%
- Inductance: 5.4 mH ± 20%(1KHz)
Physical Specification:
- Frame Size: 57 x 57 mm
- Body Length: 76 mm
- Shaft Diameter: Φ6.35 mm
- Shaft Length: 21 mm
- D-CUT Shaft Length: 15 mm
- Number of Leads: 4
- Lead Length: 500 mm
- Weight: 1.2 kg
Connection:
