Dual Shaft Nema 23 Bipolar 1.26Nm (178.4oz.in) 2.8A 2.5V 57x57x56mm 4 Wires

Dwuwałowy Nema 23 dwubiegunowy 1,26 Nm (178,4oz.in) 2,8 A 2,5 V 57 x 57 x 56 mm 4 przewody

Dual Shaft Nema 23 Bipolar 1.26Nm (178.4oz.in) 2.8A 2.5V 57x57x56mm 4 Wires

Availability: A lot Dispatched within: 14 working days
Product code: 23HS22-2804DEN
Rating: 0
Price: €57.33 57.33
Gross price
incl. 23% TAX, excl. shipping costs
Net price: €46.61
excl. 23% TAX, excl. shipping costs
quantity szt.

product unavailable

Description

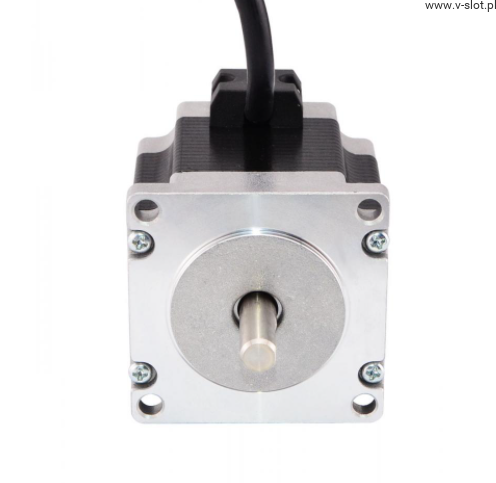

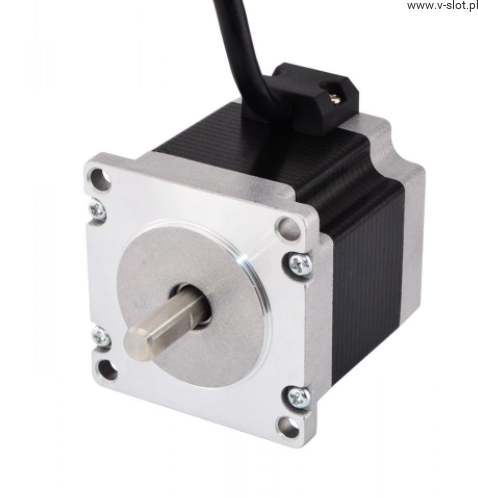

Dual Shaft Nema 23 Bipolar 1.26Nm (178.4oz.in) 2.8A 2.5V 57x57x56mm 4 Wires

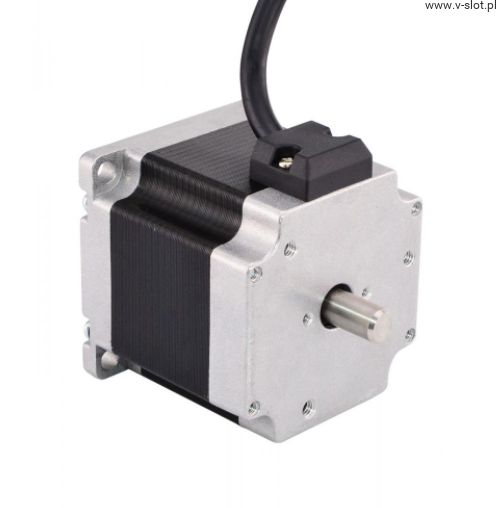

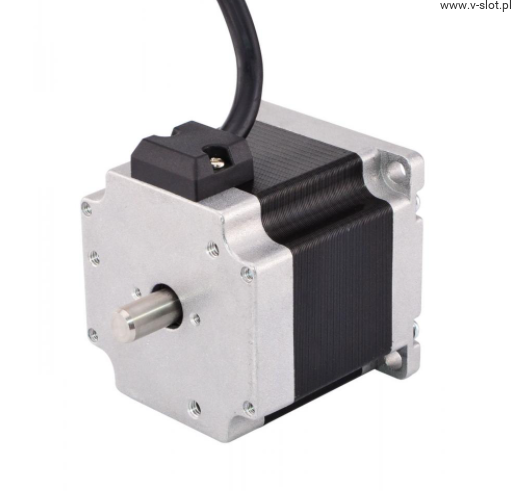

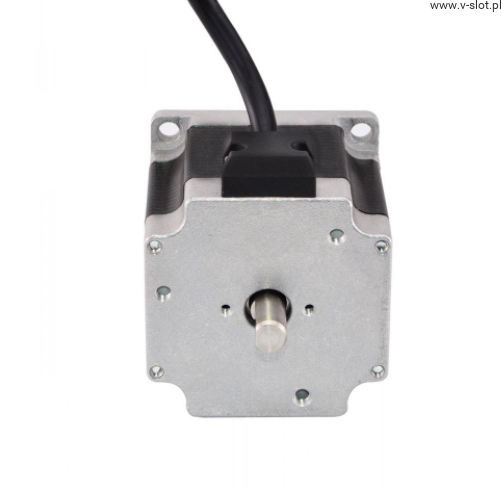

This is a dual-shaft motor with a 13.5mm long rear shaft, and the shaft diameter is 8mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.



Electrical Specification:

  • Manufacturer Part Number: 23HS22-2804D
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 1.26Nm(178.4oz.in)
  • Rated Current/phase: 2.8A
  • Voltage: 2.5V
  • Phase Resistance: 0.9ohms
  • Inductance: 2.5mH ± 20%(1KHz)



Physical Specification:

  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-Cut Length: 15mm
  • Rear Shaft Length: 13.5mm
  • Rear Shaft Diameter: Φ8mm
  • Number of Leads: 4
  • Lead Length: 500mm



Connection:
