Conveyor belt kit
Conveyor belt kit
0
product unavailable
Description
The simplest mini production line

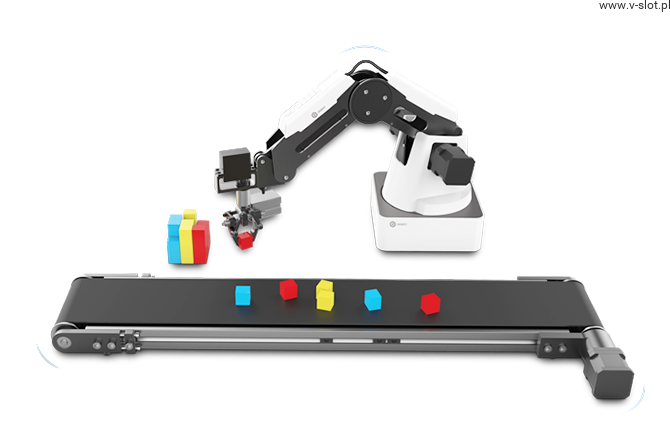

Conveyor kit for DOBOT Magician allows you to have a complete simulated production line. The powerful and programmable DOBOT Magician robot, in combination with a belt conveyor with adjustable speed, distance and color sensor, is an ideal and perfect tool for creating a highly efficient simulated production line and even for use in real factory application scenarios.
Conveyor belt
The mini conveyor belt is a great component to build an automation process with your robot.
Photoelectric switch
Detect if there are objects in front of the photo switch.
Color sensor
Easy-to-use color sensor to categorize red, blue, and green objects.
Foam blocks
These colorful foam blocks are easy to grab, carry and stack. This is a perfect material to master the automation process.
Specification:
Conveyor belt:
| Load capacity | 500 g |
|---|---|
| Effective delivery distance | 600 mm |
| Maximum speed | 120 mm/s |
| Maximum acceleration | 1100 mm/s² |
| Net weight | 4.2 kg |
| Weight (incl. packaging) | 5.34 kg |
| Dimensions | 700 mm × 215 mm × 60 mm |
Distance measurement sensor:
| Measuring range | 20 ~ 150 mm |
|---|---|
| Signal | l Analog output |
| Input | 4.5 - 5.5 V |
Color recognition sensor:
| Input | 3~5 V |
|---|---|
| Detectability | non-luminous object |
| Built-in white LED with the ability to control on / off |
