Nema 23 Bipolar 0.9deg 1.26Nm (178.4oz.in) 2.8A 2.5V 57x57x56mm 4 Wires
product unavailable
Description

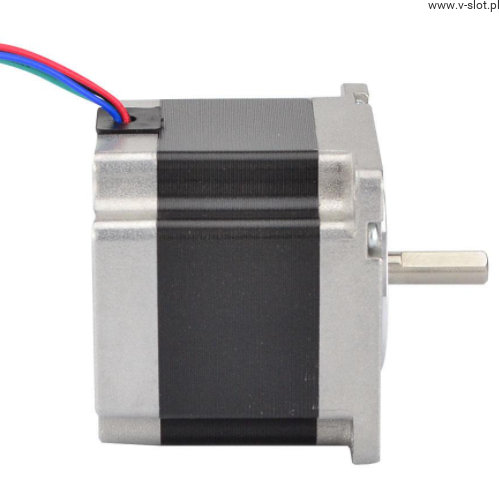

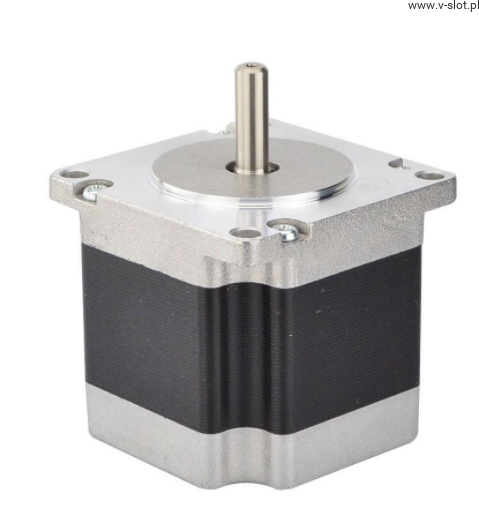

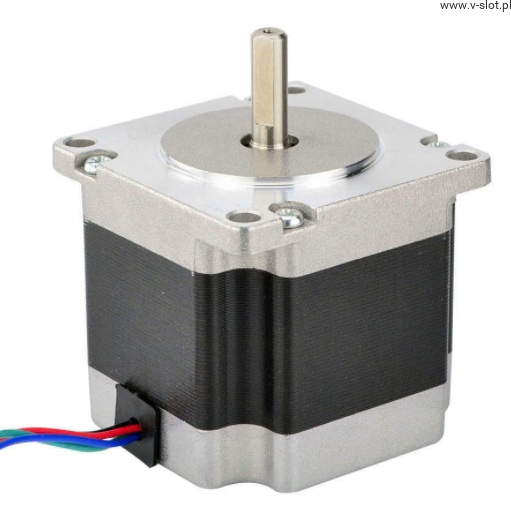

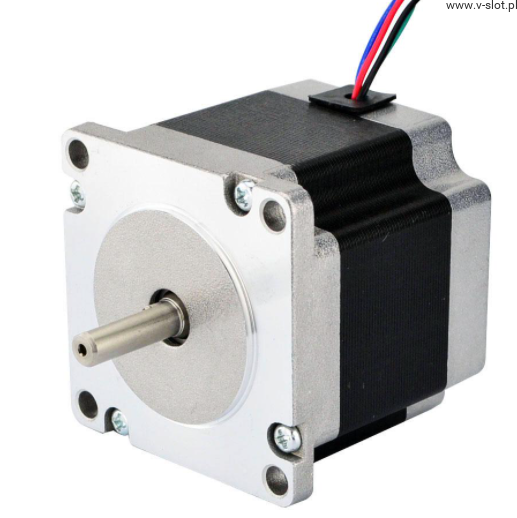

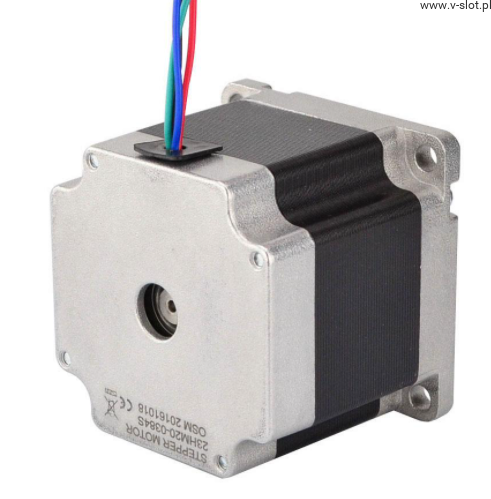

Nema 23 Bipolar 0.9deg 1.26Nm (178.4oz.in) 2.8A 2.5V 57x57x56mm 4 Wires
This bipolar Nema 23 stepper motor with step angle 0.9deg and size 57x57x56mm. It has 4 wires, each phase draws 2.8A, with holding torque 1.26Nm (178.4oz.in).
Electrical Specification:
- Manufacturer Part Number: 23HM22-2804S
- Motor Type: Bipolar Stepper
- Step Angle: 0.9 deg
- Holding Torque: 1.26Nm(178.4oz.in)
- Rated Current/phase: 2.8A
- Voltage: 2.5V
- Phase Resistance: 0.9ohms
- Inductance: 4.5mH ± 20%(1KHz)
Physical Specification:
- Frame Size: 57 x 57mm
- Body Length: 56mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 700g
Connection:
