Threaded Rod Plate for Nema 23 Stepper Motor
Threaded Rod Plate for Nema 23 Stepper Motor
0
product unavailable
Description

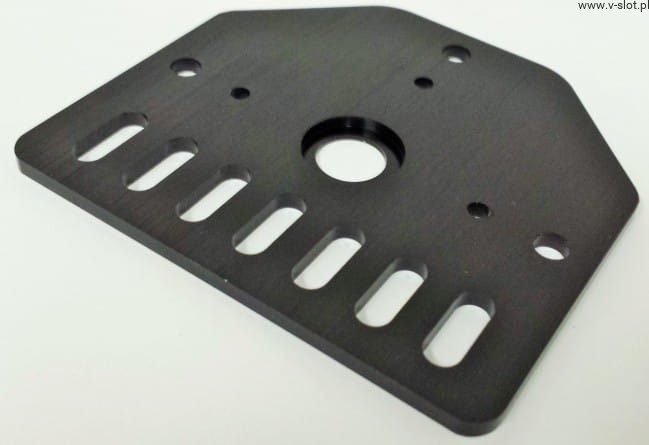

Threaded Rod Plate for Nema 23 Stepper Motor

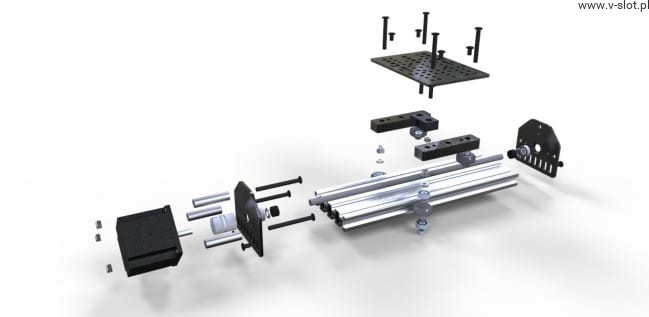

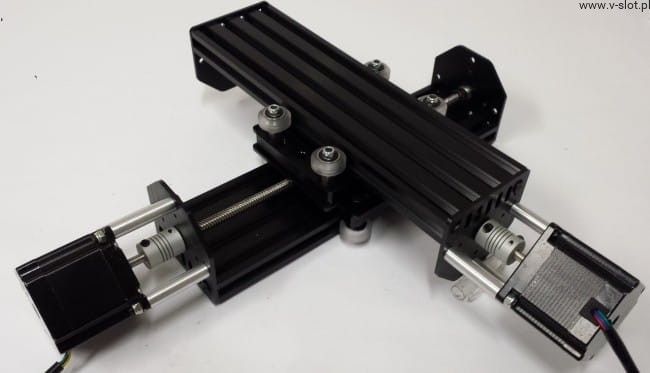

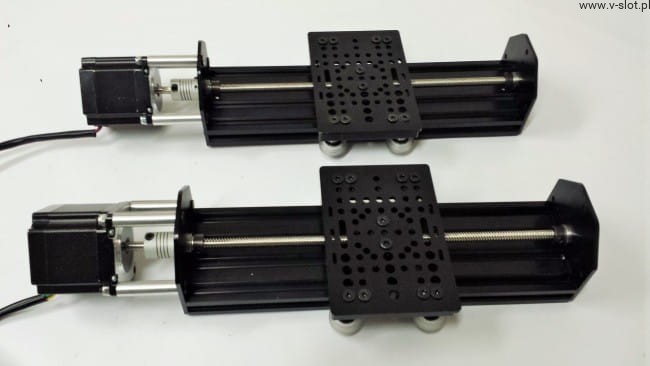

This type of plate allows the installation of Nema 23 stepper motors and the use of threaded screws. Ideally suited for use with V-Slot and OpenRail profiles. Versatile and very fast assembly enables many different applications.
This project was inspired by Shapeoko on shapeoko.com

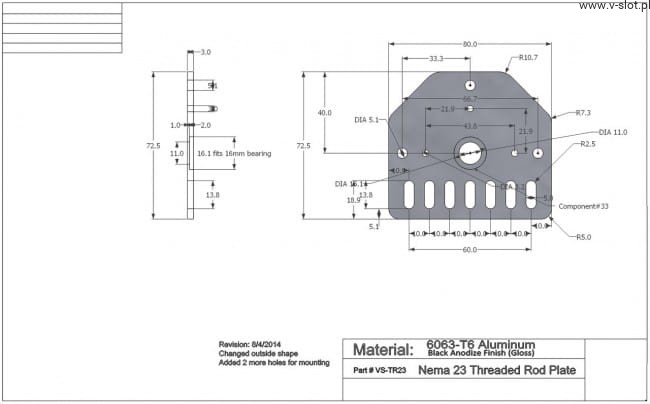

Product specification:
- Size: 80 x 72mm
- Thickness: 3mm
- Material: 6063 - T6
- Aluminum Finish: Brushed and Anodized
- Color: Black
