Linear Actuator End Mount
Linear Actuator End Mount
0
product unavailable
Description

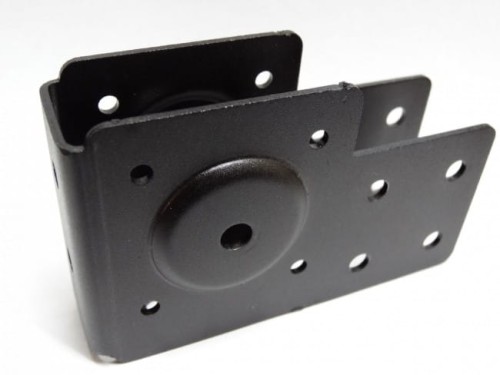

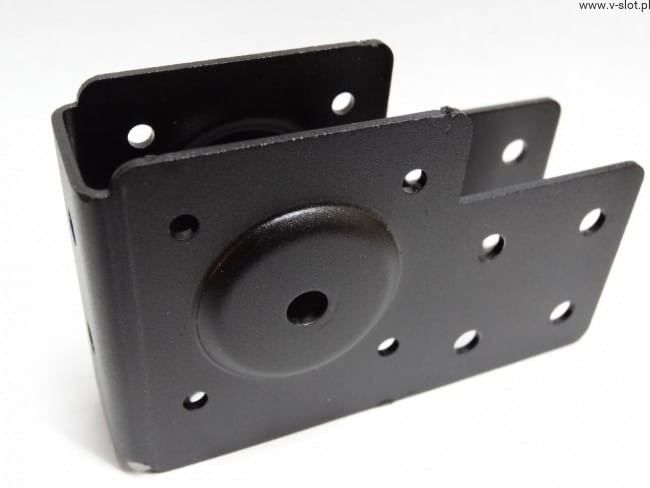

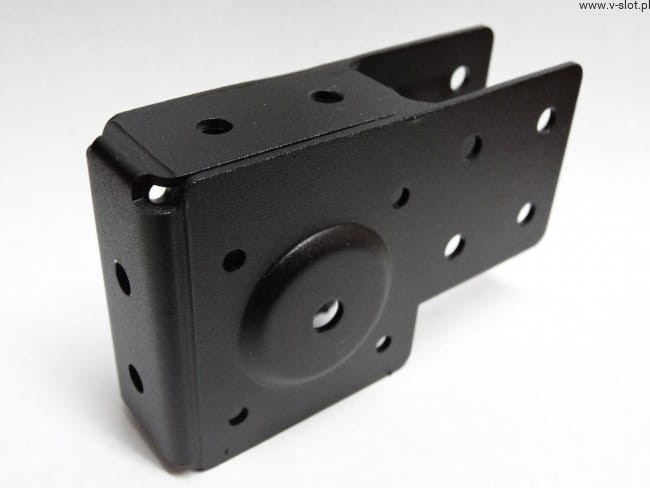

Openbuilds Linear Actuator End Mount

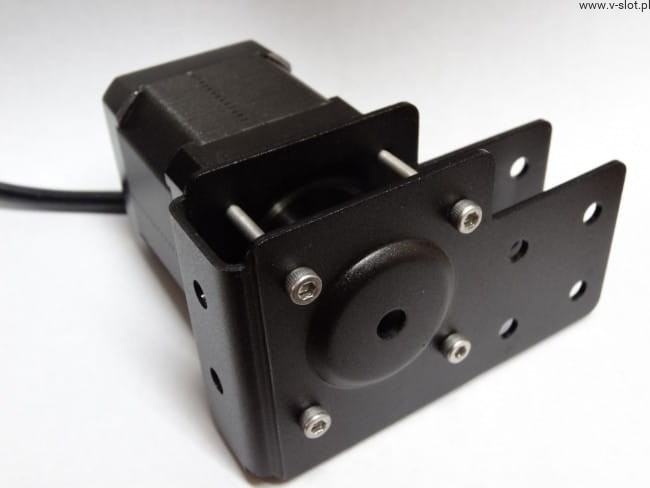

Modular endings for V-Slot profiles for fixing tension rollers and/or Nema 17 motors. In combination with V-Slot profiles, the Linear Actuator End Mount element, toothed belt and tension pulley, we simply create a system for linear motion.

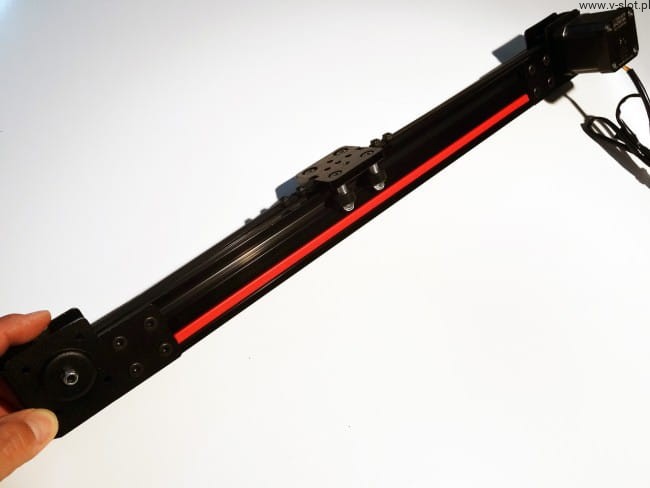

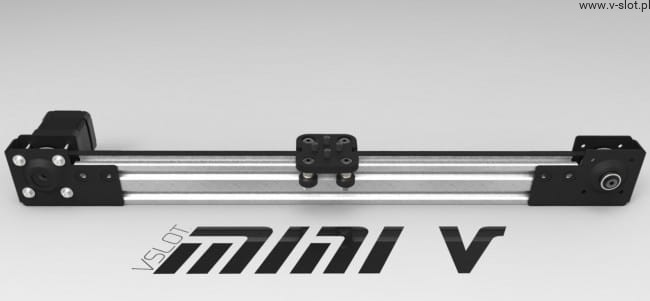

This modular concept allows you to create many different machine designs. See sample photos to understand how these end fittings can be combined with Mini V and many other products. The mounting holes for the end pieces are 20 mm apart, which allows for easy connection to the Mini V-Plate and V-Slot profile.
Use with a double nut for quick and easy assembly.
If you need a linear construction with a belt drive that can be adapted to custom lengths, these end fittings are ideal for your project.

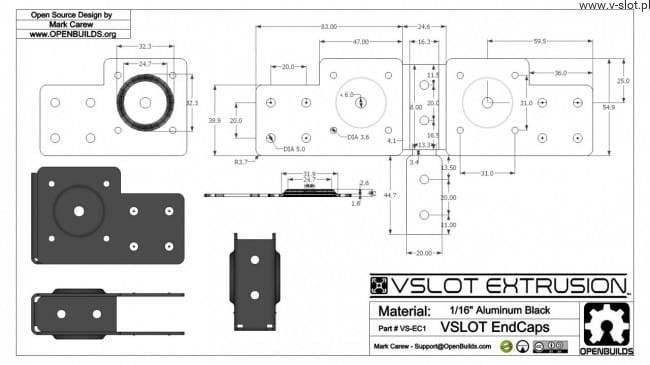

Product Specifications
- Size: 85 x 55mm
- Thickness: 1.7mm
- Material: Aluminum
- Finish: Brushed and Anodized
- Color: Black
Mounting elements such as screws and washers are not included in the product.
